Fitting a new external PIR floodlight

[strontium99]

Hi there,

I’m after a little advice please.
I need to replace an existing external light with something with a bit more power. The existing light has a motion detector sensor but also has an internal light switch (IE within the house) that switches it between sensor only and on permanently.

I’ve brought a new 500W “Blake” floodlight with PIR sensor from Focus, but I’m not too sure about the wiring.

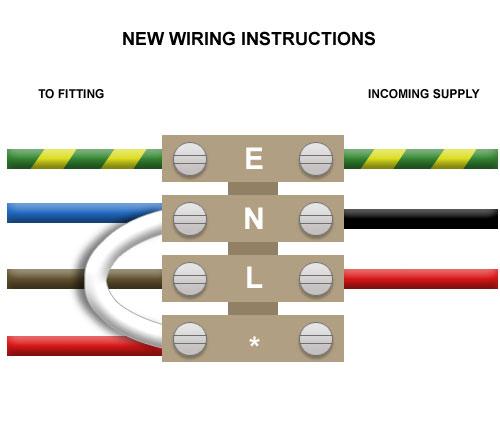

I’ve uploaded 2 diagrams, one of the existing wiring and one on how the instructions say the new floodlight should be wired.

As you’ll see on the existing wiring:

Incoming Earth (Green and Yellow) connects to nothing.

Incoming Neutral (Black) connects to 2 blue wires.
Incoming Live (Red) connects to 1 brown wire.

And Incoming * (which I presume is the switch, Red) connects to 2 red wires.

But on the new instructions:

Incoming Earth (Green and Yellow) connects to a green and yellow earth wire..... this bit I can understand

Incoming Neutral (Black) connects to a single blue wire.

Incoming Live (Red) connects to a single brown wire.

And there shouldn’t be an incoming red into the *, but there is a single red leading out and a white loop between the outgoing * and Neutral terminals.

The instructions not to put any incoming supply to the * terminal.

Can anybody help me with this puzzle please?

I would be most grateful for any advice.

Big thanks,
@

Untitled

• strontium99
• 4 Jan 2009
• 1

Untitled

• strontium99
• 4 Jan 2009
• 1



[sueby]

Hi you will need to disconnect the permanent live out of the light switch and out of the existing light this is the last one on your diagram. Make sure you put the power off first. Once you have done this you will be left with a live, Neutral & Earth these get wired as per the new light diagram. Your switch will still work your light the only difference will be if you want it on perm. you switch the light switch off & on quickly and the light will stay on for 12 hrs (see instructions with the light!)

I hope this helps.



[strontium99]

Big thanks for the advice.
I'll give it a go.

@
