How to change a shower pull cord switch??

Discussion in 'Electrics UK' started by stevebosh, 24 Sep 2007.

  1. stevebosh

    Joined:
    24 Sep 2007
    Messages:
    9
    Thanks Received:
    0
    Location:
    Pembrokeshire
    Country:
    United Kingdom
    Hi,
    I need some help please!!??

    I have removed a pull cord switch with two Live cables, two Neutral and two Earth. The old switch also has load on one side and feed on the other. The new switch I bought only has mains on one side so I just want to make sure if the mains side is the feed or load?

    In case you are wondering i had to change the switch because the cord snapped inside the switch which cannot be fixed.

    Thank you very much,
    Steve

  2. RF Lighting

    Joined:
    31 Mar 2006
    Messages:
    18,363
    Thanks Received:
    1,107
    Location:
    Leeds
    Country:
    United Kingdom
    Does it just say mains, or mains in / mains out?

    It is unusual for only one side of the switch t be labelled.

  3. Steve

    Joined:
    15 Apr 2005
    Messages:
    16,004
    Thanks Received:
    226
    Location:
    Yorkshire
    Country:
    United Kingdom
    WHAT???? That wasnt very clear.

    Your old switch, what terminals did it have?

    Your new switch, what terminals does it have?

    The wires you have - were all of the lives and "neutrals" connected to the switch? If so in what configuration?

  4. stevebosh

    Joined:
    24 Sep 2007
    Messages:
    9
    Thanks Received:
    0
    Location:
    Pembrokeshire
    Country:
    United Kingdom
    Just has Mains on one side. Both switches are exactly the same other than the labels

  5. RF Lighting

    Joined:
    31 Mar 2006
    Messages:
    18,363
    Thanks Received:
    1,107
    Location:
    Leeds
    Country:
    United Kingdom
    I would reckon that mains is feed, and the non marked side is load.

    Are there markings to distinguish L & N terminals?

  6. stevebosh

    Joined:
    24 Sep 2007
    Messages:
    9
    Thanks Received:
    0
    Location:
    Pembrokeshire
    Country:
    United Kingdom
    thanks for a quick reply!! Yeah Two 'L' and two 'N' terminals are clear.
    Im gonna try and fit it now so I can have a shower in the morning!
    If i have it wrong would a fuse blow?

  7. RF Lighting

    Joined:
    31 Mar 2006
    Messages:
    18,363
    Thanks Received:
    1,107
    Location:
    Leeds
    Country:
    United Kingdom
    You really do not want to take that approach to wiring. You should make sure that you get things right, not rely on a blowng fuse to tell you its wrong.

  8. securespark

    Joined:
    11 Jan 2004
    Messages:
    25,798
    Thanks Received:
    484
    Location:
    Cheshire
    Country:
    United Kingdom
    Because sometimes the fuse may not blow....

  9. stevebosh

    Joined:
    24 Sep 2007
    Messages:
    9
    Thanks Received:
    0
    Location:
    Pembrokeshire
    Country:
    United Kingdom
    OK. I was just going to put the new switch in the same way as the old one but wasnt expecting different labels. Just to complicate things more the two earth terminals are on the mains side on the new switch. On the old one the earth terminals are either side

  10. securespark

    Joined:
    11 Jan 2004
    Messages:
    25,798
    Thanks Received:
    484
    Location:
    Cheshire
    Country:
    United Kingdom
    Can you post a picture?

  11. stevebosh

    Joined:
    24 Sep 2007
    Messages:
    9
    Thanks Received:
    0
    Location:
    Pembrokeshire
    Country:
    United Kingdom
    just taken some pictures but not sure how to upload?

  12. RF Lighting

    Joined:
    31 Mar 2006
    Messages:
    18,363
    Thanks Received:
    1,107
    Location:
    Leeds
    Country:
    United Kingdom
    Click on my signature to find out how :D

  13. stevebosh

    Joined:
    24 Sep 2007
    Messages:
    9
    Thanks Received:
    0
    Location:
    Pembrokeshire
    Country:
    United Kingdom

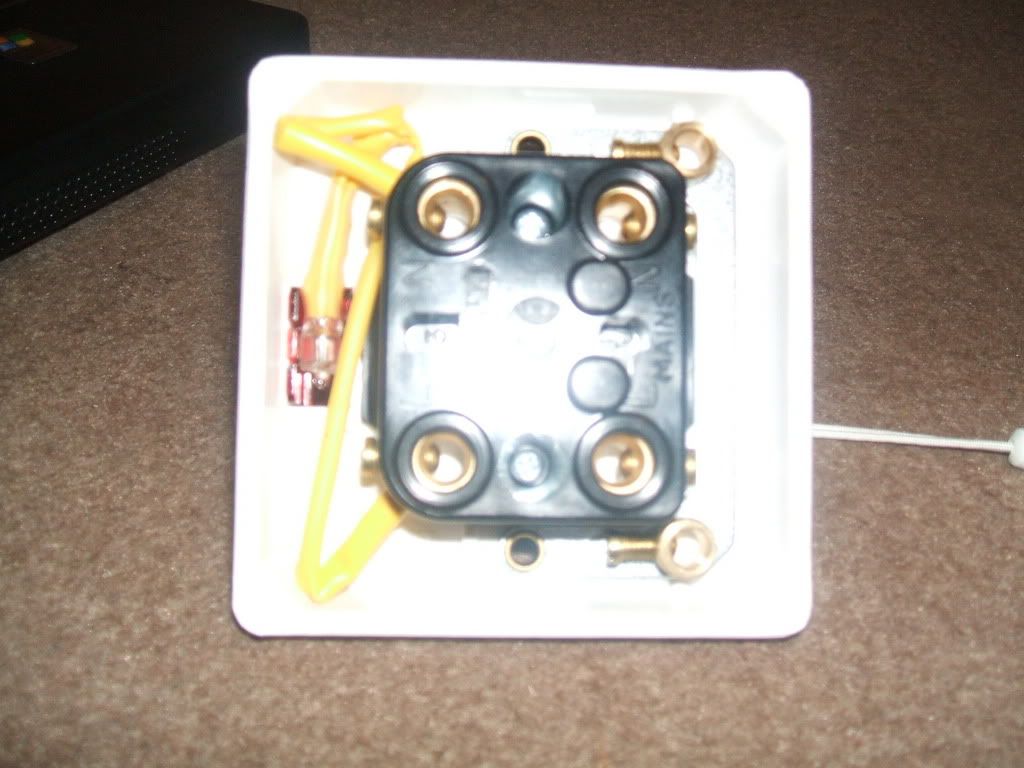

    [​IMG][/img]

    [​IMG][/img]

    first image is old one, second is new

  14. RF Lighting

    Joined:
    31 Mar 2006
    Messages:
    18,363
    Thanks Received:
    1,107
    Location:
    Leeds
    Country:
    United Kingdom
    'mains' is the supply (from the consumer unit)

    The other side is the load (to the shower)

  15. stevebosh

    Joined:
    24 Sep 2007
    Messages:
    9
    Thanks Received:
    0
    Location:
    Pembrokeshire
    Country:
    United Kingdom
    So mains is also feed? Does it matter which earth cables are connected to the terminals?
    Thanks for your help!!
