Wiring Centre for CH



Post new topic   Reply to topic    DIYnot.com Forum Index > Plumbing and Central Heating
Search this topic :: View previous topic :: View next topic
Author Message
Piltdown Man

from United Kingdom

Joined: 11 Mar 2004
Posts: 8
Location: United Kingdom

PostPosted: Sat Mar 13, 2004 8:41 pm Reply with quote

Does anybody have a schematic for wiring the following system to a 16 or a 12 contact wiring centre? I don't have a programmer just a plug in timer that works on the HW and CH simultaneously, I have an Ideal Mexico Slimline boiler, Honeywell cylinder stat, Drayton room stat, 3-way motorised valve and a Grundfos Selectra pump.
I'd appreciate a colour schematic or easy to follow wiring diagram, what I'm saying is it really does have to be an idiot's guide!! icon_confused.gif I'm having particular problems figuring out the wiring of the room stat and cylinder stat.
Many thanks for what ever help you can offer. icon_smile.gif
Back to top
 Alert Moderators

If you do not want to see this advert, click here to login or if you are new click here to join free.
breezer

from United Kingdom

Joined: 03 Jan 2003
Posts: 23328
Location: Sussex,
United Kingdom
Thanked: 27 times

PostPosted: Sat Mar 13, 2004 8:44 pm Reply with quote

you asked the SAME question before here you didn't understand the wiring then, you also agreed it was a good idea to get some one in, you said Yeah you're right!
Back to top
 Alert Moderators
oilman

from United Kingdom

Joined: 16 Sep 2003
Posts: 7965
Location: United Kingdom
Thanked: 26 times

PostPosted: Sun Mar 14, 2004 8:06 am Reply with quote

From your last post:
Quote:
I have been struggling for the best part of a fortnight to re-wire my central heating system to a new 16 Terminal Drayton LWC1 Wiring Centre, each time I think I've got the configuration of the wiring correct I plug the Central Heating back in, switch and immediately blow the plugs 3 amp fuse! Most times I don't even have to switch the plug socket on, it just blows!!


Don't bother, you look after people with mental problems, let people who look after heating do their bit.
Back to top
 Alert Moderators
Piltdown Man

from United Kingdom

Joined: 11 Mar 2004
Posts: 8
Location: United Kingdom

PostPosted: Sun Mar 14, 2004 5:36 pm Reply with quote

Hang on a minute! I thought this site was called "DIYnot"? Should it be renamed "DI Why? - when you can get somebody else to do it for you", or "DIY? - don't be silly you couldn't possibly do it, get a professional to do it for you". I thought the whole reason for this site was to access help and guidance with DIY projects?
I'm not totally niaive and stupid (as your reply would suggest) when it comes to electric wiring, I did a brief aprenticeship in electrical engineering many years ago. All I need is the information I requested to jog my memory and point me in the right direction, don't worry if I disappear in a puff of blue smoke and plunge my neighbourhood into darkness I won't hold you responsible!!
I'm sorry but your attitude stinks.
Back to top
 Alert Moderators
breezer

from United Kingdom

Joined: 03 Jan 2003
Posts: 23328
Location: Sussex,
United Kingdom
Thanked: 27 times

PostPosted: Sun Mar 14, 2004 5:44 pm Reply with quote

but you are the one who said in my case BIY = Botch It Yourself


some jobs are not for the diy person, this is one of them, just because you did not get the answer you wanted in the first place there is no need to throw your toys out of your pram
Back to top
 Alert Moderators
AlanE

from United Kingdom

Joined: 26 Feb 2004
Posts: 2152
Location: Essex,
United Kingdom
Thanked: 334 times

PostPosted: Sun Mar 14, 2004 6:55 pm Reply with quote

I'll agree with Breezer 100%.

Your post gives the total lack of knowlege message.

There are plenty of 'Y' & 'S' plan wiring diagrams about which any body with a basic knowledge of electricity could follow.

You carried out a brief aprenticeship in electrical engineering how brief?? 24 hours?

Went to sort out a DIY job Friday. He moved three motorised valves and did a bit of plumbing, including trying to use an Arison unvented cylinder as a vented one!

Most of his plumbing joints wer leaking but back to the electricals. His problem was fuse kept blowing when he switched his handywork on again.

Cause of problem? Broken motorised valve with top part flapping about loose.

It would have been cheaper to have called me to carry out the original work particually when the labour and cost of materials - including motorised valve, Kingfisher PCB and Kingfisher integral time programmer - was added up.

Alan
Back to top
 Alert Moderators
ban-all-sheds

from United Kingdom

Joined: 27 Aug 2003
Posts: 47227
Location: London,
United Kingdom
Thanked: 1723 times

PostPosted: Mon Mar 15, 2004 1:12 am Reply with quote

BTW - not sure that this was the best time of year to choose to mess about with your CH when you're unsure of what to do.

Better than Jan/Feb, I grant you, but not much, and nowhere near as good as June/July.
Back to top
 Alert Moderators
CH4

from United Kingdom

Joined: 15 Jan 2004
Posts: 120
Location: United Kingdom
Thanked: 1 time

PostPosted: Mon Mar 15, 2004 1:42 am Reply with quote

Piltdown Man,

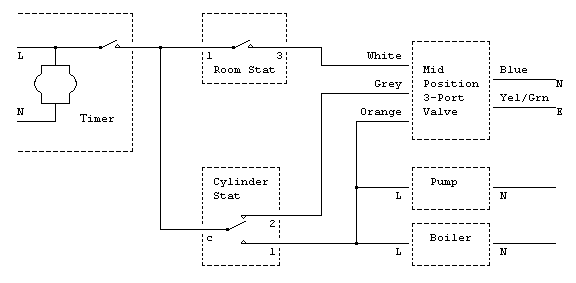

I can't provide a colour schematic, but the following sketch may help.
