CCTV poe camera connector replacement

Joined
19 May 2011
Messages
44
Reaction score
1
Location
London
Country
United Kingdom
Hello
I have a FOSCAM 9805e, and the junction box that used to house the interconnection had letting in water and now the connector on the camera has corroded.
Im quite comfortable with network wiring so I thought I would cut the end of and replace the jack with an RJ45 connector.. when I did this I found 9 wires, where I was expecting 8. The extra one is a purple/violet.
Does anyone know what the actual pinout order should be and what the purple wire is for?

Thanks
Sailesh Bhundia

Sponsored Links
Joined
19 May 2011
Messages
44
Reaction score
1
Location
London
Country
United Kingdom
Hello Secureiam

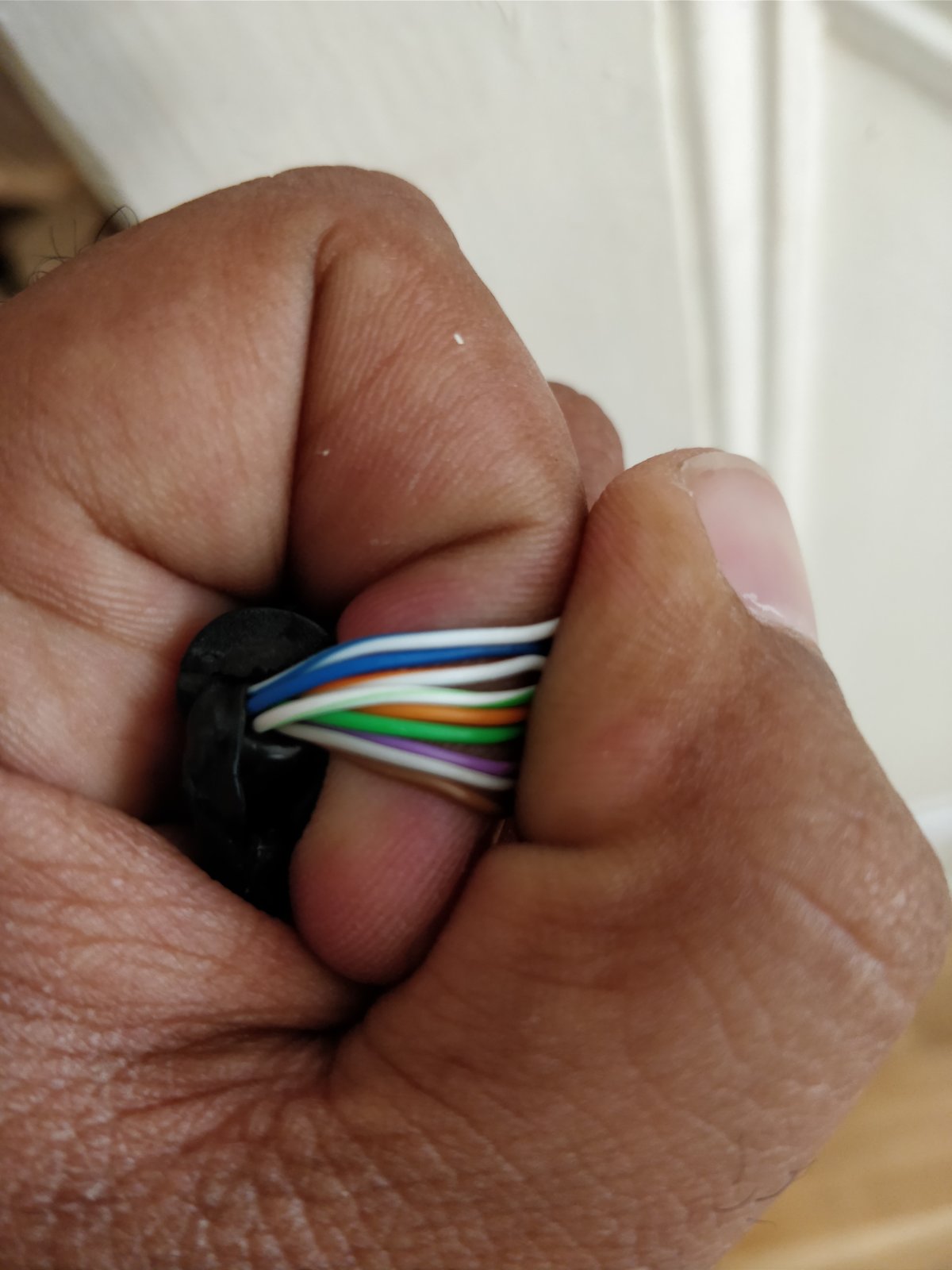

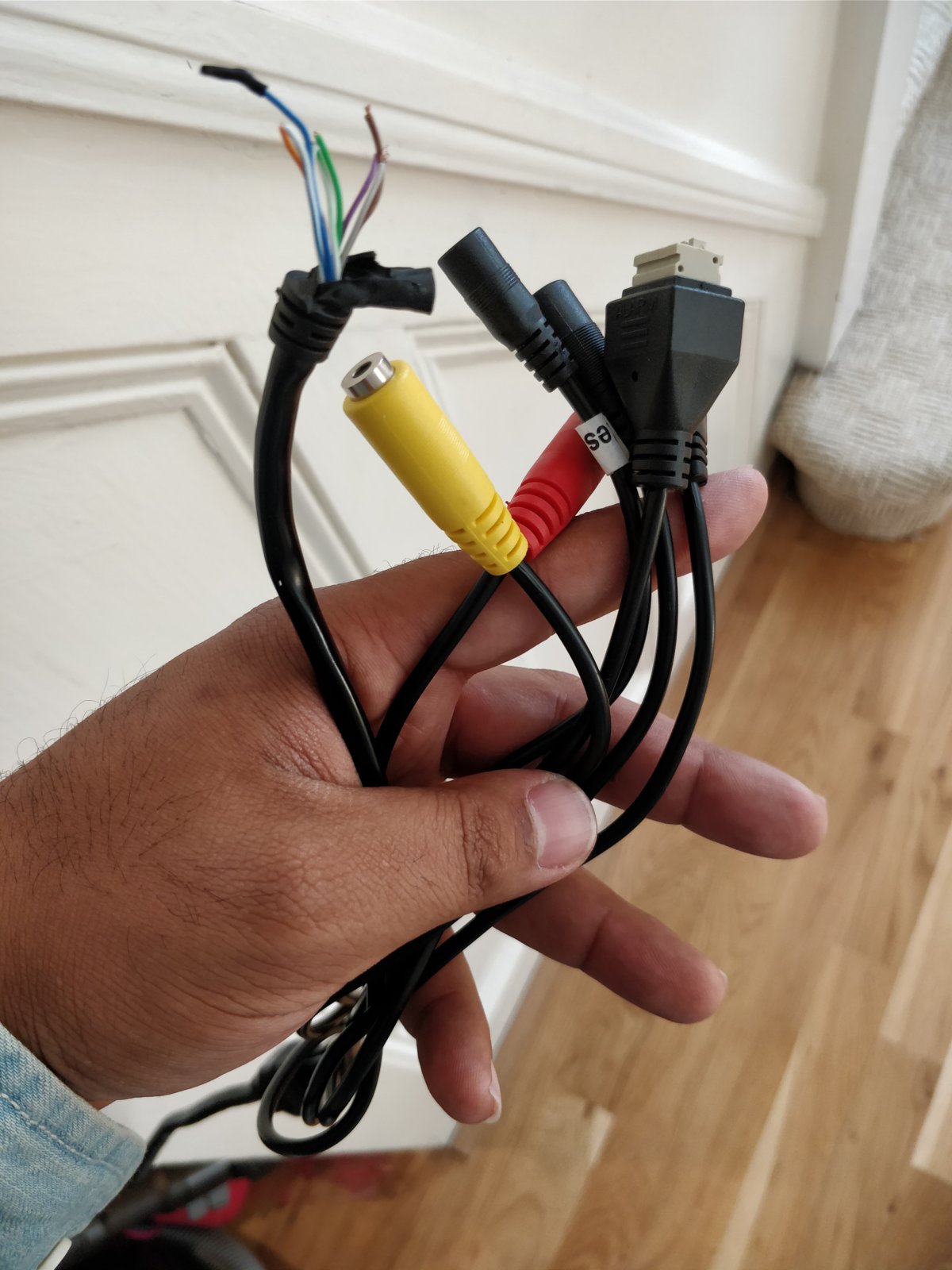

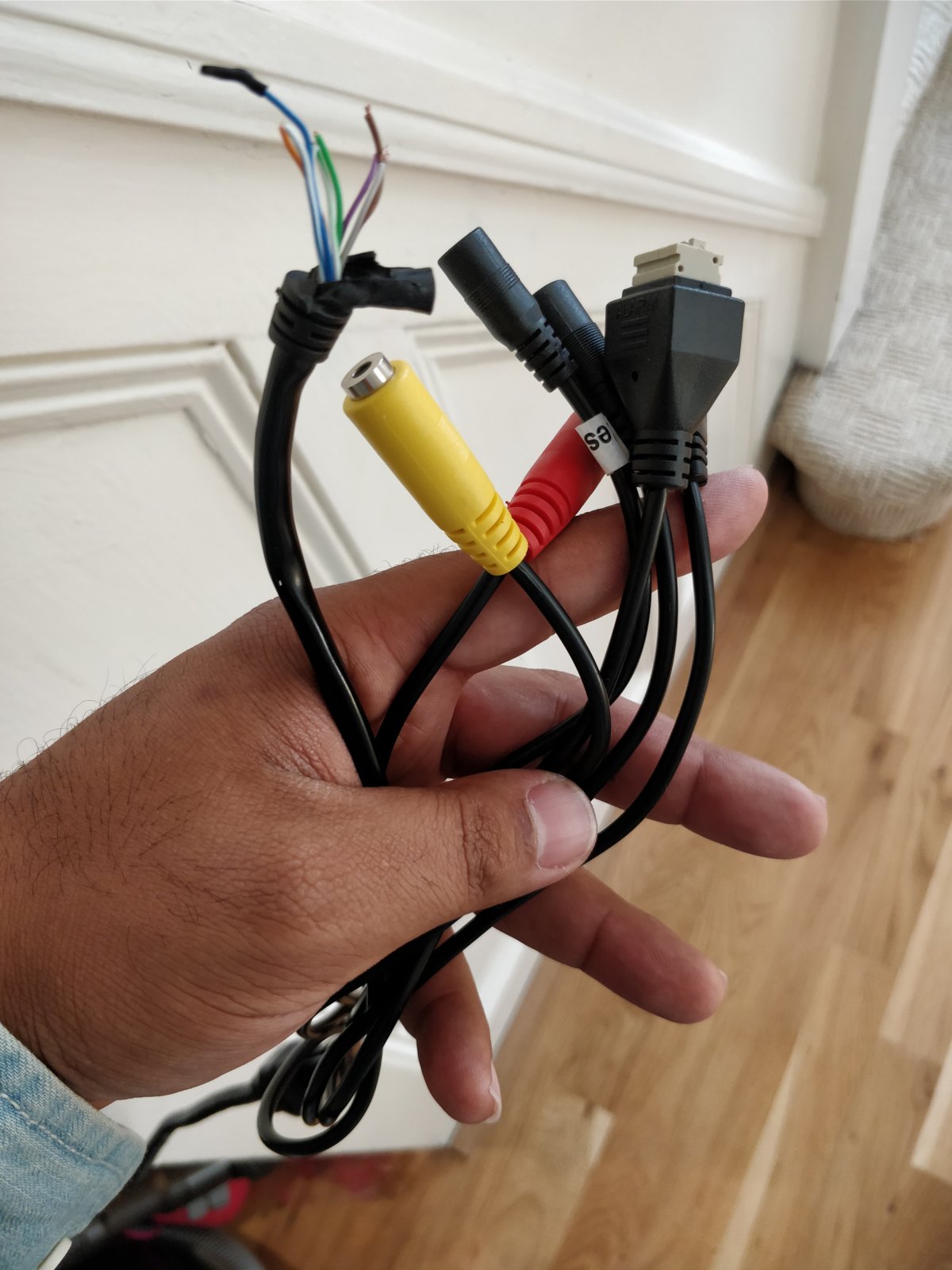

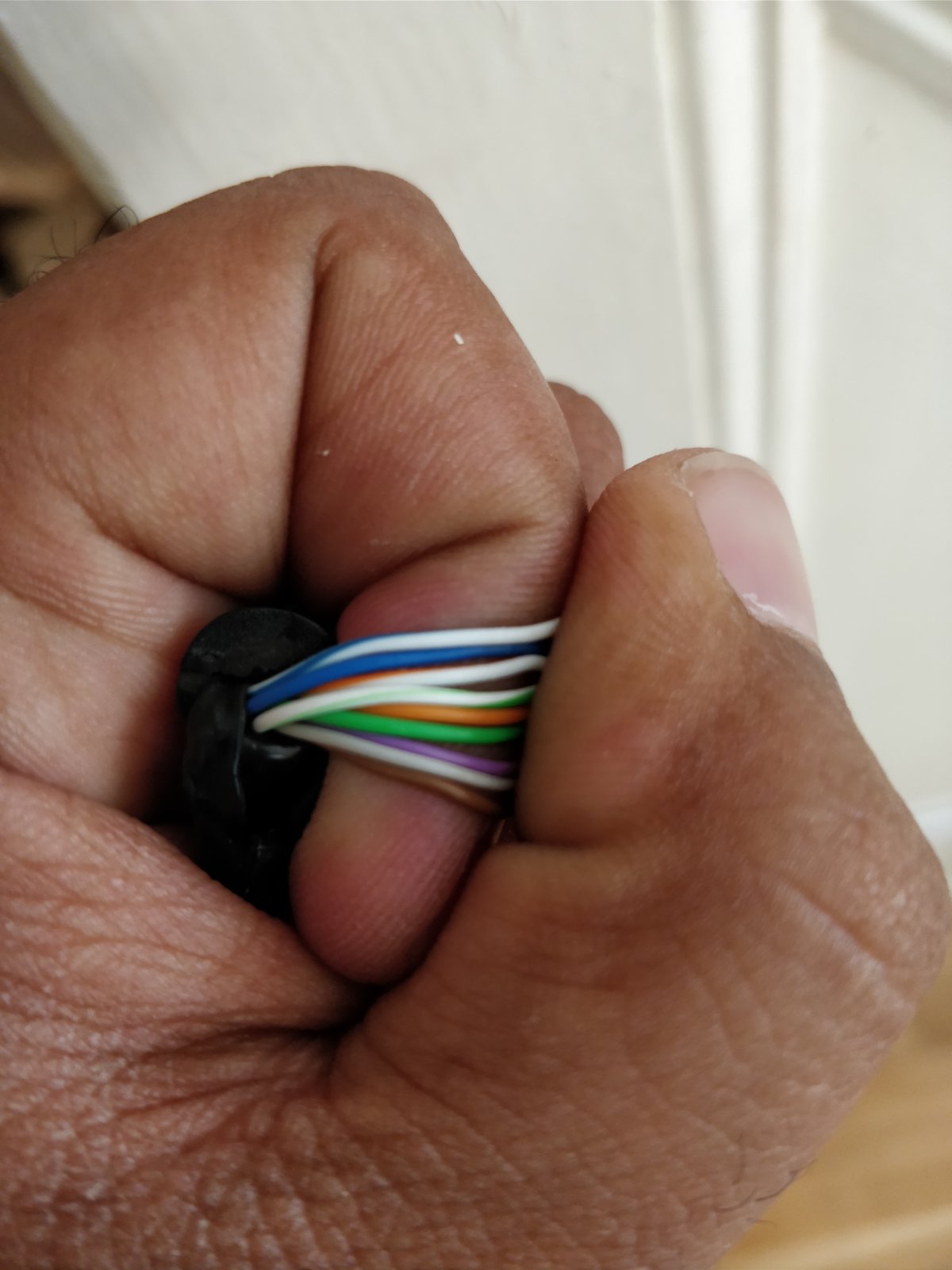

I've attached a a couple of pictures. It's the supplied cable.. the one that's attached to the internals of the camera.
Having taken the pictures I now see that this there are 2 wires I don't understand.. purple and GREY.
In the picture from left to right the colours are:
Blue/white
Blue
Orange/white
Green/white
Orange
Green
Purple
Grey
Brown


Attachments

  • IMG_20170917_145744.jpg
    192.5 KB · Views: 71
  • IMG_20170917_145721.jpg
    137.4 KB · Views: 66
Joined
20 Jun 2014
Messages
5,843
Reaction score
771
Location
Lancashire
Country
United Kingdom
I have no idea.

There are some you tube videos on this but not sure if they relate 100% to your camera,
