Help replacing old thermostat with new

Discussion in 'Electrics UK' started by Noisy76, 4 Oct 2020.

  1. Noisy76

    Noisy76

    Joined:
    4 Oct 2020
    Messages:
    6
    Thanks Received:
    0
    Country:
    United Kingdom
    Hi, I have a new thermostat for our central heating which I'd like to install, however I'd like some guidance on wiring it in.

    I have some experience in electrical work, and have taken precautions to isolate the wiring, and checked with my multimeter, so everything is safe to work with.


    This is the old thermostat and wiring.


    This is the new one, and instructions. I assume the existing live and neutral go to pins 7 and 8 as shown, but then does the control wire go to one of 3 and 4?

    Thanks for your time.

  2. Sponsored Links
  3. 333rocky333

    333rocky333

    Joined:
    12 Jan 2008
    Messages:
    8,382
    Thanks Received:
    894
    Location:
    Essex
    Country:
    United Kingdom
    i woild say yellow goes to 6, but wait for a second opinion
    To use 3/4 you would need to link one of them to 7

    • Thanks Thanks x 1
  4. EFLImpudence

    EFLImpudence

    Joined:
    7 Jul 2010
    Messages:
    37,034
    Thanks Received:
    4,151
    Location:
    Retired to:
    Country:
    Portugal
    Yes.

    No, it goes to 6

    • Thanks Thanks x 2
  5. Noisy76

    Noisy76

    Joined:
    4 Oct 2020
    Messages:
    6
    Thanks Received:
    0
    Country:
    United Kingdom
    Thanks. I had assumed 5 and 6 were for hot water systems as it says on the top of the page "Wiring Diagram Water"

  6. EFLImpudence

    EFLImpudence

    Joined:
    7 Jul 2010
    Messages:
    37,034
    Thanks Received:
    4,151
    Location:
    Retired to:
    Country:
    Portugal
    It's just a switch. The other diagram just says 'boiler'.
    There are no water connections on the old thermostat. Do you have a combi boiler?

    Do you mean that the new thermostat has separate settings for hot water and central heating?

    If so, then you can use 4 for Yellow but you will need a link wire from L to 3.

  7. EFLImpudence

    EFLImpudence

    Joined:
    7 Jul 2010
    Messages:
    37,034
    Thanks Received:
    4,151
    Location:
    Retired to:
    Country:
    Portugal
    I think the 'water' reference is a confusion.

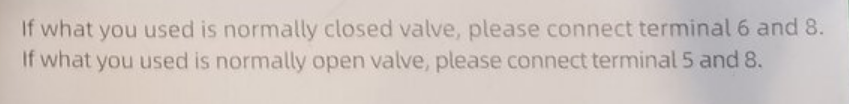

    This is what you should be looking at:


    You don't need 8 for the Neutral to the valve.

  8. EFLImpudence

    EFLImpudence

    Joined:
    7 Jul 2010
    Messages:
    37,034
    Thanks Received:
    4,151
    Location:
    Retired to:
    Country:
    Portugal
    Rocky seems to be beating me to it. I didn't see your replies.

    Sorry Rocky.

  9. Sponsored Links
  10. Noisy76

    Noisy76

    Joined:
    4 Oct 2020
    Messages:
    6
    Thanks Received:
    0
    Country:
    United Kingdom

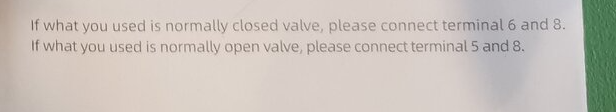

    Thanks. so just to clarify, Live and Neutral to 7 and 8, and control (yellow wire to 6)? I'm a bit confused now!
