Plan drawing software

Discussion in 'Building Regulations and Planning Permission' started by Jeeper, 30 Mar 2020.

  1. Jeeper

    Jeeper

    Joined:
    17 Nov 2016
    Messages:
    5
    Thanks Received:
    0
    Is there any decent plan drawing software available, at a reasonable cost,
    I’ve looked at some apps but they seem fairly basic.

  2. Sponsored Links
  3. DevilDamo

    DevilDamo

    Joined:
    14 Jan 2010
    Messages:
    1,955
    Thanks Received:
    319
    Country:
    United Kingdom
    It depends what you want to do or achieve? At the end of the day, you pay (or not) for what you get.

  4. oldbutnotdead

    oldbutnotdead

    Joined:
    11 Jan 2013
    Messages:
    4,747
    Thanks Received:
    1,004
    Location:
    Durham
    Country:
    United Kingdom
    Sketchup is OK for basic block stuff, if you want detail you have to pay (Autocad). Plus to really be useful you need to be able to print the plans at a scale you can read them (so looking at large format printers)

  5. mrrusty

    mrrusty

    Joined:
    1 May 2018
    Messages:
    794
    Thanks Received:
    163
    Country:
    United Kingdom
    Turbocad @£49 for 2D and £149 for 2D/3D https://www.turbocad.co.uk/windows-range is extremely powerful and will do absolutely everything you would need. However the learning curve is fairly steep if you have never used CAD before. (I've been using Turbocad since V1 for DOS circa 1990)

  6. tony1851

    tony1851

    Joined:
    23 Feb 2012
    Messages:
    10,406
    Thanks Received:
    1,574
    Location:
    Manchester
    Country:
    United Kingdom

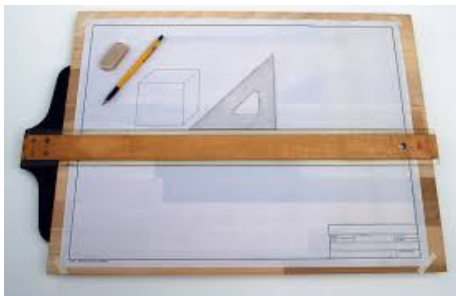

    ... cap t square.PNG

    £3/17/6

  7. Jeeper

    Jeeper

    Joined:
    17 Nov 2016
    Messages:
    5
    Thanks Received:
    0
    I’d just like to be able to draw some, plans for basic planning for a Porch project, I have plenty of time to learn
    2D would be fine the turbo cad for Mac looks good.

  8. Notch7

    Notch7

    Joined:
    15 Sep 2017
    Messages:
    26,078
    Thanks Received:
    1,823
    Location:
    S. Uplands
    Country:
    United Kingdom
    Turbocad is well supported, there are quite a few online tutorials and there is a turbocad forum.

  9. nickjb

    nickjb

    Joined:
    30 Dec 2008
    Messages:
    713
    Thanks Received:
    133
    Location:
    Bristol
    Country:
    United Kingdom
    Draftsight is very good for 2d plans. Its a simplified autocad. A lot of the functions are the same and there is plenty of online support. Best of all, its free

    • Thanks Thanks x 1
  10. Sponsored Links
  11. mrrusty

    mrrusty

    Joined:
    1 May 2018
    Messages:
    794
    Thanks Received:
    163
    Country:
    United Kingdom
    unless I'm missing something on their website, draftsight is not free...

  12. ^woody^

    ^woody^

    Joined:
    3 Sep 2006
    Messages:
    34,690
    Thanks Received:
    4,699
    Location:
    West Mids
    Country:
    United Kingdom
    Rip off. I'd want at least a parallel motion for £3

  13. ^woody^

    ^woody^

    Joined:
    3 Sep 2006
    Messages:
    34,690
    Thanks Received:
    4,699
    Location:
    West Mids
    Country:
    United Kingdom
    Use the free Sketchup in 2d mode (take off perspective). Its quite good at letting you input actual dimensions easily and keeping things square.

  14. mrrusty

    mrrusty

    Joined:
    1 May 2018
    Messages:
    794
    Thanks Received:
    163
    Country:
    United Kingdom
    sadly a quick look at 'bay completed listings shows £5-£10 is the going rate for ordinary kit...

  15. nickjb

    nickjb

    Joined:
    30 Dec 2008
    Messages:
    713
    Thanks Received:
    133
    Location:
    Bristol
    Country:
    United Kingdom
    "draftsight is not free..."

    Sorry, my mistake. Looks like they have changed their model. Was free last year.

    LibreCAD is free. Not as good but still OK. Works in quite a different way to AutoCAD so a bit of a learning curve but easy enough to use

  16. garyo

    garyo

    Joined:
    11 Apr 2006
    Messages:
    2,145
    Thanks Received:
    199
    Location:
    Berkshire
    Country:
    United Kingdom
    I use sketchup for PP and regs but without the Layout module it's too hard to export annotated pdf sets at scale. That puts you in the 'pro' licence model which is £700 odd, but fortunately I don't have to pay because I use it at work.

  17. mrrusty

    mrrusty

    Joined:
    1 May 2018
    Messages:
    794
    Thanks Received:
    163
    Country:
    United Kingdom
    I think this is one of the key considerations. In Turbocad it's easy once you've figured out where everything is. You draw in model space at real dimensions, then take a snapshot "view" of whole or part, create a paper space in A4, A3 or whatever, insert a viewport for that view and there's a box to set the scale. As Planning Departments want actual scaled drawings, this is an important part of the process. You print to PDF straight from paperspace.

    As has already been said, TCad is mature software with a good forum and lots of help out there. For a casual user who needs proper CAD software, you could certainly do a lot worse.

    You may not think you want 3D, but if you can get your head around it, it's a real time saver - draw it once and then take your plan and elevations from the different views. 3D is also really handy if you are e.g. fitting out a kitchen. You can draw units and then drop and move them around to see how they fit and look. It can really help to avoid planning mistakes. I've only ever been a casual user both at home and work.

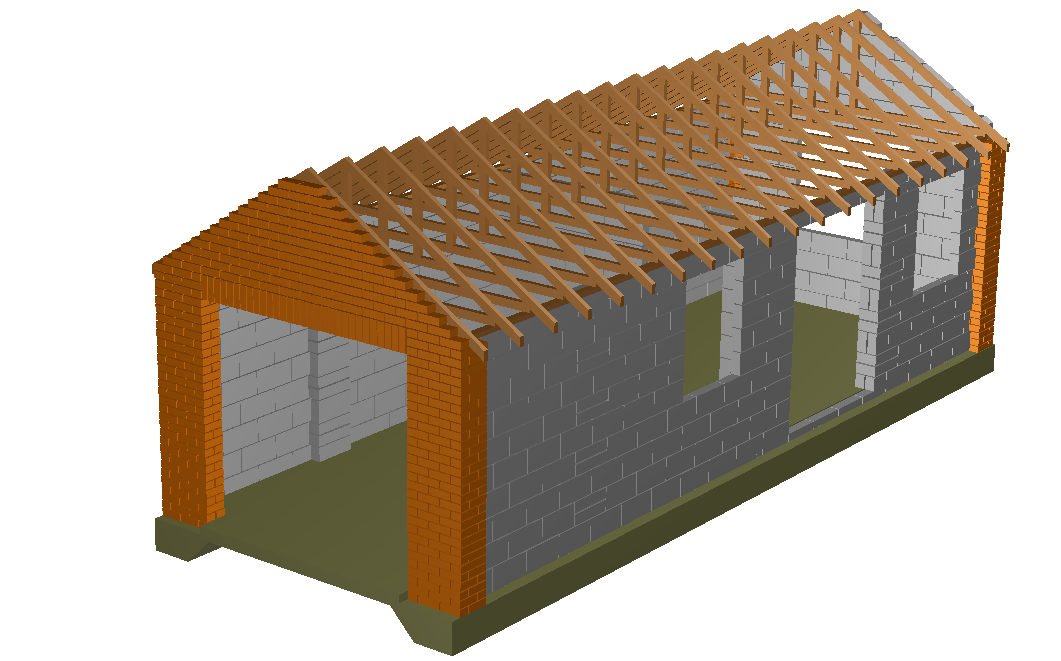

    here's my current project - bricks and blocks drawn to scale which will help me with quants. garage1.jpg
