Siemens thermostat to Hive Active Heating wiring help

Discussion in 'Plumbing and Central Heating' started by stuart799, 18 Nov 2017.

  1. stuart799

    stuart799

    Joined:
    17 Aug 2011
    Messages:
    42
    Thanks Received:
    0
    Location:
    Surrey
    Country:
    United Kingdom
    Hello,

    We just moved into a new house that has a Siemens therm installed on a Glow worm combi boiler. It works fine but I find it really complicated to programme so want to switch to a Hive as the prices are down for 'black Friday' sales.

    Before I install I just want to doublecheck the wiring as I struggle to get my head around it.

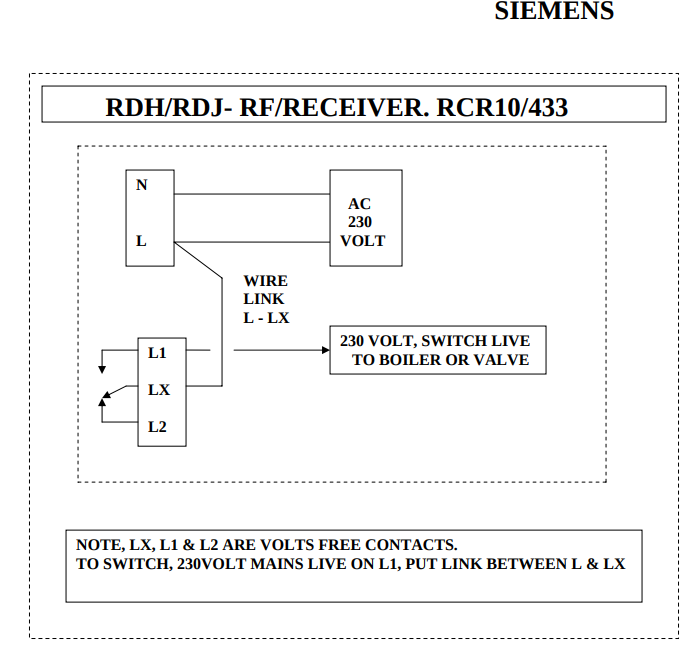

    There is a link between L and LX on the Siemens as per this wiring diagram:

    Screenshot 2017-11-18 at 21.33.08.png

    Here is the Hive diagram for reference:

    [​IMG]

    Any help is appreciated!

  2. Sponsored Links
  3. stem

    stem

    Joined:
    20 Jul 2005
    Messages:
    6,845
    Thanks Received:
    1,640
    Location:
    Nottinghamshire
    Country:
    United Kingdom
    The Hive receiver needs a 230V supply to power it, so that is obtained simply by moving the 230V supply wires from the N & L at the Siemens to the N & L at the Hive receiver.

    Then use the link to join the Hive 'Live' terminal (L) to the Hive 'Common' terminal (1)

    Finally, the wire presently in the Siemens L1 that goes to the boiler, should connect to the Hive 'Heating on' terminal (3)


    EDIT

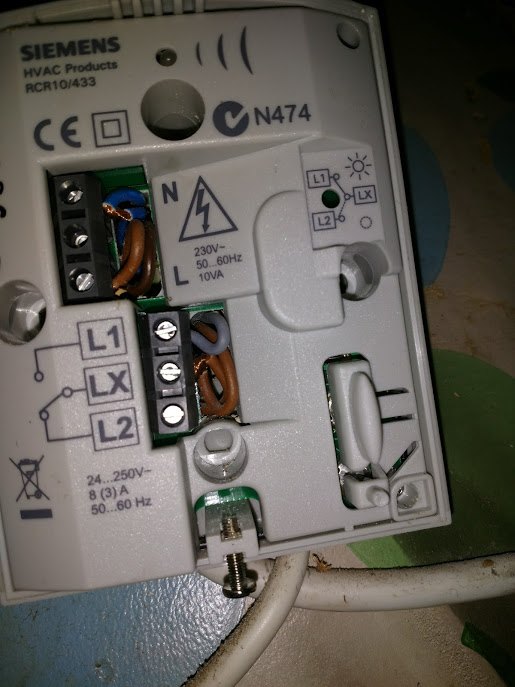

    The wiring diagram you have posted shows only a single wire in 'LX'. However, unless my eyes deceive me, your photo appears to show two wires presently in 'LX'. If that is the case, keep them both together, and transfer them both to the 'Common' terminal (1) of the Hive receiver.

    Last edited: 19 Nov 2017
    • Thanks Thanks x 1
  4. stuart799

    stuart799

    Joined:
    17 Aug 2011
    Messages:
    42
    Thanks Received:
    0
    Location:
    Surrey
    Country:
    United Kingdom
    Thanks for your help! Yes you're right, LX has two wires.

    I'll let you know how I get on.

  5. stuart799

    stuart799

    Joined:
    17 Aug 2011
    Messages:
    42
    Thanks Received:
    0
    Location:
    Surrey
    Country:
    United Kingdom
    I fit it yesterday, all up and running. Thanks again!

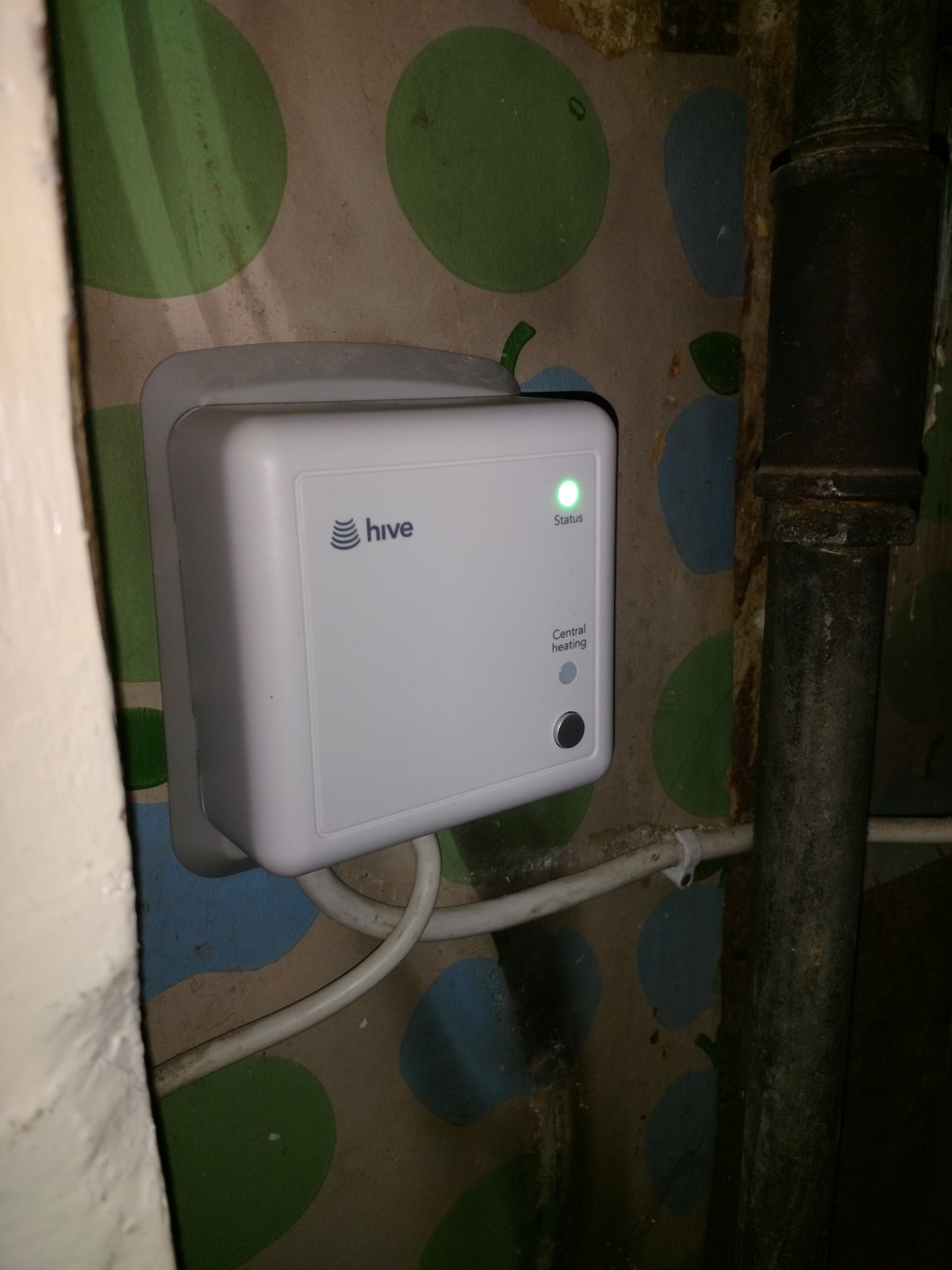

    IMG_20171124_113259378.jpg IMG_20171124_105130018.jpg

    • Like Like x 1
  6. stem

    stem

    Joined:
    20 Jul 2005
    Messages:
    6,845
    Thanks Received:
    1,640
    Location:
    Nottinghamshire
    Country:
    United Kingdom
    Excellent. Well done and thanks for the update.

  7. Sponsored Links
  8. cajsoft

    cajsoft

    Joined:
    5 Jan 2018
    Messages:
    18
    Thanks Received:
    0
    Country:
    United Kingdom
    where are these 2 cable flex's going.. I understand 1 is a link back to the boiler, but the other one?

  9. stem

    stem

    Joined:
    20 Jul 2005
    Messages:
    6,845
    Thanks Received:
    1,640
    Location:
    Nottinghamshire
    Country:
    United Kingdom
    The other cable will be providing the 230V supply. You can pick it up at the most convenient point, either the L & N boiler terminals or directly from the fused spur.

    What you have to understand is that there is no fixed way as to where to connect heating system wiring. For example, with some installations the mains supply may go to the boiler first, but with others it may go to the thermostat first. It's all down to the personal preferences of the original installer, any existing wiring if reused and the layout of the various components in the property. What's right for the OP in this case might not be right for you.

  10. cajsoft

    cajsoft

    Joined:
    5 Jan 2018
    Messages:
    18
    Thanks Received:
    0
    Country:
    United Kingdom
    cheers.. I figured that out after reading some more.. I'll check out my options, but I know the thermostat option is out of the question unless I can get power up to that area (bigger job)

  11. stuart799

    stuart799

    Joined:
    17 Aug 2011
    Messages:
    42
    Thanks Received:
    0
    Location:
    Surrey
    Country:
    United Kingdom

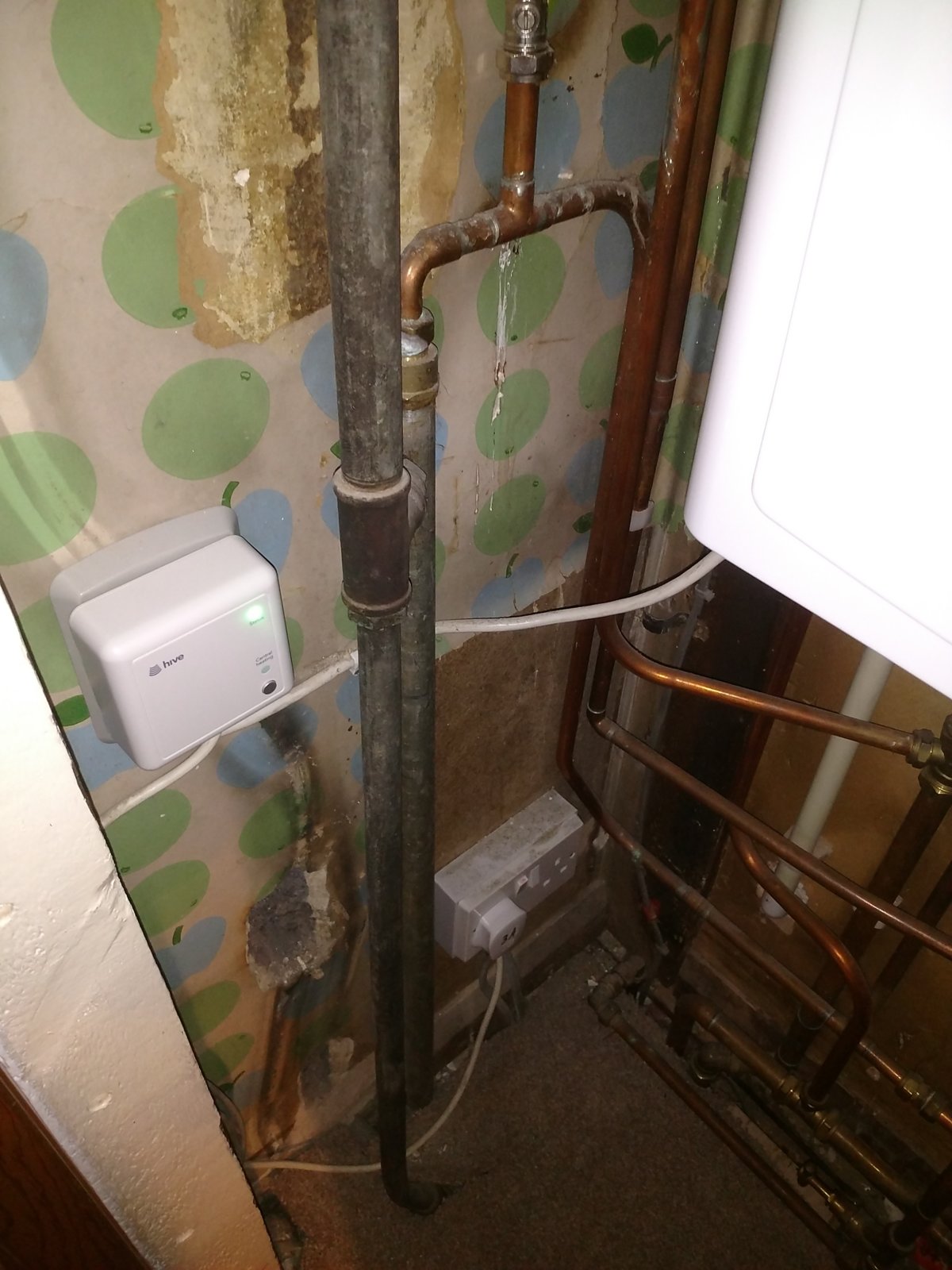

    Here's a picture showing the wire going to the boiler and the other wire going to the 230V supply in case it helps...
