Existing Wiring Diagram
Existing Wiring Diagram
Existing Handset - Internal Wiring
Existing Handset
D

Existing Wiring Diagram

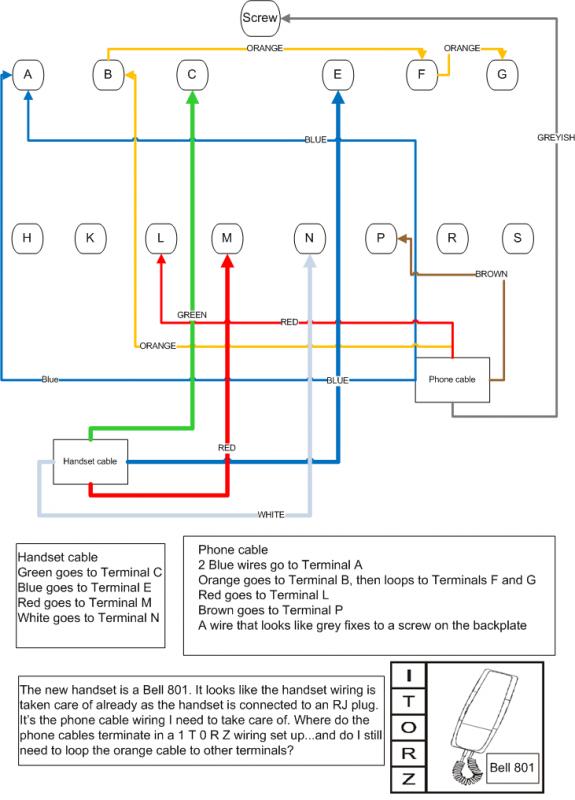

Hope this makes the existing wiring configuration clear enough.
Click to expand...
