Zanussi TC485W Terminal Board wiring

[clarkey0]

Hi,
My Zanussi TC485W Tumble Dryer snapped its belt.
Managed to replace it ok, although to get the back of the machine off i had to disconnect the wires that connect to the mains input.

Thanks to a dodgy Blackberry phone the picture i took of the connections before disconnecting it got wiped. I am now in a position of having a fixed belt but any attempt to connect the wires and turn on will be a limited educational guess and probably will break my machine further!

Does anybody own a TC485W model, or something similar (TC481/2?) who can take a the top off their machine and send me a picture pretty please?

Just don't know the order of the control panel wires and the capacitor wires

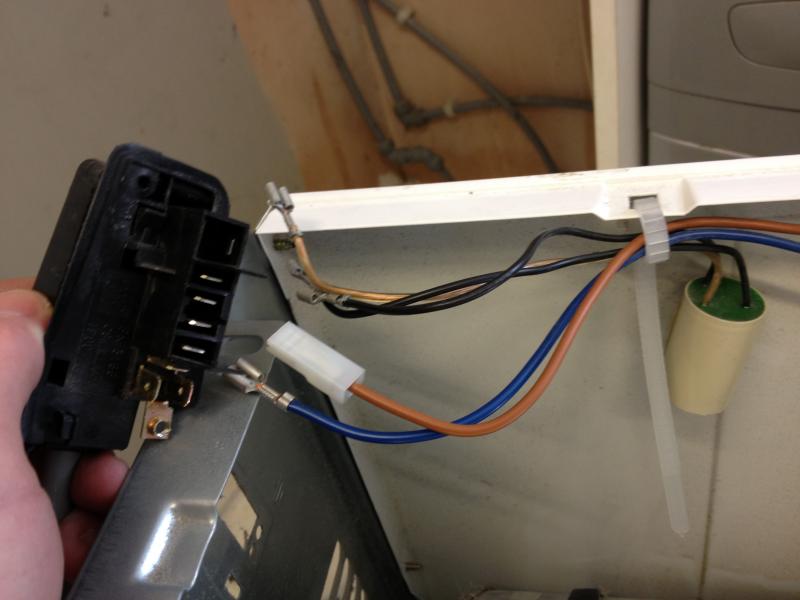

Have uploaded an image of all my wires pulled out
Any help would be life saving!!

Thanks
Rich

Untitled

• clarkey0
• 29 Mar 2013
• 1



[assuhors]

From the top
thin black-suppressor
brown-live
blue-neutral
thin black supressor
earth at the bottom.
