Siemens RCR10 RF receiver wiring to Remeha Avanta39c

[parkers1]

Hope someone can help.

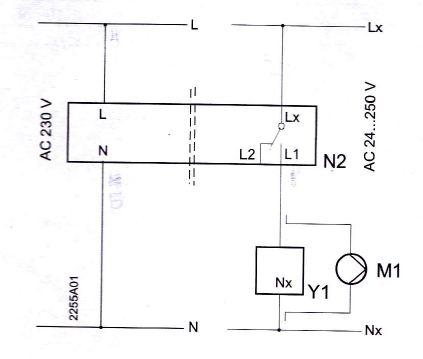

I want to wire a Siemens RF receiver to a Remeha Avanta 39c combi boiler. Below is the wiring diagram for the receiver.

Untitled

• parkers1
• 10 Feb 2012
• 1

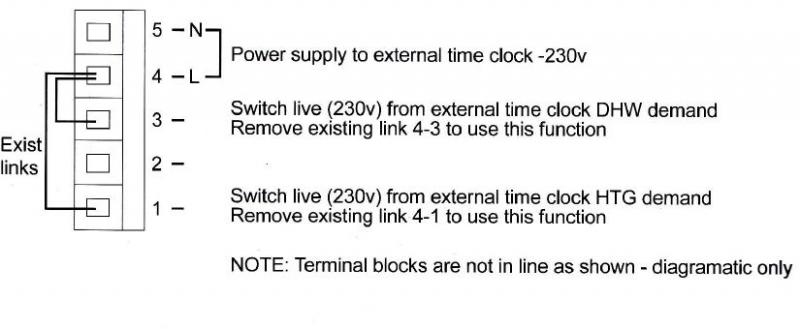

The boiler connections are as show below

Untitled

• parkers1
• 10 Feb 2012
• 1

Can anyone tell me what wires go where please? [/img]



[parkers1]

The way i understand it.
4 to L and Lx
5 to neutral
1 to L1

Would this be correct?



[D_Hailsham]

The way i understand it.
4 to L and Lx
5 to neutral
1 to L1

Would this be correct?

And remove the link between 1 and 4!



[parkers1]

Sorry, yes, the link i think is already removed because there's an existing faulty RF unit installed already (job for the weekend, haven't looked yet).



[parkers1]

am i right in thinking that L2 is not connected to anything?



[D_Hailsham]

am i right in thinking that L2 is not connected to anything?

Yes.



[parkers1]

Many Thanks for that.
The reason I'm changing it is because the reception with the existing unit barely carries through 1 brick wall. My parents have the Siemens unit and the signal carries no problem 30m through 3 thick stone walls, so fingers crossed I might be able to have the new thermostat in the front room (about 20m through 3 thin brick walls).
