Hi guys, I need some help on this please.
I have a two external wall lights that are currently switched on by an internal switch (so I'm limited by having them either On or Off); I am now adding a wall mounted PIR into the circuit to allow me to have the option of having them controlled by the PIR, as well as the switchable On/Off option).
I have run 3C&E cable from the PIR (think the brand is Aurora) wall mounted location back to the internal light switch location (I have a spare switch location on a 4 way switch that I intend to use to control the PIR); the actual PIR unit has a Live In (i.e. there is an L with a down arrow next to it), a Neutral, and a Live Out (i.e. the PIR has an L with an arrow going up).

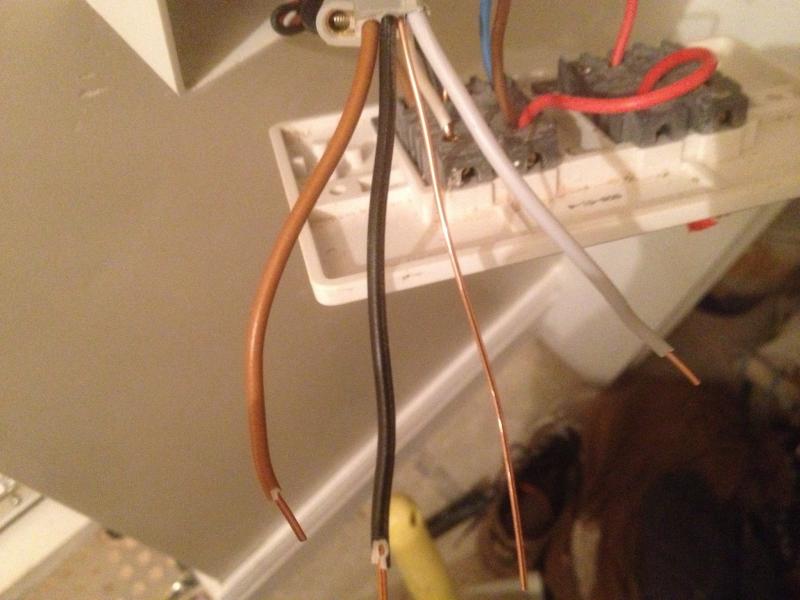

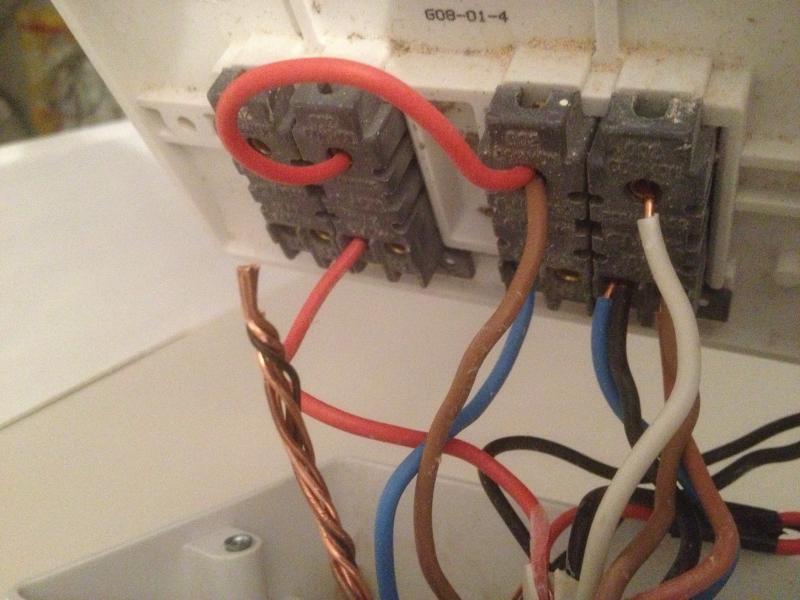

The switch I intend to use to control PIR is position 4 (i.e. see first photo - note nothing is wired into yet) and light's ON/OFF switch is position 2. I have the 3C&E (see second photo) waiting to go, but don't know what goes where. I also suspect I need wiring to go back to the lights (I’ve read number of Forum topics but have confused myself).
Any guidance will be much appreciated – this job has been waiting to be finished for months.
