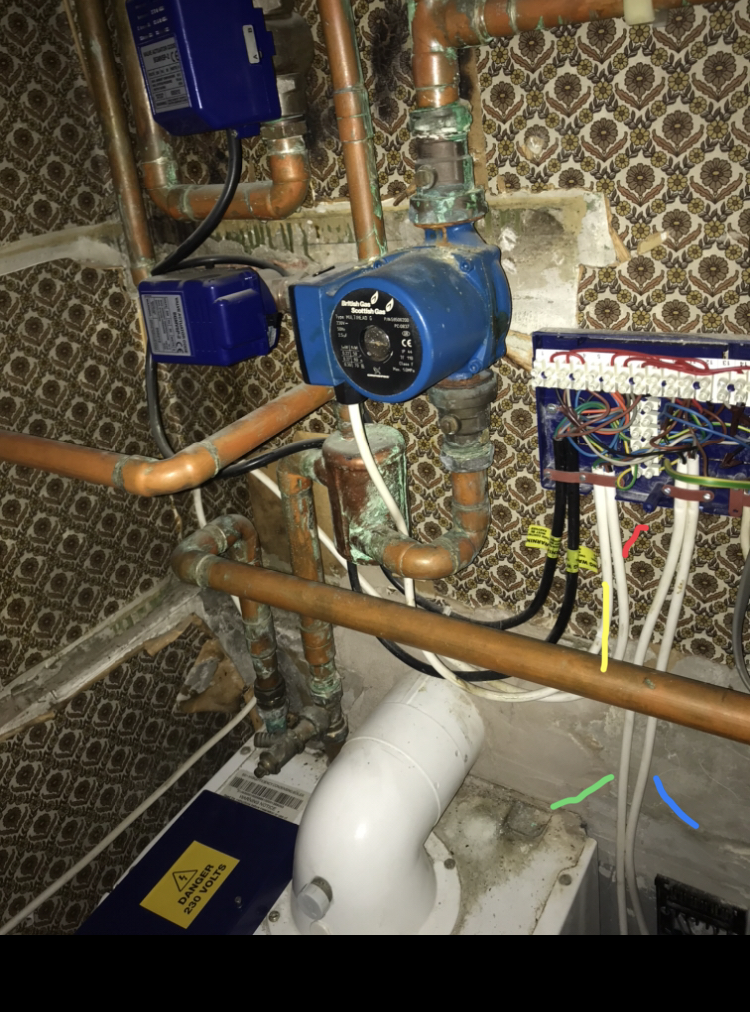

Blue- to the wr1 wireless system
Green- to boiler
Red- to hive previously installed
Yellow- to light blue box thing
2 black cables to each dark blue box thing.
