Changing bathroom extractor fan from timed to standard - terminate live?

Discussion in 'Electrics UK' started by basq, 25 Nov 2018.

Thread Status:
Not open for further replies.
  1. basq

    basq

    Joined:
    25 Nov 2018
    Messages:
    10
    Thanks Received:
    1
    Country:
    Ireland
    Complete amateur here so forgive the terminology.

    So my timed extractor fan in my bathroom has given up the ghost..

    I got a replacement but realised I got the standard model instead of a timed model.. which will be fine as it'll be wired into bathroom light.

    So below top is my existing timed model (with live, neutral and switched live indicated) and below bottom is my new standard model. I've indicated my plan roughly but what would you suggest doing with the existing live? What would you suggest it best way to cap it or could I potentially terminate it elsewhere - e.g would 'T' termination point be used in a standard model - without timer as that was used for switched live in timed model?

    [​IMG]
    [​IMG]

  2. Sponsored Links
  3. terryplumb

    terryplumb

    Joined:
    8 May 2017
    Messages:
    5,232
    Thanks Received:
    1,067
    Country:
    United Kingdom
    Why not return the fan for credit ,and buy a timed version ? Better than the non timed as that will only be on whilst light is required / on.
    If you really just want the non timed to be fitted then switched live and neutral get connected and the permanent live ( not required ) can be disconnected at source . some would just leave it and terminate it in a spare connector strip. By the way check the voltage that extractor requires ,it may be low voltage, and not suitable for direct connection to mains , without a transformer.

  4. basq

    basq

    Joined:
    25 Nov 2018
    Messages:
    10
    Thanks Received:
    1
    Country:
    Ireland
    Thanks for the quick reply Terry.

    Unfortunately the damage was done as already drilled a hole in fan to feed wires through before I noticed it was standard, and not timed.

    Should I purchase a connector strip or any harm in using say the unlabelled connector in top-left, or T in bottom right?

    Will check voltage alright.

  5. mattylad

    mattylad

    Joined:
    27 Apr 2008
    Messages:
    7,588
    Thanks Received:
    534
    Country:
    United Kingdom
    In the 2nd picture, the bottom and middle rows of the connector block are the actual fan connections, the top is unused so:

    Connect the permanent live into the top row,
    Connect the neutral into the middle row,
    Connect the switched live from your lights into the bottom row.

    There is no need for any extra connectors.
    Your editing the picture with "switched live" is in the wrong place.

    Also note that the molding has the L & N on the actual fan wiring side swapped, N on the left and L on the right. (not that it really matters to connect to an AC fan).

    Out of curiosity, where do the 2 wires in the far bottom left of the picture go? (can you show more of the fan?)

  6. terryplumb

    terryplumb

    Joined:
    8 May 2017
    Messages:
    5,232
    Thanks Received:
    1,067
    Country:
    United Kingdom
    The top terminal has nothing connected ,so the permanent live could be terminated in it.
    The other two terminals have contradicting L and N markings. On the left side the middle terminal is marked L ,but on the right side of the same terminal block its marked N ....!!!
    Confusing !! The switched live in bottom terminal and neutral in the middle terminal would be how i would connect it up.

  7. sparkwright

    sparkwright

    Joined:
    20 Aug 2009
    Messages:
    7,854
    Thanks Received:
    965
    Location:
    Dorset
    Country:
    United Kingdom
    Interesting that regular 3 core and E cable has not been used.

    Send a picture of the where the wires emerge from the cable sheath.

    If ONE regular T+E cable has been used, then it may be that the bare earth cable has been over-sleeved as a live conductor.

  8. basq

    basq

    Joined:
    25 Nov 2018
    Messages:
    10
    Thanks Received:
    1
    Country:
    Ireland

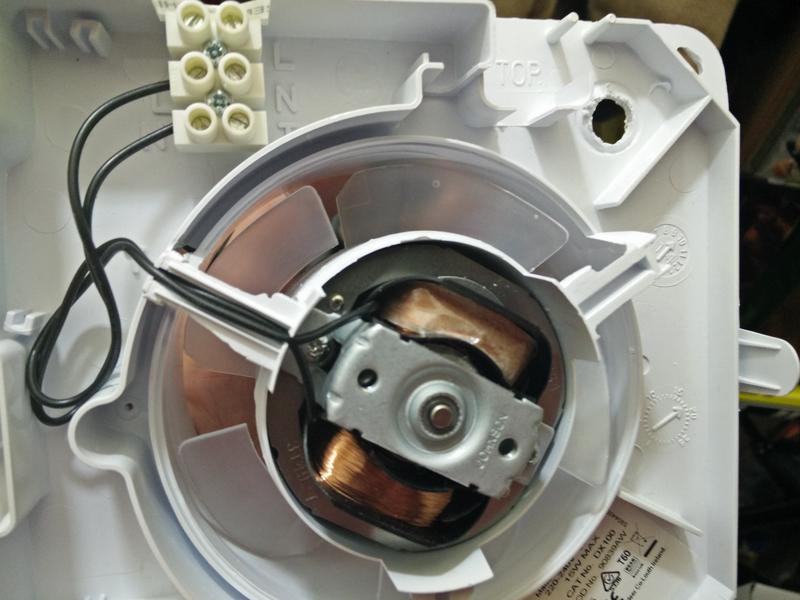

    Better photo of fan:

    [​IMG]

    I actually wired it up similarly to how people are suggesting:

    That is:

    Top = Live
    Middle = Neutral
    Bottom = Switched Live

    Which is the same way in which it's wired in existing timed fan, and the fan stayed on permanently regardless of light on/off.. so unsure of what is going on.

  9. terryplumb

    terryplumb

    Joined:
    8 May 2017
    Messages:
    5,232
    Thanks Received:
    1,067
    Country:
    United Kingdom
    You mixed up the live and switched live by the sounds of it ,swap them.

  10. Sponsored Links
  11. basq

    basq

    Joined:
    25 Nov 2018
    Messages:
    10
    Thanks Received:
    1
    Country:
    Ireland
    Yeah, though wired them same as wiring on timed though (L = Live, N = Neutral, T = Switched Live). Assumed it'd be same.

    • Thanks Thanks x 1
  12. terryplumb

    terryplumb

    Joined:
    8 May 2017
    Messages:
    5,232
    Thanks Received:
    1,067
    Country:
    United Kingdom
    And did the old fan work as it should have ? It either didn't ,or you mixed them up.

  13. basq

    basq

    Joined:
    25 Nov 2018
    Messages:
    10
    Thanks Received:
    1
    Country:
    Ireland
    It worked perfectly fine until a fortnight ago..

    .. maybe I did mix them up but switched live seems to be a slightly lighter colour.

    I'll try reversing them so.. probably need to wait til daylight though.

  14. terryplumb

    terryplumb

    Joined:
    8 May 2017
    Messages:
    5,232
    Thanks Received:
    1,067
    Country:
    United Kingdom
    What made you conclude which brown was switched live and permanent live ?

  15. basq

    basq

    Joined:
    25 Nov 2018
    Messages:
    10
    Thanks Received:
    1
    Country:
    Ireland
    In previous fan's wiring, I assumed permanent live was in L and switched live was T but that was just an assumption.

  16. terryplumb

    terryplumb

    Joined:
    8 May 2017
    Messages:
    5,232
    Thanks Received:
    1,067
    Country:
    United Kingdom
    There you go then !! Your assumption was wrong ! Assumption and electrics dont go hand in hand. :LOL: :LOL:

    • Like Like x 1
  17. basq

    basq

    Joined:
    25 Nov 2018
    Messages:
    10
    Thanks Received:
    1
    Country:
    Ireland
    You're not wrong! :)

    • Like Like x 1
