Changing double gang switch change

Discussion in 'Electrics UK' started by Carlos1976, 26 Mar 2017.

  1. Carlos1976

    Carlos1976

    Joined:
    26 Mar 2017
    Messages:
    7
    Thanks Received:
    0
    Country:
    United Kingdom
    hi all new member needing help bought a double gang switch today from bq went to swap over all connections are marked different new switch has L then L1 then 2 This on both banks old two way switch has 5 going into it two red on blue yellow and a black could any help how it connects to new switch I'm guessing the L new switch are the commons

  2. Sponsored Links
  3. PrenticeBoyofDerry

    PrenticeBoyofDerry

    Joined:
    30 Jun 2009
    Messages:
    21,627
    Thanks Received:
    2,382
    Location:
    Londonderry
    Country:
    United Kingdom
  4. Carlos1976

    Carlos1976

    Joined:
    26 Mar 2017
    Messages:
    7
    Thanks Received:
    0
    Country:
    United Kingdom
    hant dissconected old switch as didn't want to messing wiring up

  5. Carlos1976

    Carlos1976

    Joined:
    26 Mar 2017
    Messages:
    7
    Thanks Received:
    0
    Country:
    United Kingdom
  6. Carlos1976

    Carlos1976

    Joined:
    26 Mar 2017
    Messages:
    7
    Thanks Received:
    0
    Country:
    United Kingdom
    That's old swith still connected

  7. Carlos1976

    Carlos1976

    Joined:
    26 Mar 2017
    Messages:
    7
    Thanks Received:
    0
    Country:
    United Kingdom
    New switch has L then L1 and l2 on both banks it's connected to a single switch at top of stairs which has and coloured earth in to com then two reds in a terminal then black and blue wires connected to another terminal guessing these are neutrals

  8. PrenticeBoyofDerry

    PrenticeBoyofDerry

    Joined:
    30 Jun 2009
    Messages:
    21,627
    Thanks Received:
    2,382
    Location:
    Londonderry
    Country:
    United Kingdom
    coloured earth are you sure?
    One of the gangs looks like a single way?

  9. stillp

    stillp

    Joined:
    21 Sep 2009
    Messages:
    4,496
    Thanks Received:
    338
    Location:
    West Midlands
    Country:
    United Kingdom
    Well done!

    • Like Like x 1
  10. Sponsored Links
  11. Carlos1976

    Carlos1976

    Joined:
    26 Mar 2017
    Messages:
    7
    Thanks Received:
    0
    Country:
    United Kingdom
    Same colour as that yellowed green on that's on switch one below blue

  12. Carlos1976

    Carlos1976

    Joined:
    26 Mar 2017
    Messages:
    7
    Thanks Received:
    0
    Country:
    United Kingdom
    That is wired to the single switch on its own then two reds together then blue and black wires together

  13. EFLImpudence

    EFLImpudence

    Joined:
    7 Jul 2010
    Messages:
    37,780
    Thanks Received:
    4,246
    Location:
    Retired to:
    Country:
    Portugal
    It IS yellow.

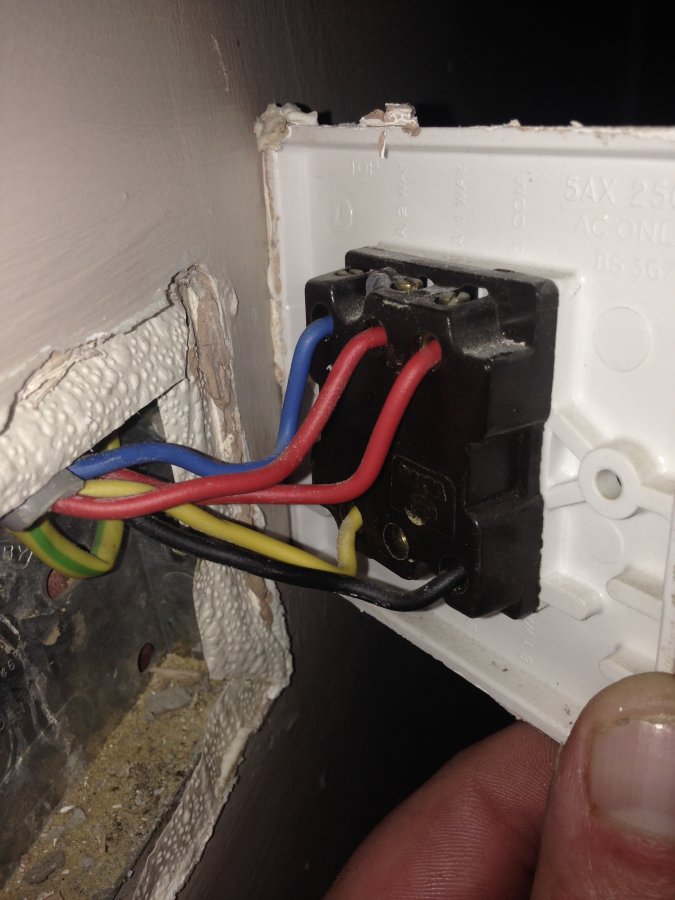

    One cable to one switch is Red, Yellow, Blue

    and

    one cable to other switch is Red and Black.


    These are the two switches - just swap the wires.
    One switch may be upside down like this is or they may both be the same way up.


    • Like Like x 1
  14. PrenticeBoyofDerry

    PrenticeBoyofDerry

    Joined:
    30 Jun 2009
    Messages:
    21,627
    Thanks Received:
    2,382
    Location:
    Londonderry
    Country:
    United Kingdom
    That is not an earth, it is a switch line. Ideally all the conductors connected to the switch should be sleeved red, none are neutrals all live.

    The red and black cores to right of photo are part of a single gang, would assume the red is com/L and the black is L1.

    The other gang is two way, again assume yellow is com/L and Red is L1 and blue is L2.

    The conductor connected to backbox, sleeved green/yellow is the earth (aka CPC). This should stay connected unless you have purchased a metallic switch, then the CPC needs connecting directly to the earth terminal on the switch plate, then ideally a supplementary earth between the switch plate and backbox would be installed.
    The most important thing to establish is if you are replacing with a metallic switch plate? That there is a fault path to earth, so continuity must be proved via testing.

    Last edited: 26 Mar 2017
  15. winston1

    winston1

    Joined:
    11 Jan 2010
    Messages:
    7,310
    Thanks Received:
    565
    Location:
    London
    Country:
    United Kingdom
    Guessing is not a good idea with electrics. What is more you would be wrong. There are no neutrals to those switches, they are switched lives.

  16. ban-all-sheds

    ban-all-sheds

    Joined:
    27 Aug 2003
    Messages:
    69,782
    Thanks Received:
    2,858
    Location:
    London
    Country:
    United Kingdom
    Yellow and green&yellow (or yellow&green) are not the same.

    The clue is in the names describing the colour(s) not being the same.

    On a more general note, what are your thoughts on the wisdom of someone who thinks that it's OK for a switch to be wired so that it directly connects live to earth doing electrical work?

    Or the sort of person who thinks that it's OK for a switch to be wired so that it directly connects live to neutral?
