Drayton RTS1 stat to a Heatmiser DT-TS

[zexel]

HI

I want to replace my mechanical Drayton RTS1 stat to a digital Heatmiser DT-TS.

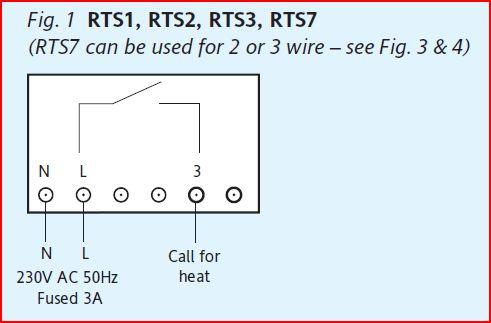

I have four existing wires (one being an earth,not being used), three wires are connected to the Drayton RTS1 : RED - L, BLUE - N and YELLOW - 3.

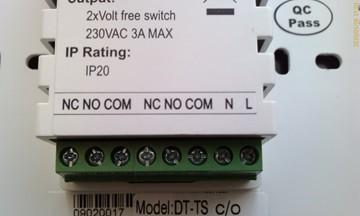

On the Heatmiser DT-TS unit the connections are: NC - NO - COM - N - L.

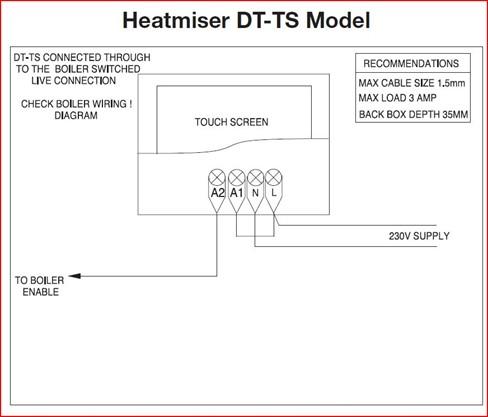

In the wiring manual for the Heatmiser it has an A1 and A2. What is A1 and A2? I just want to know where to put my existing wires into the Heatmisers units NC NO COM N L?

I'm presuming the Neutral and Live will be the blue and red. Is that another wire from A1 - L in the Heatmiser?

For information the boiler is an Ideal Classic NF60 and an ACL (Lifestyle) LP112 programmer.

Many thanks all.

Untitled

• zexel
• 6 Jan 2010
• 1

Untitled

• zexel
• 6 Jan 2010
• 1

Untitled

• zexel
• 6 Jan 2010
• 1



[londonboy]

Red = L
Blue = N
Yell = A2

Put a wire link between L and A1.

Hope this helps.



[londonboy]

A1 = common
A2 = NO (normally open)



[zexel]

Excellent, thanks for that.
