Honeywell Y80RF connection

D

darrenh

Joined
11 Feb 2004
Messages
344
Reaction score
2
Country
United Kingdom
Hi all

have this Honeywell controller
http://www.free-instruction-manuals.com/pdf/pa_1149669.pdf

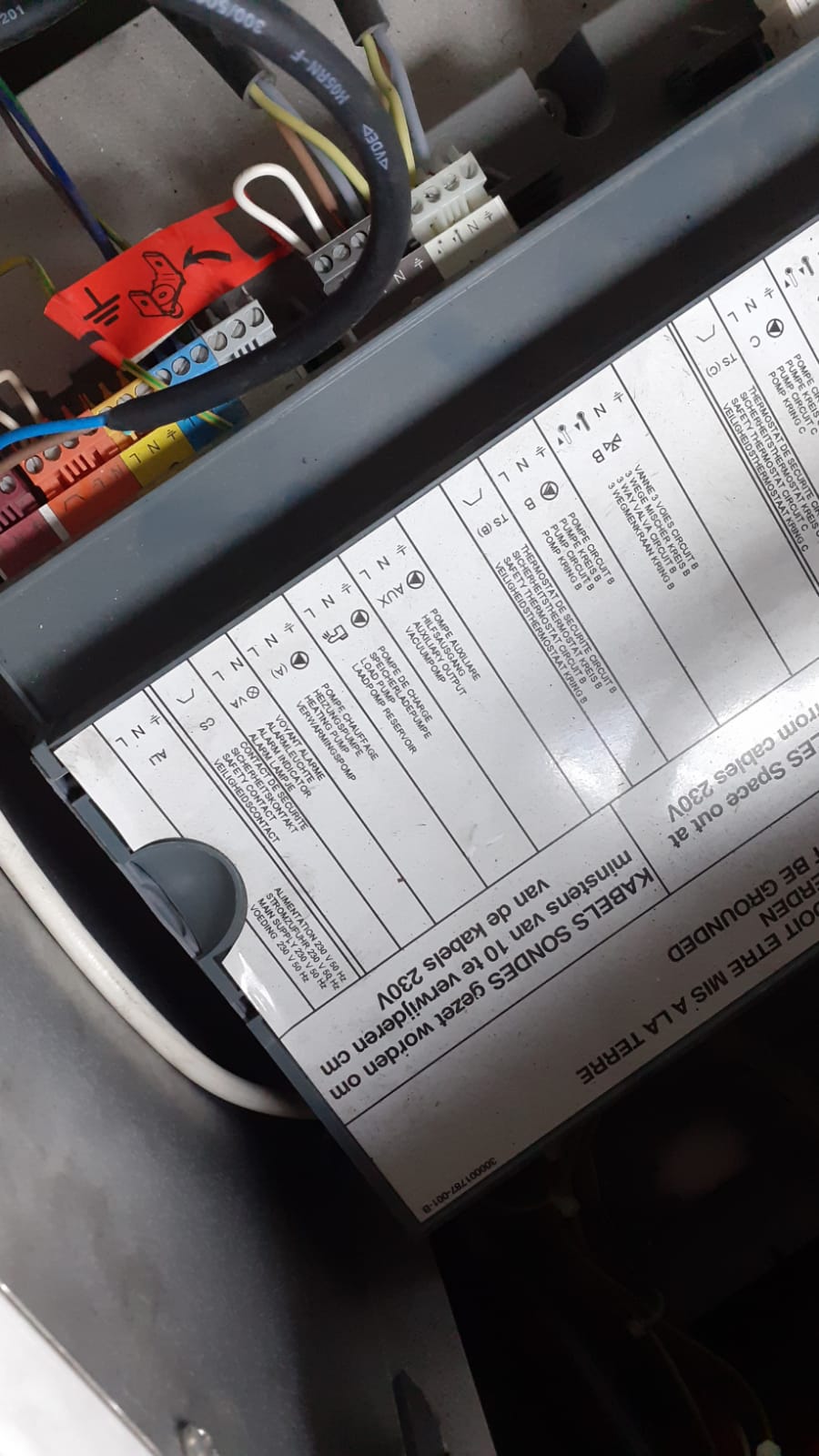

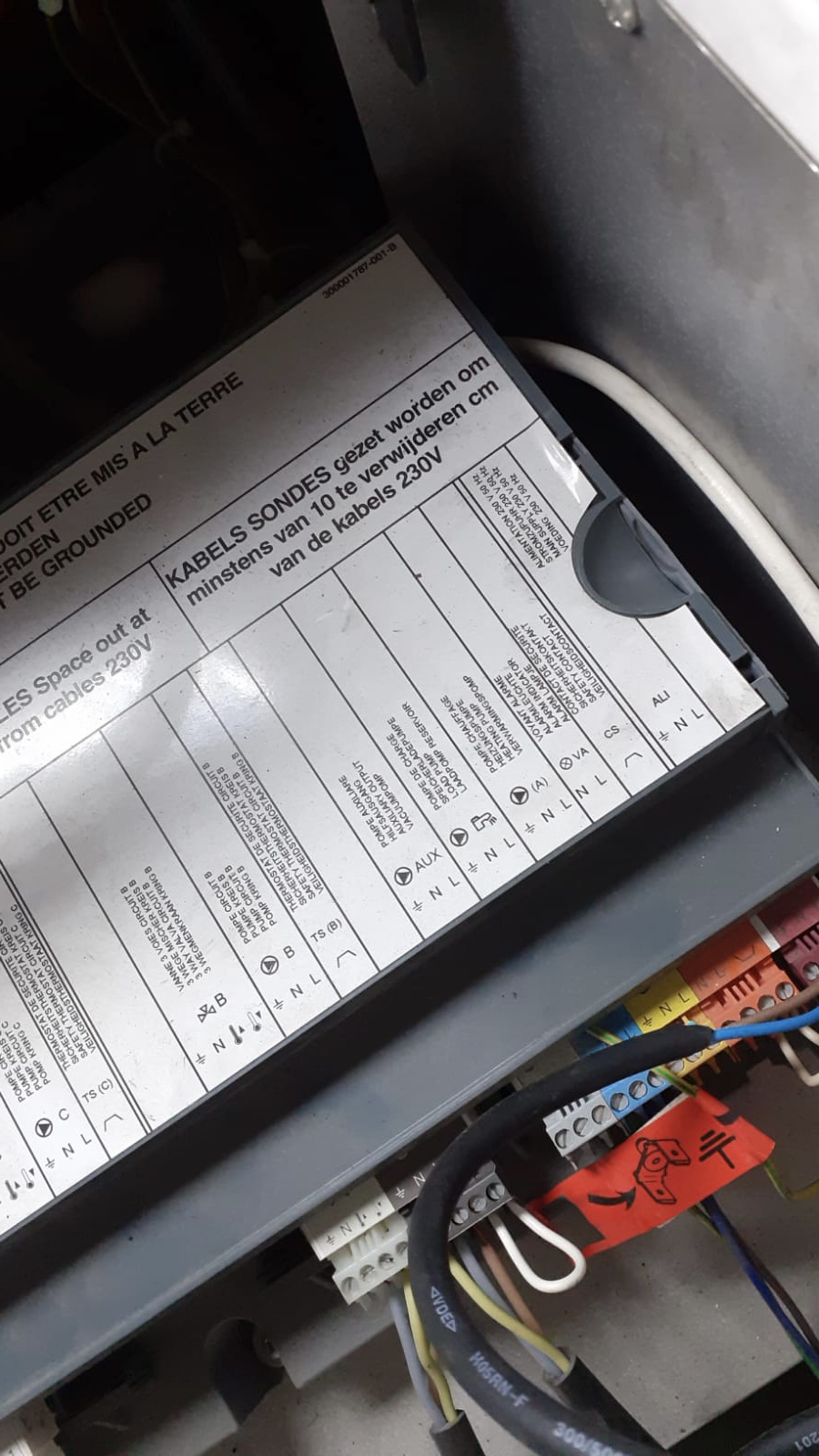

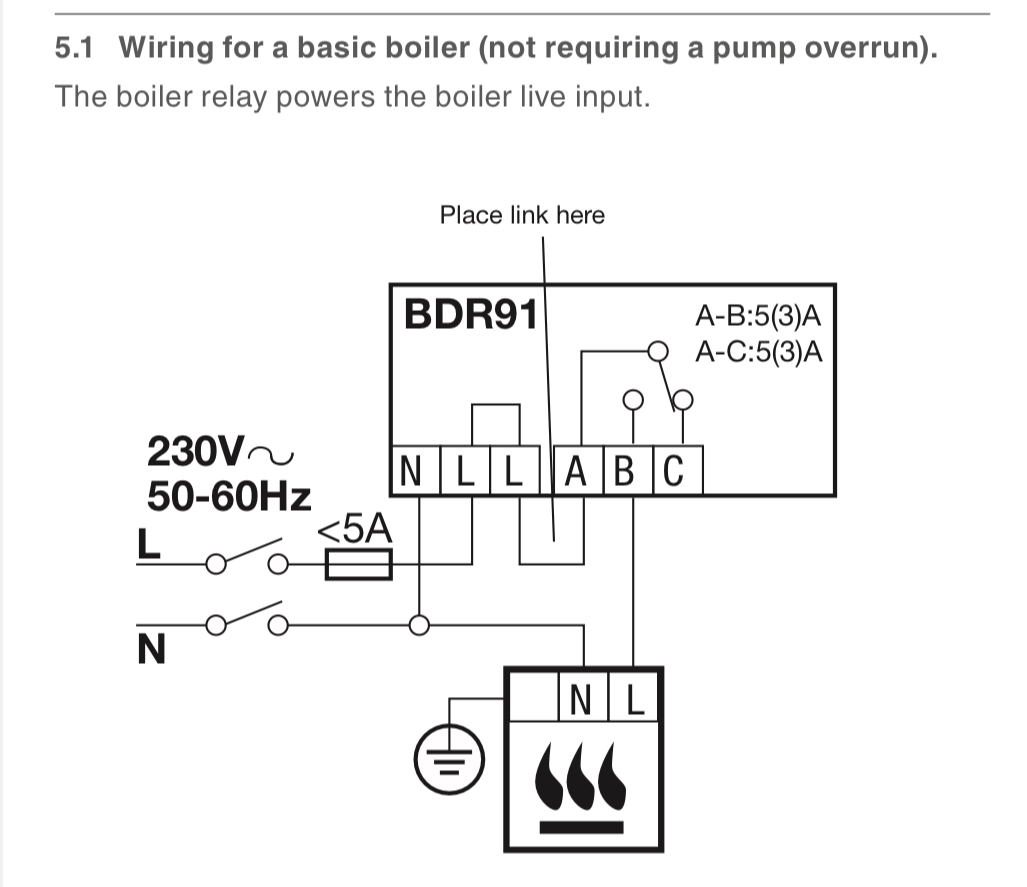

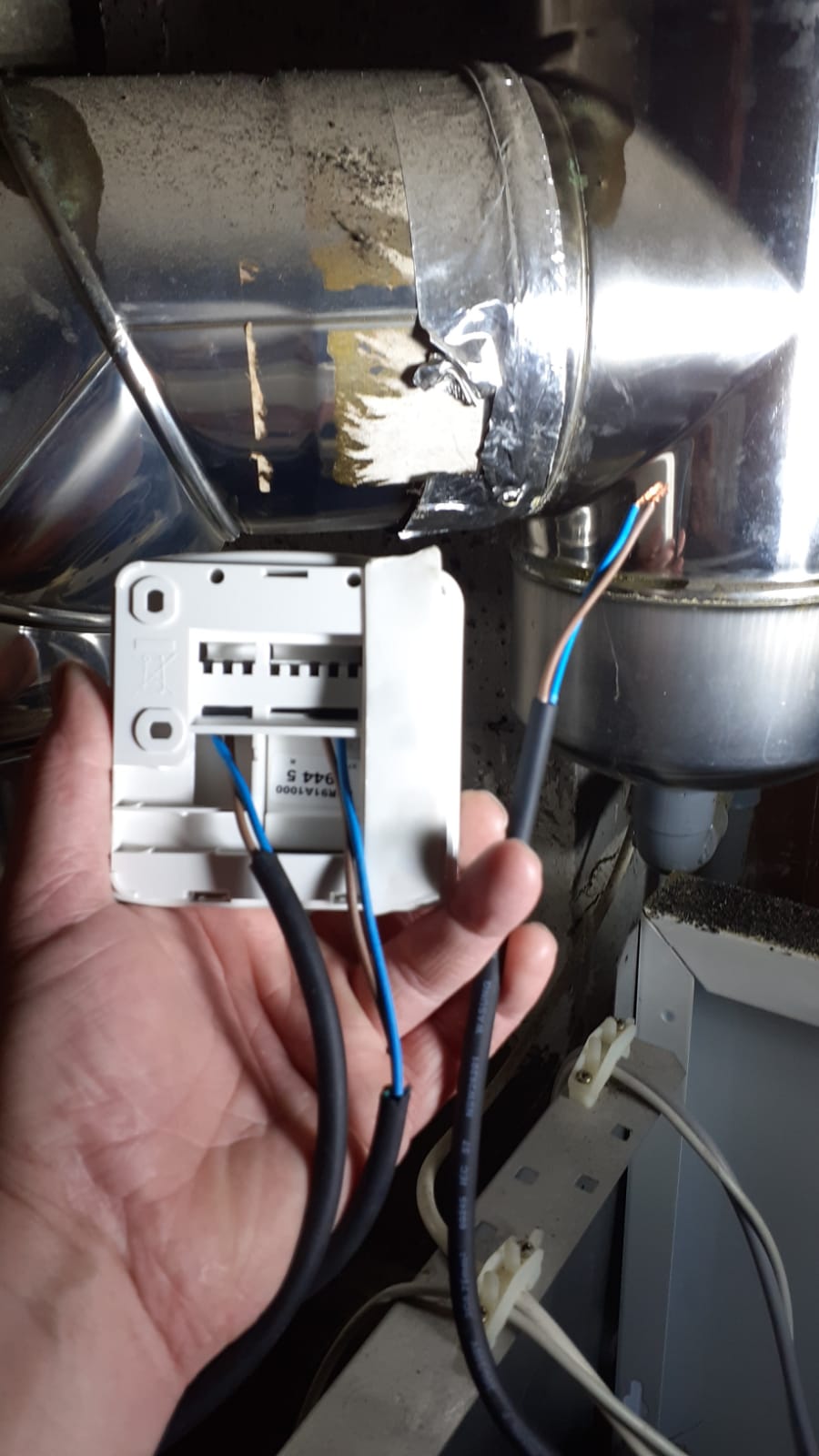

Struggling to determine where the connection from the Honeywell controller relay should connect to the boiler. Below is the wiring diagram from the Honeywell controller and below it the boiler electrical panel. It was fitted but inadvertently removed …

any help appreciated
