Foundation design - drain crossing at corner

Discussion in 'Building Regulations and Planning Permission' started by mfarrow, 13 Mar 2019.

  1. mfarrow

    mfarrow

    Joined:
    2 Nov 2009
    Messages:
    2,113
    Thanks Received:
    242
    Location:
    Warwickshire
    Country:
    United Kingdom
    Hi

    I'm in the middle of a discussion with the BCO regarding the proposal to cross the corner of an extension where an existing 4" drain sits.

    The drain sits at a centreline of 530mm below ground level, so around 470mm above the bottom of any trench.

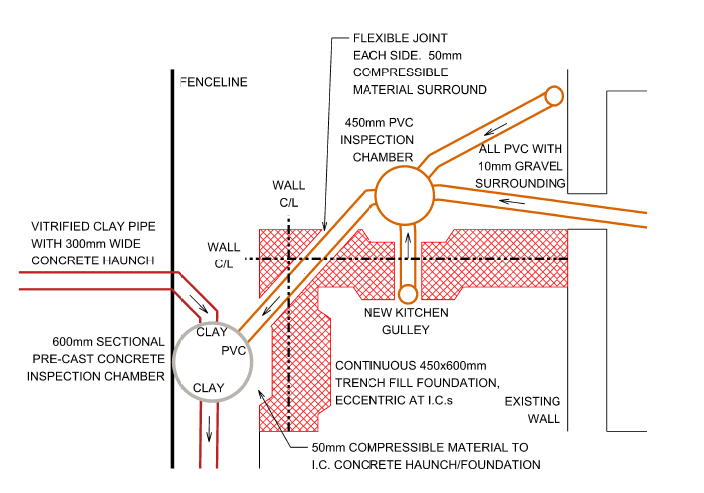

    I proposed a full fill foundation with 50mm compressible material around the drain:
    Rear Extension - original proposal.png

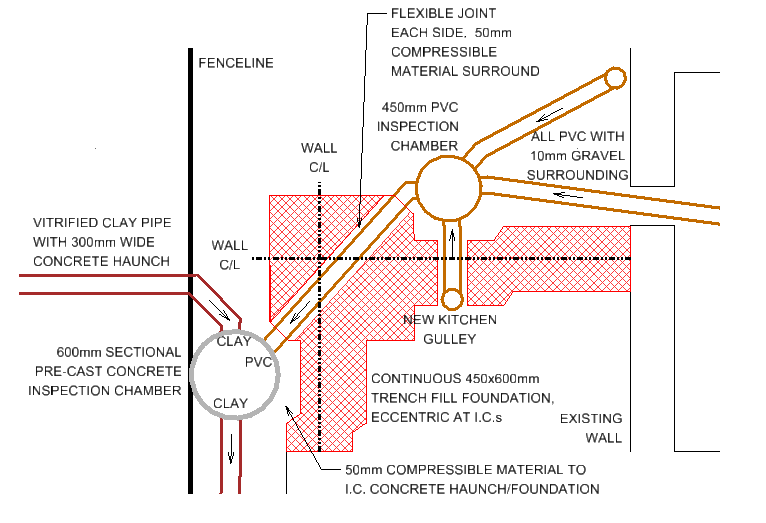

    This was rejected by the BCO, who requested a 1m^2 pad foundation with lintels in a T-shape, which I felt would be too busy and confuse the build process. I therefore proposed the design below, i.e. increasing the ground bearing area in the corner, so the load would be spread equivalent to having a strip foundation built. Loads would be nicely spread around the drain using standard C20/GEN3 concrete:
    Rear Extension - revised proposal.png

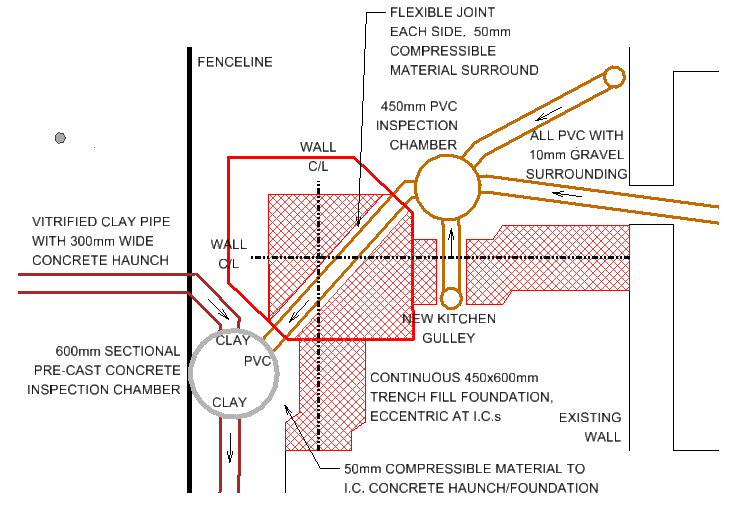

    BCO has stated they believe this is fundamentally wrong, and has asked for the design as below:
    Rear Extension - BCOs proposal.png

    Personally, I don't see the point of an eccentric lump of concrete outboard of the corner, but I would value your opinion.

    Thanks
    Mike

  2. noseall

    noseall

    Joined:
    2 Feb 2006
    Messages:
    34,025
    Thanks Received:
    2,142
    Location:
    Staffordshire
    Country:
    United Kingdom

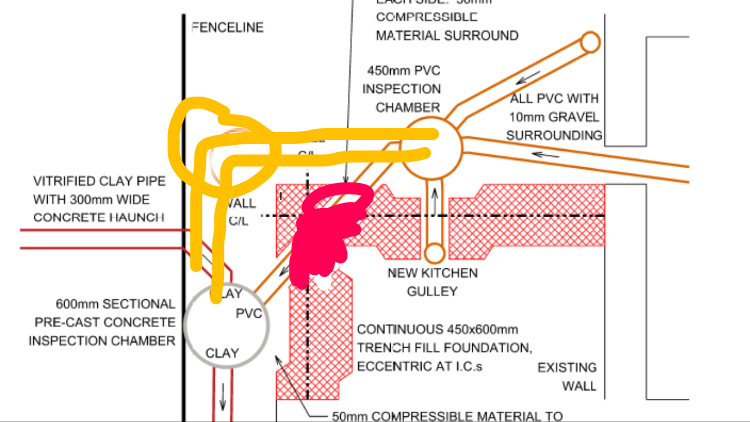

    Begs the question.....why on earth don't you extend that IC over to the corner, if the only reason for present positioning is that poxy kitchen gully?

    • Like Like x 1
  3. mfarrow

    mfarrow

    Joined:
    2 Nov 2009
    Messages:
    2,113
    Thanks Received:
    242
    Location:
    Warwickshire
    Country:
    United Kingdom
    Good point, but I'm not sure I could lose the step in the IC, it was very close when installed originally (ie small block of wood under a 1.8m level to get level).

  4. tony1851

    tony1851

    Joined:
    23 Feb 2012
    Messages:
    9,054
    Thanks Received:
    1,347
    Location:
    Manchester
    Country:
    United Kingdom
    Have you or the bco considered Ancon stainless steel ladder reinforcement in the bed joints of the first few courses above the concrete?
    This would turn the below-ground brick/blockwork into a beam capable of cantilevering the wall over the pipe; the distance the wall would project beyond the pipe does not look to be very much.

    https://www.ancon.co.uk/products/masonry-reinforcement/

  5. Ian H

    Ian H

    Joined:
    14 Sep 2010
    Messages:
    5,630
    Thanks Received:
    613
    Location:
    Rochdale
    Country:
    United Kingdom

    You could probably loose the chamber on the right.

  6. ^woody^

    ^woody^

    Joined:
    3 Sep 2006
    Messages:
    26,051
    Thanks Received:
    3,198
    Location:
    West Mids
    Country:
    United Kingdom
    Just have one manhole on the corner

  7. noseall

    noseall

    Joined:
    2 Feb 2006
    Messages:
    34,025
    Thanks Received:
    2,142
    Location:
    Staffordshire
    Country:
    United Kingdom
    Fchuck me I've got an echo or two oo oo oo.

    • Like Like x 1
  8. Ian H

    Ian H

    Joined:
    14 Sep 2010
    Messages:
    5,630
    Thanks Received:
    613
    Location:
    Rochdale
    Country:
    United Kingdom
    Oo oo

  9. wessex101

    wessex101

    Joined:
    4 Jul 2013
    Messages:
    1,013
    Thanks Received:
    168
    Location:
    Dorset
    Country:
    United Kingdom
    Imitation is the highest form of flattery.

  10. ^woody^

    ^woody^

    Joined:
    3 Sep 2006
    Messages:
    26,051
    Thanks Received:
    3,198
    Location:
    West Mids
    Country:
    United Kingdom
    How does one extend a manhole? Does it need a bigger lid?

    • Like Like x 1
  11. Ian H

    Ian H

    Joined:
    14 Sep 2010
    Messages:
    5,630
    Thanks Received:
    613
    Location:
    Rochdale
    Country:
    United Kingdom
    It possible but it’s an ass of a job

    • Like Like x 1
  12. noseall

    noseall

    Joined:
    2 Feb 2006
    Messages:
    34,025
    Thanks Received:
    2,142
    Location:
    Staffordshire
    Country:
    United Kingdom

    That donkey knew wot I meant. I could be a designer me. I just need the correct helmet.

  13. ^woody^

    ^woody^

    Joined:
    3 Sep 2006
    Messages:
    26,051
    Thanks Received:
    3,198
    Location:
    West Mids
    Country:
    United Kingdom
    Ee aww

  14. mfarrow

    mfarrow

    Joined:
    2 Nov 2009
    Messages:
    2,113
    Thanks Received:
    242
    Location:
    Warwickshire
    Country:
    United Kingdom
    Just to close the thread, which I forgot to do, the Ancon solution was considered a "nice idea" but ultimately they needed calculations to justify it, so big old lump of concrete it is.

    On the "new chamber in corner" idea, yes this would be good except I know the falls in the sewer pipe are around 1:200, so this isn't practicable with a plastic manhole (where you get a step between side entry and exit) unless the builders can find a step-free one and have their wits very much about them when installing the inlet/outlet (and an even smaller block of wood on the level than I used originally).

    Or the pipe would need to be actually level, as opposed to practically level... if you catch my drift.

  15. Ian H

    Ian H

    Joined:
    14 Sep 2010
    Messages:
    5,630
    Thanks Received:
    613
    Location:
    Rochdale
    Country:
    United Kingdom
    There are step free ones to go round a bend and with a single junction.

    • Thanks Thanks x 1
