Potterton to Hive Wiring Assistance

[Tom3770]

Hi All,

Newbie here and after some advice if possible.
I have done lots of reading on previous posts regarding the wiring from Potterton to Hive however now I have taken the front off my Potterton controller my wiring seems lightly different.

Wondered if someone can help me out with the wiring please.....

https://ibb.co/Dz3VzTG

https://ibb.co/n0f5T3y

https://ibb.co/30tdNQL


Thanks in advance



[Tom3770]



[Tom3770]

If it helps...

We have a single wired room stat...

And it's a megaflow unvented cylinder.

Hope this helps.



[muggles]

What are you stuck on? Don't know where to start? Do you have the two channel Hive?



[Tom3770]

Hi,

Yes it's a 2 channel HIVE
and yes really I know the L and N wires will go into the HIVE as L and N.

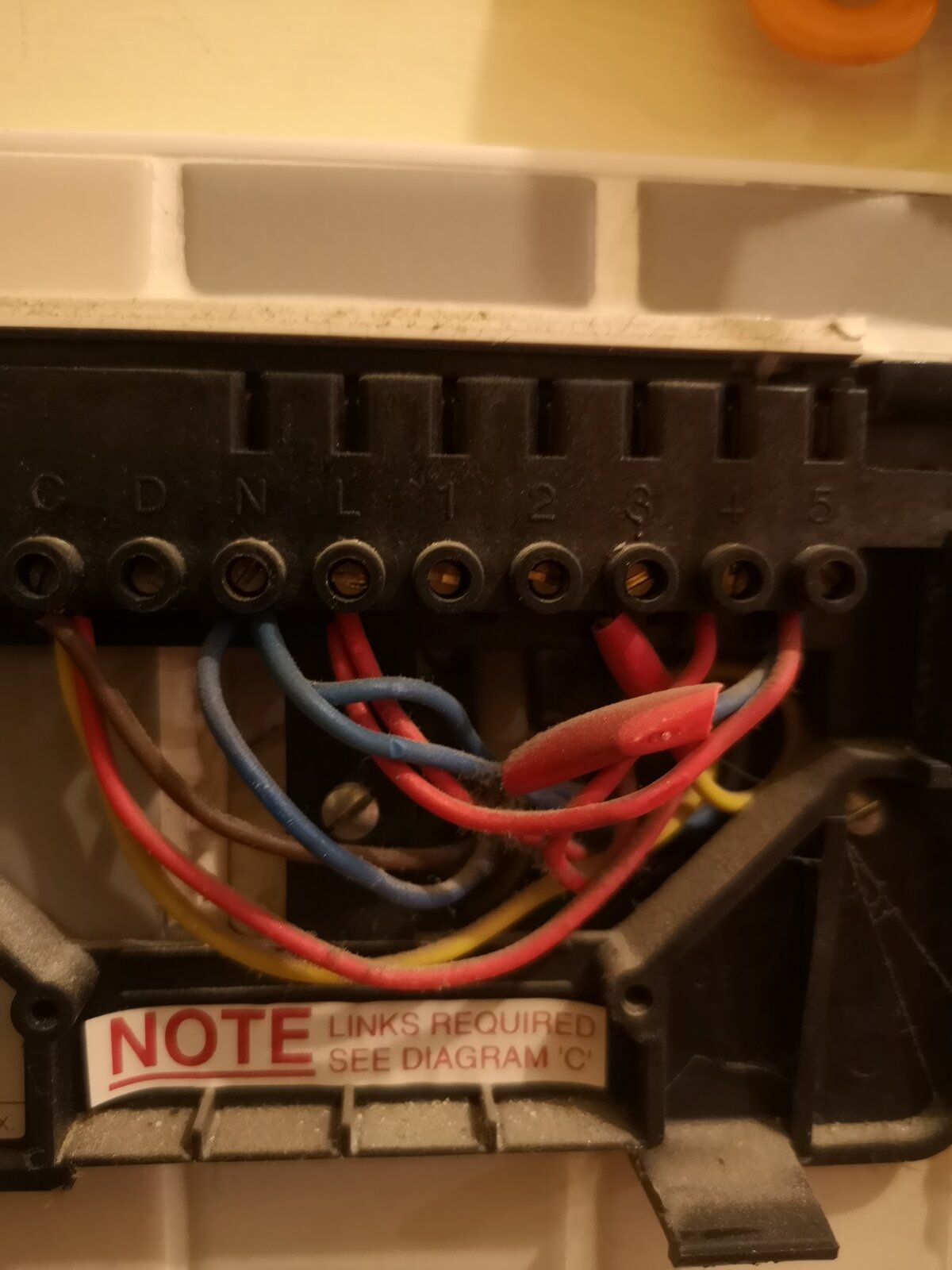

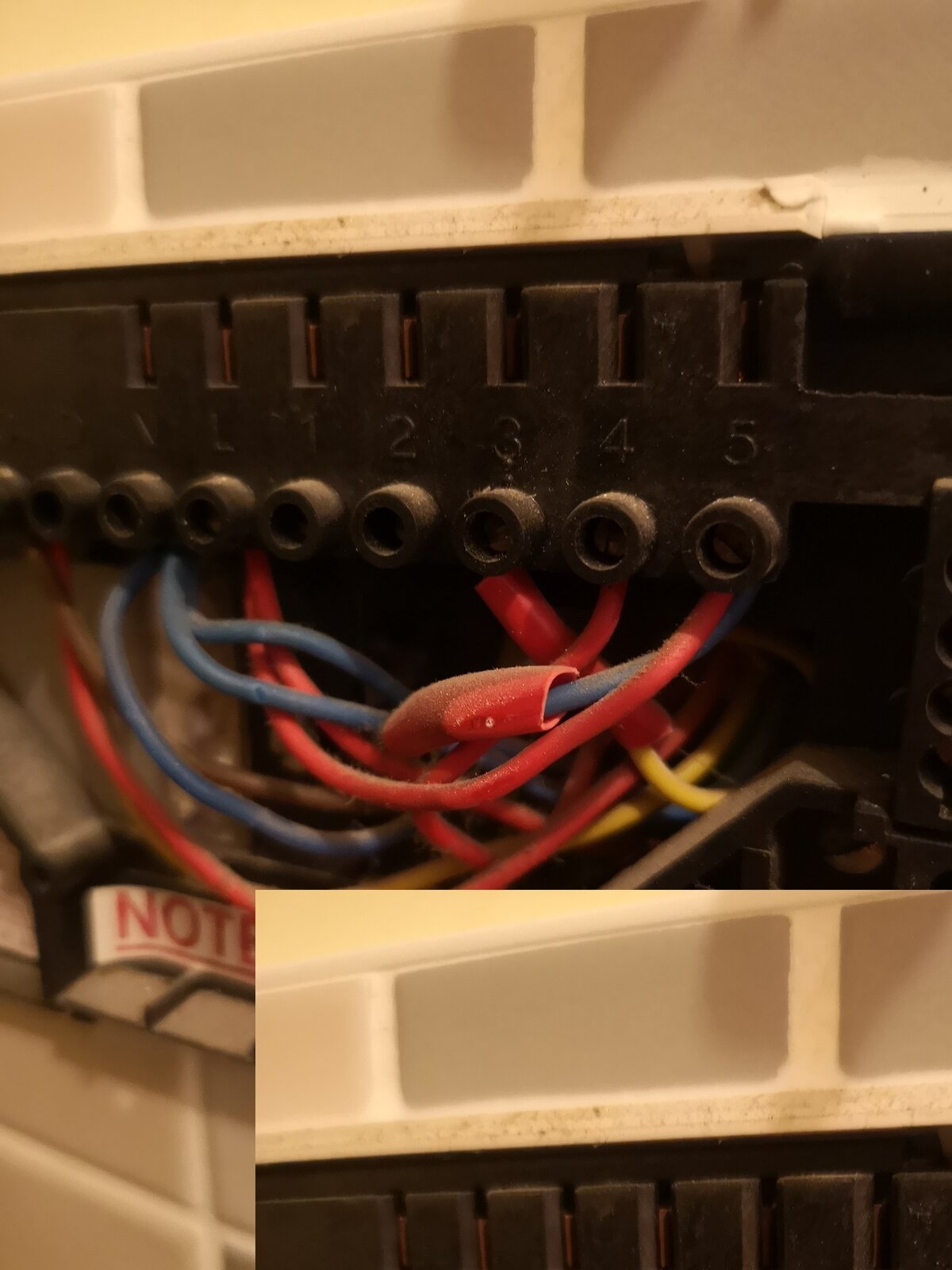

I have read I don't need the jumper wire however in terminal 5 on my pictures there is a blue cable with red sleeve.

What happens to this cable?
And just need some help with the other cables?



[Tom3770]

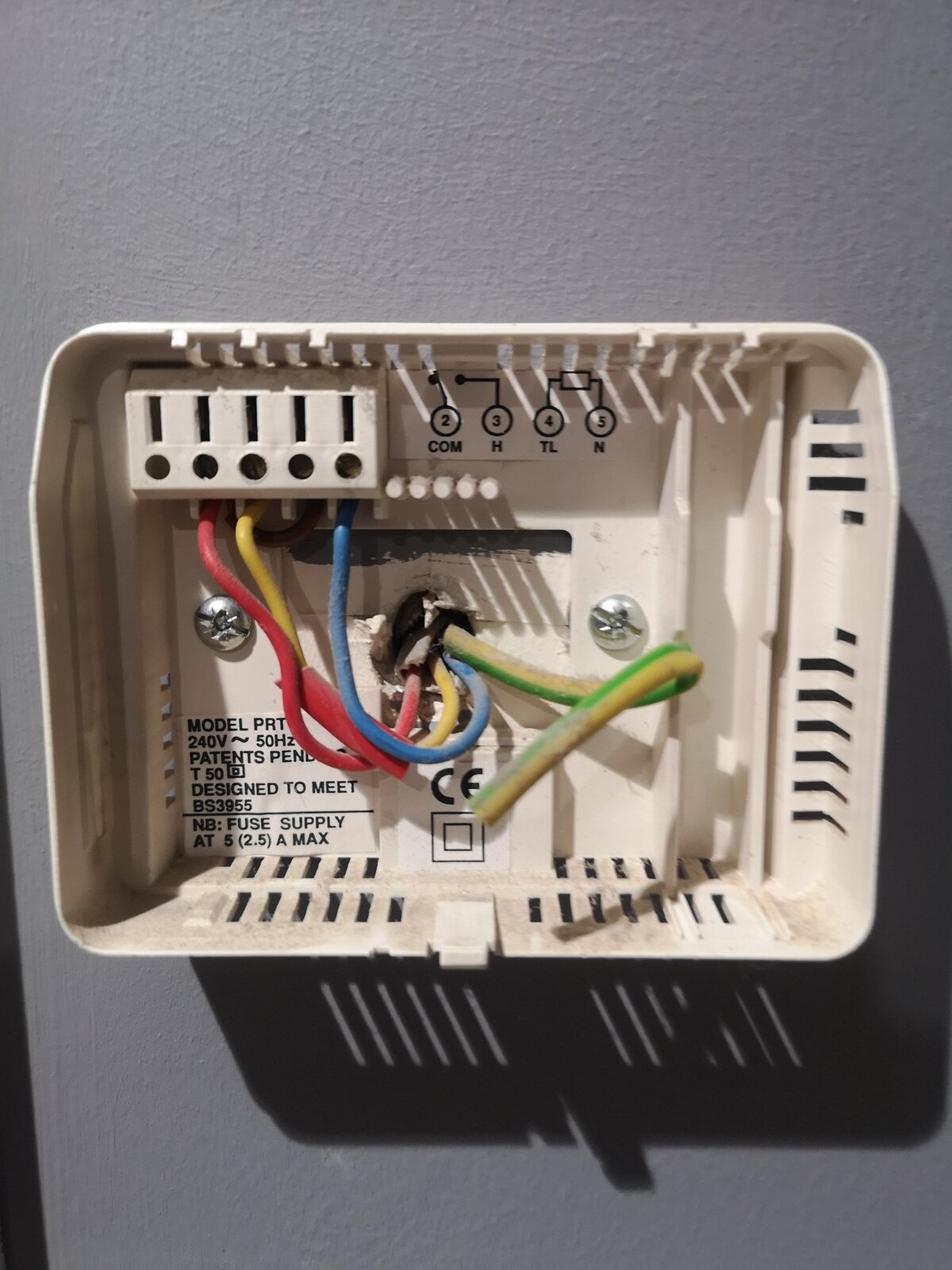

Room Stat Wiring

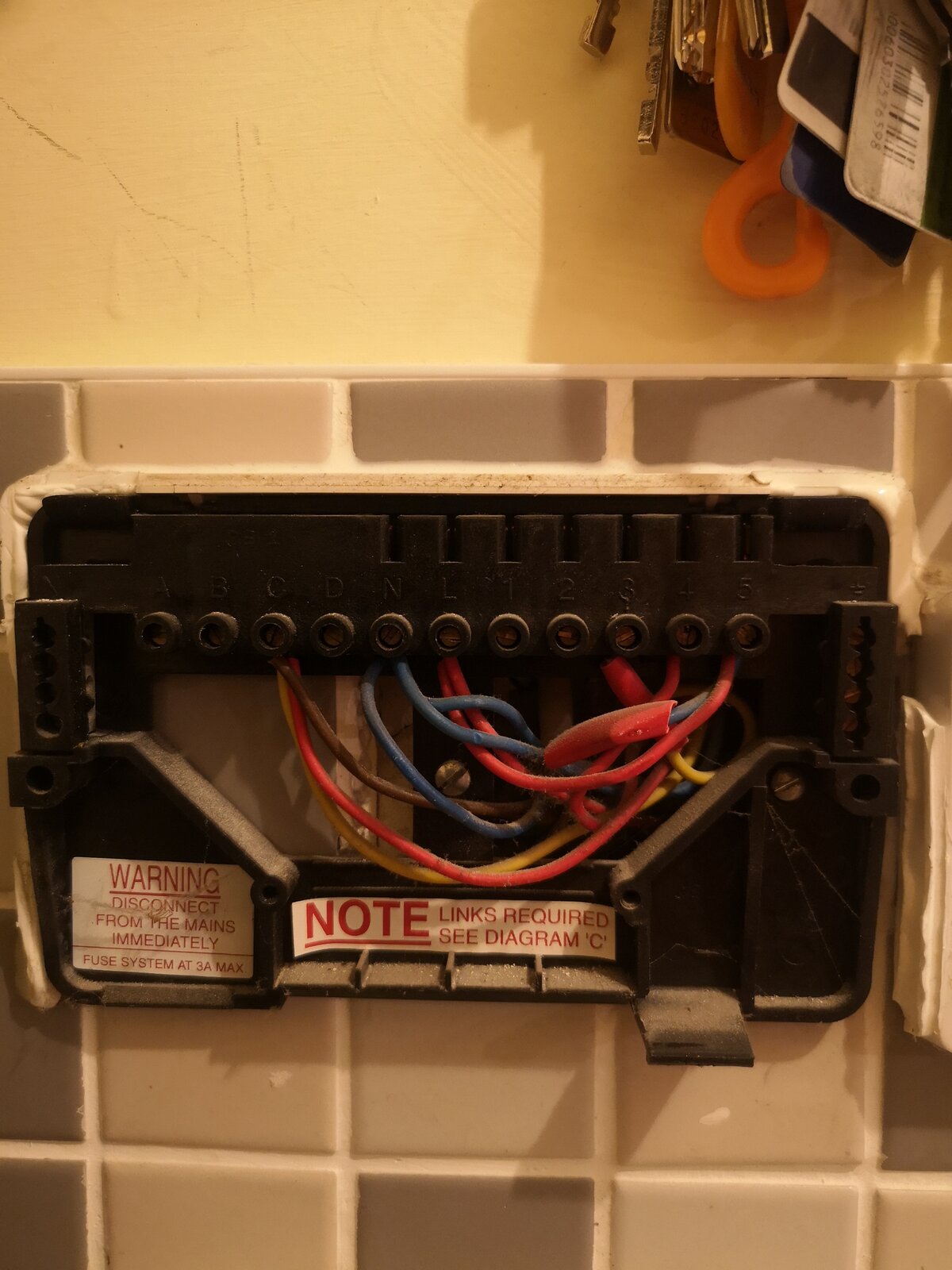

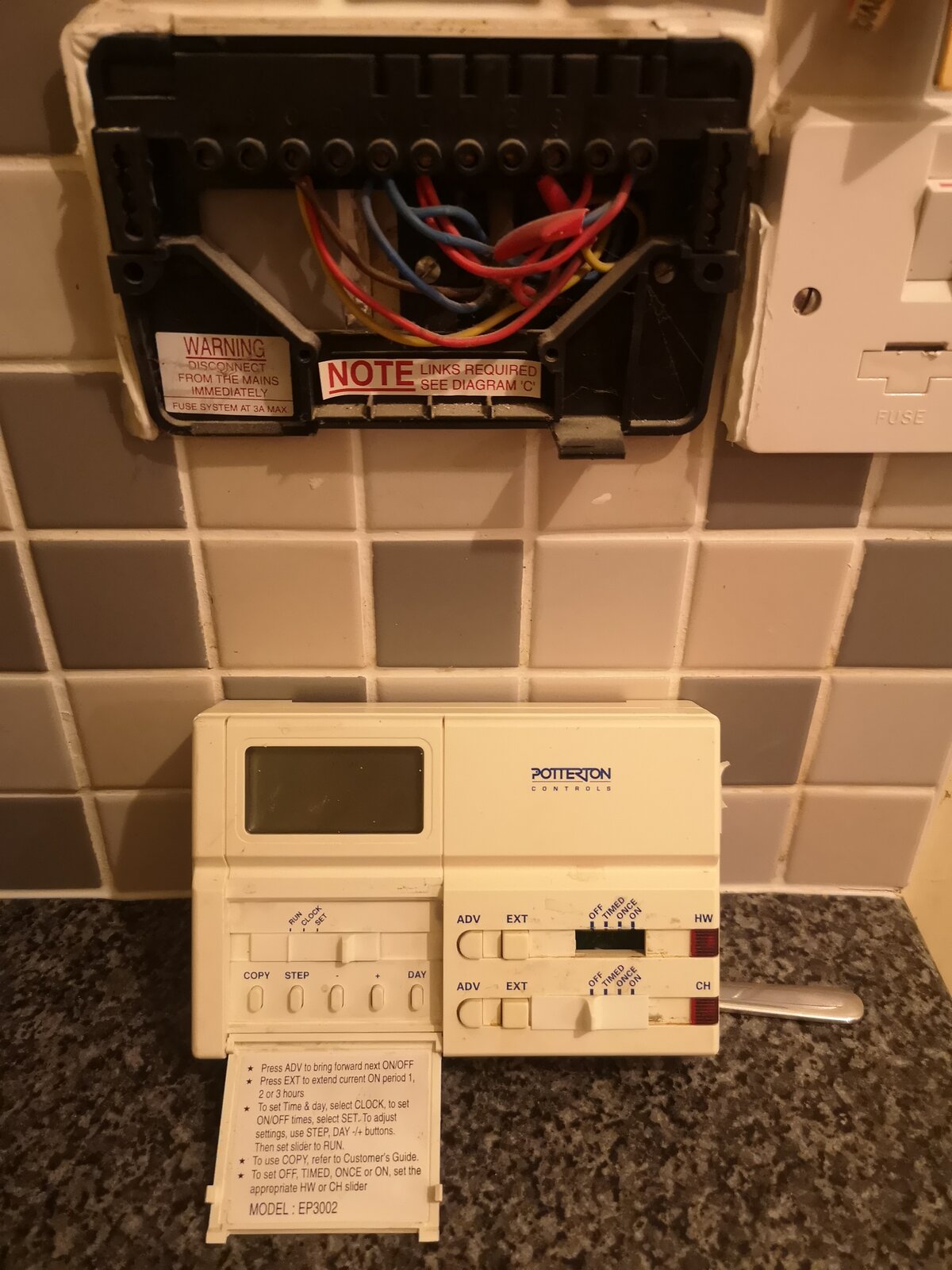

Controller picture



[Tom3770]

Hope that helps somebody .
