Bathroom Extractor Wiring

Discussion in 'Electrics UK' started by Glyn1959, 21 Mar 2020.

  1. Glyn1959

    Glyn1959

    Joined:
    23 Jan 2003
    Messages:
    225
    Thanks Received:
    1
    Country:
    United Kingdom
    Hi I had a sparky wire an extractor in a new bathroom with an isolator switch outside on the landing. I couldn’t understand why sometimes it worked and sometimes it didn’t!
    I removed the fan returned it to Toolstation and fitted a replacement and still the same.
    I checked the wiring in the switch and the permanent live was wired to L1 and the switch live to L2 whereas YouTube videos showed the opposite. I changed them around but no difference.
    I turned the bathroom light on and had a lightbulb moment literally.
    I was under the impression that the isolator switch alone drive the fan and not the light pull cord too - how embarrassing
    All is working now however which wiring is correct? Permanent to L1 or L2?
    Thanks for your patience.

  2. Sponsored Links
  3. jj4091

    jj4091

    Joined:
    1 Dec 2006
    Messages:
    4,716
    Thanks Received:
    407
    Location:
    Cumbria
    Country:
    United Kingdom
    Should be a triple pole switch so either way round is ok.

  4. muffking

    muffking

    Joined:
    2 Dec 2004
    Messages:
    402
    Thanks Received:
    23
    Location:
    Lincolnshire
    Country:
    United Kingdom
    Is it a timer fan. i.e. is it supposed to run for a while after you turn the light off?
    If so, then an L1-L2 reverse will stop the timed part from working.

  5. Glyn1959

    Glyn1959

    Joined:
    23 Jan 2003
    Messages:
    225
    Thanks Received:
    1
    Country:
    United Kingdom
    Hi thanks for the replies. It is a timer fan and I have just tried it and it went off after 25 mins. Based on this I can only assume that the sparky didn’t test the timer based on muffking’s reply. Does that make sense?

  6. EFLImpudence

    EFLImpudence

    Joined:
    7 Jul 2010
    Messages:
    32,212
    Thanks Received:
    3,494
    Location:
    Retired to:
    Country:
    Portugal
    Glyn,

    L1 , L2 & N are just markings on the plastic.
    They have no bearing on which wire is connected to them.

    It could be A, B & C.
    They are just three switches operated at the same time?

  7. Glyn1959

    Glyn1959

    Joined:
    23 Jan 2003
    Messages:
    225
    Thanks Received:
    1
    Country:
    United Kingdom
    Hi just to clarify are you contradicting what muffking said?

  8. EFLImpudence

    EFLImpudence

    Joined:
    7 Jul 2010
    Messages:
    32,212
    Thanks Received:
    3,494
    Location:
    Retired to:
    Country:
    Portugal
    Yes.

    What he said only applies if you connect the wires going in to the switch with different wires coming out - whether they are in L1, L2 or N is irrelevant.

  9. Glyn1959

    Glyn1959

    Joined:
    23 Jan 2003
    Messages:
    225
    Thanks Received:
    1
    Country:
    United Kingdom
    That’s clear. Thanks for that

  10. Sponsored Links
  11. muffking

    muffking

    Joined:
    2 Dec 2004
    Messages:
    402
    Thanks Received:
    23
    Location:
    Lincolnshire
    Country:
    United Kingdom
    That's what I meant by L1-L2 reverse. I could have said L & SL reverse, but the OP may not have understood, plus we don't know out of L1 & L2 which is L and which is SL, so I simplified it as an L1-L2 reverse on a timed fan makes it run only when the light & isolator are on.

  12. jj4091

    jj4091

    Joined:
    1 Dec 2006
    Messages:
    4,716
    Thanks Received:
    407
    Location:
    Cumbria
    Country:
    United Kingdom
    Yes but he is talking about a triple pole isolator not a light switch, so it does not matter if you reverse them as the output of both terminals is always live with the switch turned on, there is no live or switched live. just 2 lives.

  13. EFLImpudence

    EFLImpudence

    Joined:
    7 Jul 2010
    Messages:
    32,212
    Thanks Received:
    3,494
    Location:
    Retired to:
    Country:
    Portugal
    This is getting confused. There is a permanent live and switched live.

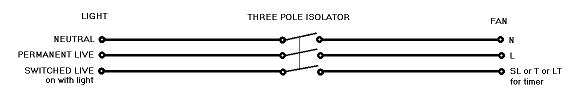

    Here is a simple diagram:
