BGmpsv-23 pcb removal

[hoka]

hi all
i'm new here so I might be asking in the wrong place
I have a British Gas BGMPSV-23 mid position actuator which is faulty, ive tested the motor which works ok and i'm now looking to remove the pcb so that i can test the micro switches (the resistors and diode also test ok)
i did think it would just slide out but something is stopping that happening
any help would be much appreciated (i'm an electronics eng.)
thanks
Dave



[Deleted member 267285]

Why do you need to remove the pcb? Afaik you can just test voltages when demands created which will confirm if the switches are making or not.



[Rodders53]

I have a British Gas BGMPSV-23 mid position actuator which is faulty, ive tested the motor which works ok and i'm now looking to remove the pcb so that i can test the micro switches (the resistors and diode also test ok)

BG MVSP-23 aka Drayton MA1 mid position valve. Yep... Check that NO closes and opens as expected positions are reached via a multimeter.

Only ever worked on the MA5 2-port version. But once the motor etc is removed then PCB access is pretty straightforward I think? Check the actuating plastic 'pips' are clean and grease free... On the MA5 I fixed they stuck 'calling for heat' with no mechanical input. Cleaning didn't help for very long.

http://www.seered.co.uk/drayton.htm might help?



[hoka]

Hi Chris

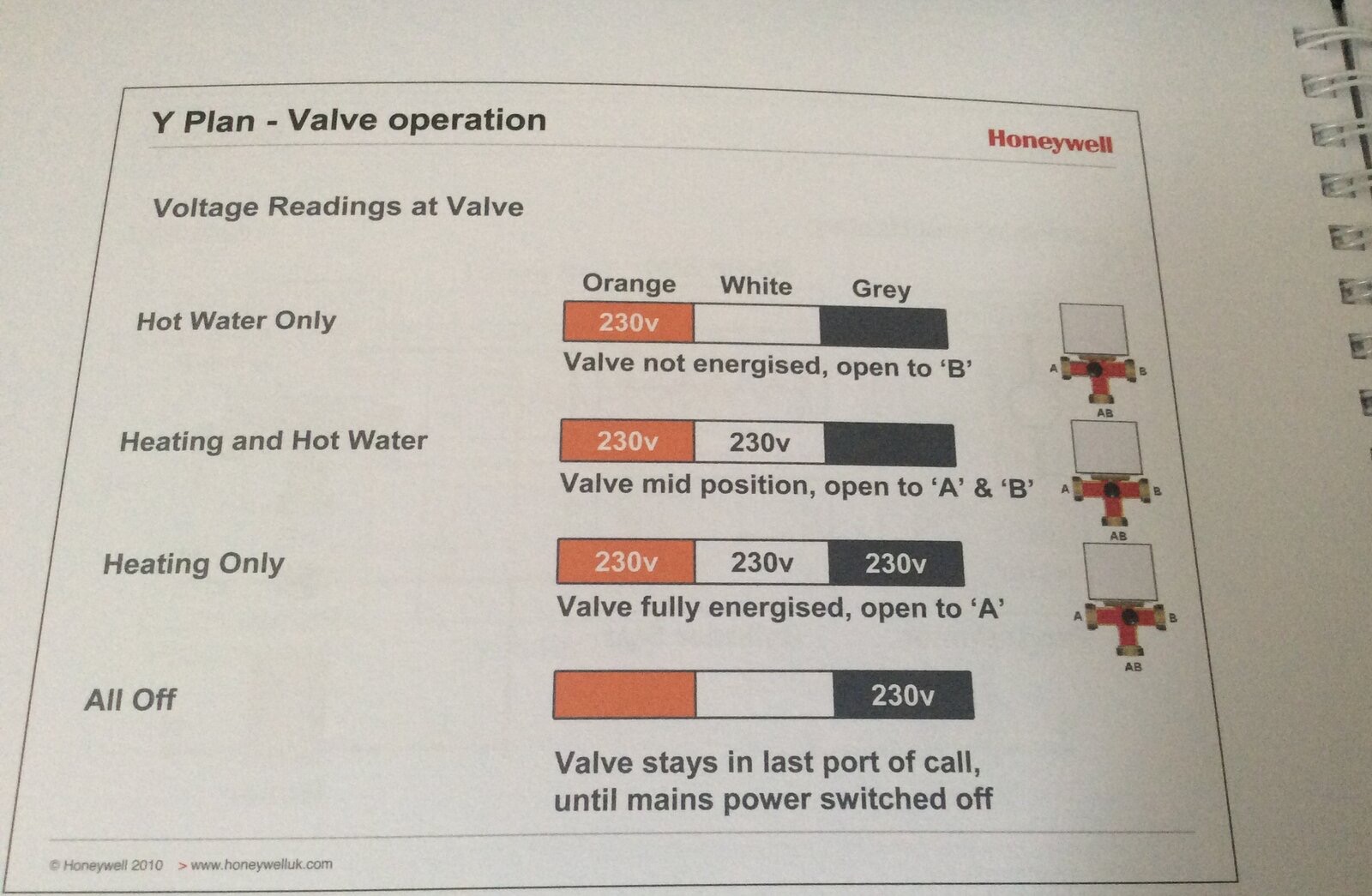

thanks for coming back to me your switching diagram is very useful i will test using it and see where it takes me
cheers
Dave



[hoka]

hi again Chris your picture proved vey useful, i have been able to establish that its the lower of the two micro switches which is faulty so if i cant remove the pcb then i'll need to buy a replacement unit. Do you have any ideas
Dave



[Deleted member 267285]

then i'll need to buy a replacement unit. Do you have any ideas
Dave

Hi Dave,

Rodders above said it’s a rebadged Drayton MA1, so a new one of these should fit.



[hoka]

thanks everyone for your help, i guess its a new one
cheers
Dave



[Rodders53]

The board will come out after removal of the two brass machine screws through the microswitches holes that is holding it in place. Photos as per the link I posted. Unless they've altered the design significantly and they are no longer screws?

Or a new one will fix it.
Head alone may be more than a complete valve from some places.
