Evohome BDR91 connection with Worcester 28CDI

Discussion in 'Plumbing and Central Heating' started by bikeydz, 19 May 2016.

  1. bikeydz

    bikeydz

    Joined:
    19 May 2016
    Messages:
    2
    Thanks Received:
    0
    Country:
    United Kingdom
    Hi

    I have bought a Evohome WiFi Connected Thermostat Pack (ATP921R3100) and the HR92 radiator valves.

    Please can you help in getting BDR91 relay box connected to the boiler.

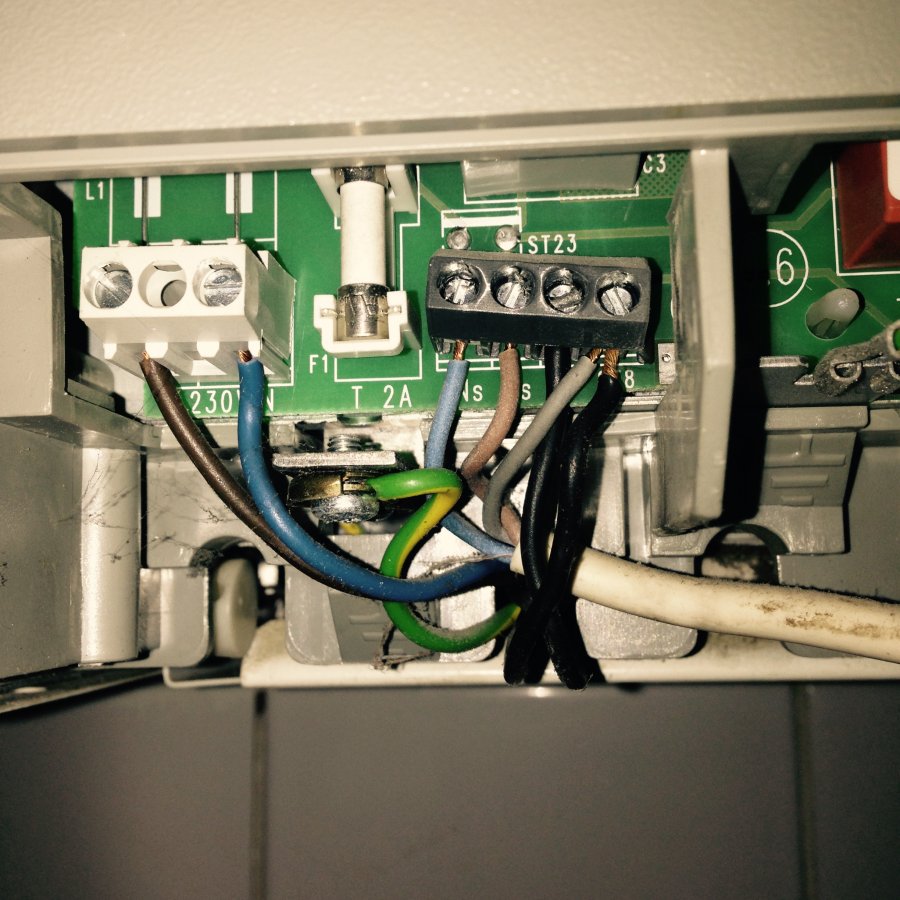

    The actual connections of the boiler are as pictured:
    [​IMG]

    the main cable has 5 cables (brown, blue, green yellow and two black)

    the white cable in the picture has (blue, brown and grey) which I believe it is going to the thermostat

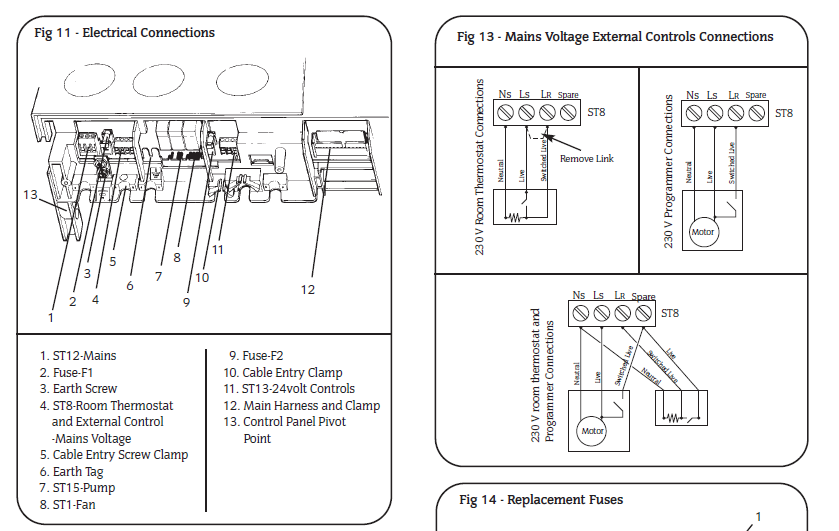

    The boiler manual:
    [​IMG]

    Many thanks


    Attached Files:

  2. Dan Robinson

    Dan Robinson

    Joined:
    1 Jul 2007
    Messages:
    56,042
    Thanks Received:
    9,424
    Location:
    Hertfordshire & London
    Country:
    United Kingdom
    If you can't figure out fig 13 then call a professional.

    Last edited: 20 May 2016
  3. muggles

    muggles

    Joined:
    28 Oct 2005
    Messages:
    11,277
    Thanks Received:
    2,292
    Location:
    Daventry
    Country:
    United Kingdom
    This
    If you can't work out that very simple wiring, you have absolutely no hope of being able to set up your Evohome successfully - it's not really designed for DIY installation and Honeywell won't help you
