Extractor Fan Wiring

[Maxsys]

Hi All,

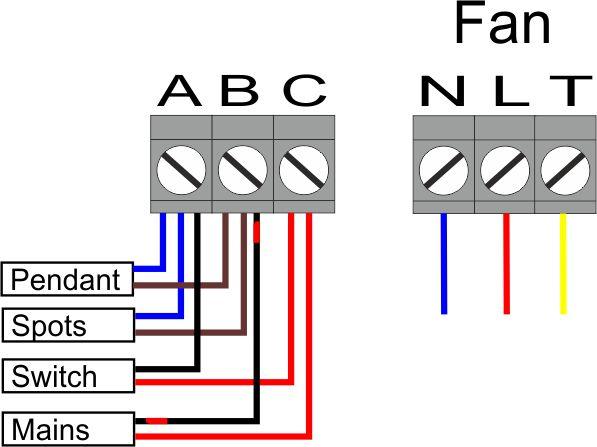

I have an Airflow Icon 30 fan with timer module for my bathroom, the module has the terminals N L & T on it, i am assuming that N = Neutral, L = Permanent Live and T = Switch live, in that case the attached should be wired i think N goes to A L goes to C and T goes to B is that correct or am i wrong? Cable from the fan is 3 core + earth.

Untitled

• Maxsys
• 30 Nov 2011
• 1



[Chri5]

http://www.tlc-direct.co.uk/Technical/DataSheets/Aidelle/iCON_230V.pdf

Wiring dia B



[Maxsys]

Thanks sorted it
