Help with Alarm PIR Wiring

Discussion in 'Alarms, CCTV & Telephones' started by curtly, 27 Aug 2020.

  1. curtly

    curtly

    Joined:
    6 Feb 2003
    Messages:
    36
    Thanks Received:
    0
    Country:
    United Kingdom
    Hi everyone, would like a bit of advice regarding the wiring and replacing of an old PIR. This PIR is in series with another one for the Zone

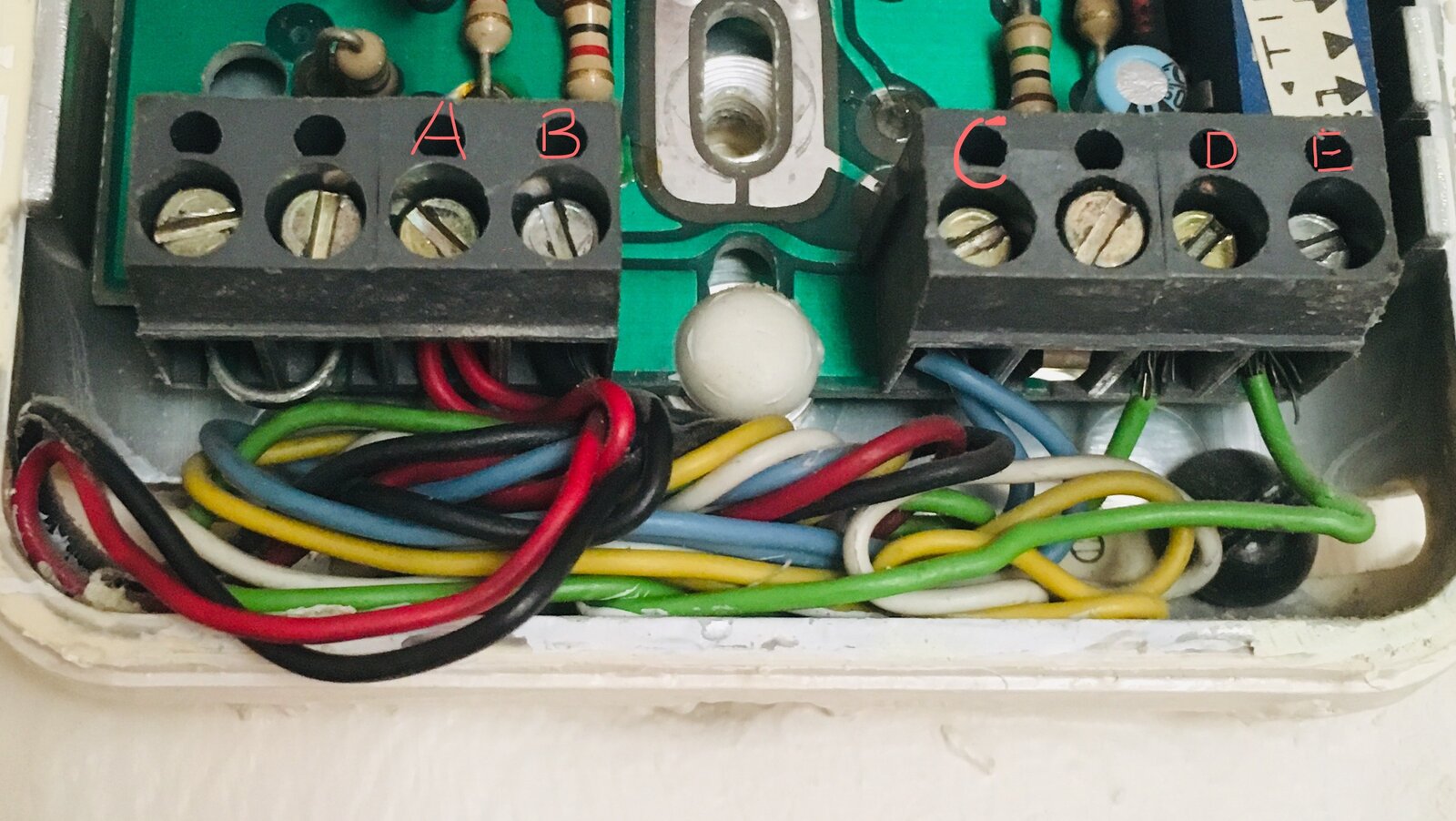

    From the picture, my assumption is:-
    A = + (Two wires as got to other pir)
    B = - (Two wires as got to other pir)
    C = just joined (NC to other PIR)
    D & E = N/C

    does this seem correct ?


    Attached Files:

  2. Sponsored Links
  3. secureiam

    secureiam

    Joined:
    20 Jun 2014
    Messages:
    5,422
    Thanks Received:
    674
    Location:
    Lancashire
    Country:
    United Kingdom
    The wiring of the new pir?

    if the alarm or tamper is wired in parallel both zones would need to be in tamper or active for the device to activate, in series only one has to activate.

    the question dont know what any of the terminals are (A and B look like power) and how the cables go from the panel, to each pir and back

  4. sparkymarka

    sparkymarka

    Joined:
    16 Feb 2011
    Messages:
    8,903
    Thanks Received:
    1,351
    Location:
    Sheffield
    Country:
    United Kingdom
    Looks like a old securis pir
