Hive multizone intall replacing EMI programmer and 2 zone stats

[NEILLFC]

Firstly am not a plumber or electrician, but I have installed Hive before in my old home quite easily.

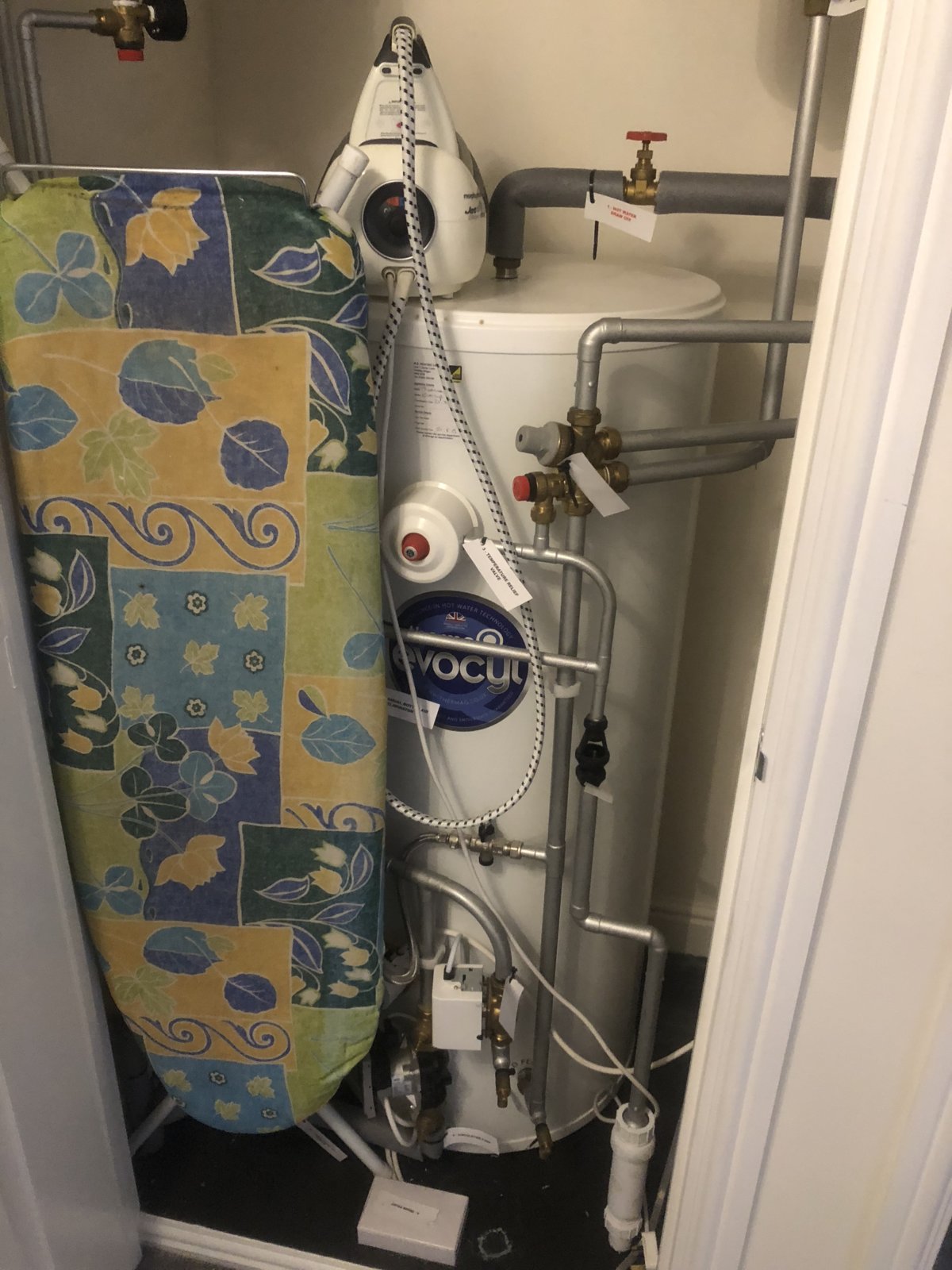

I am now in a new Redrow home and have a hot water cylinder which I never had before.

Also I have 2 heating zones, downstairs and upstairs.

So I am looking for help regrading wiring more so then anything else,the install, diagrams, pics or a good explanation.

Firstly heres some pics of the hive kits I have bought.

Secondly heres the ESI programmer with the wiring set up

And the downstairs stat

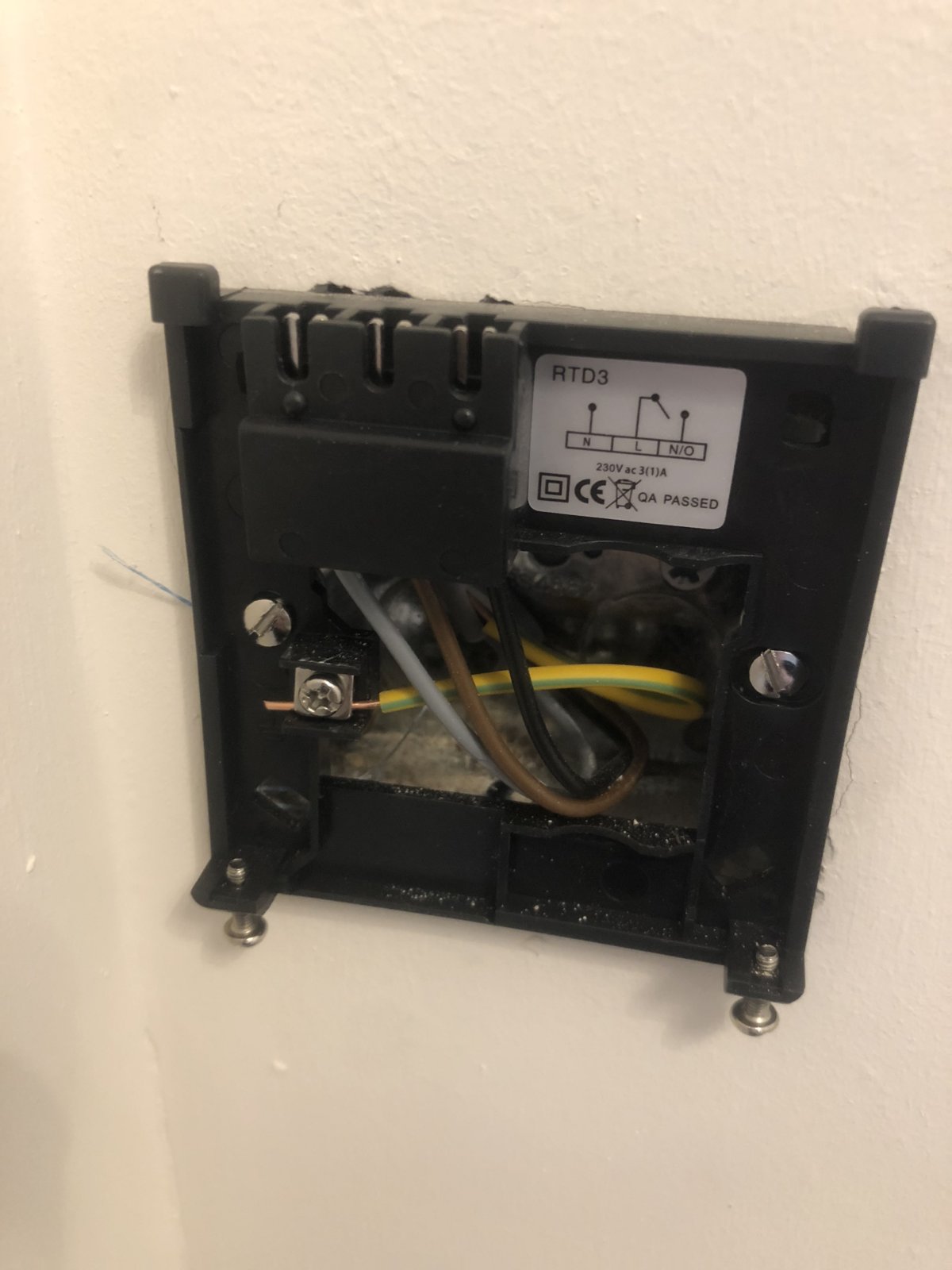

And the upstairs stat

So basically am after after confirmation as to what happens with the wires for the programmer and 2 zone stats.



[NEILLFC]

If I put the L and the NO together on the 2 zone stats and leave the N would this be right?



[saxmanio]

Firstly am not a plumber or electrician, but I have installed Hive before in my old home quite easily.

I am now in a new Redrow home and have a hot water cylinder which I never had before.

Also I have 2 heating zones, downstairs and upstairs.

So I am looking for help regrading wiring more so then anything else,the install, diagrams, pics or a good explanation.

Firstly heres some pics of the hive kits I have bought.

View attachment 149707

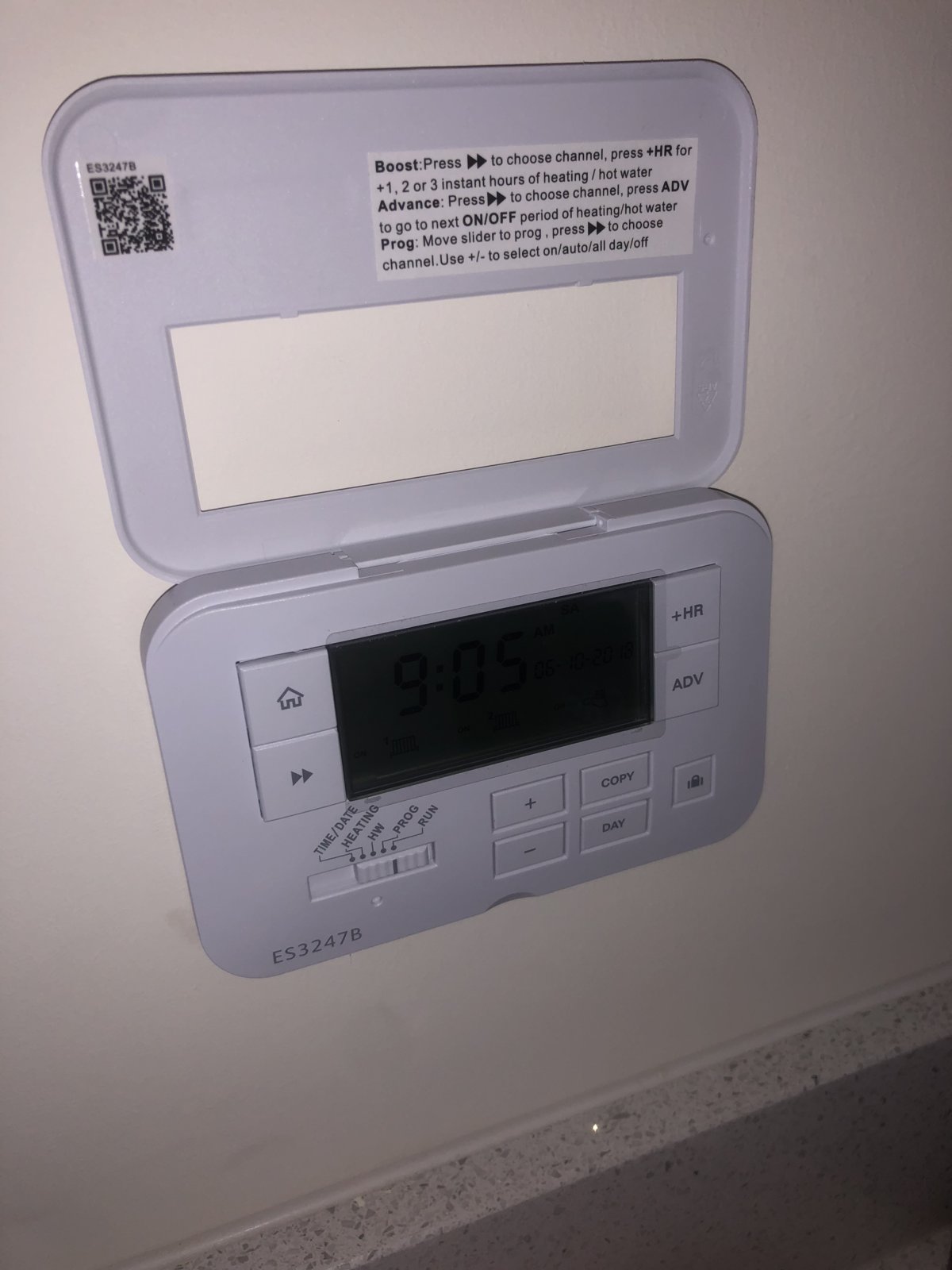

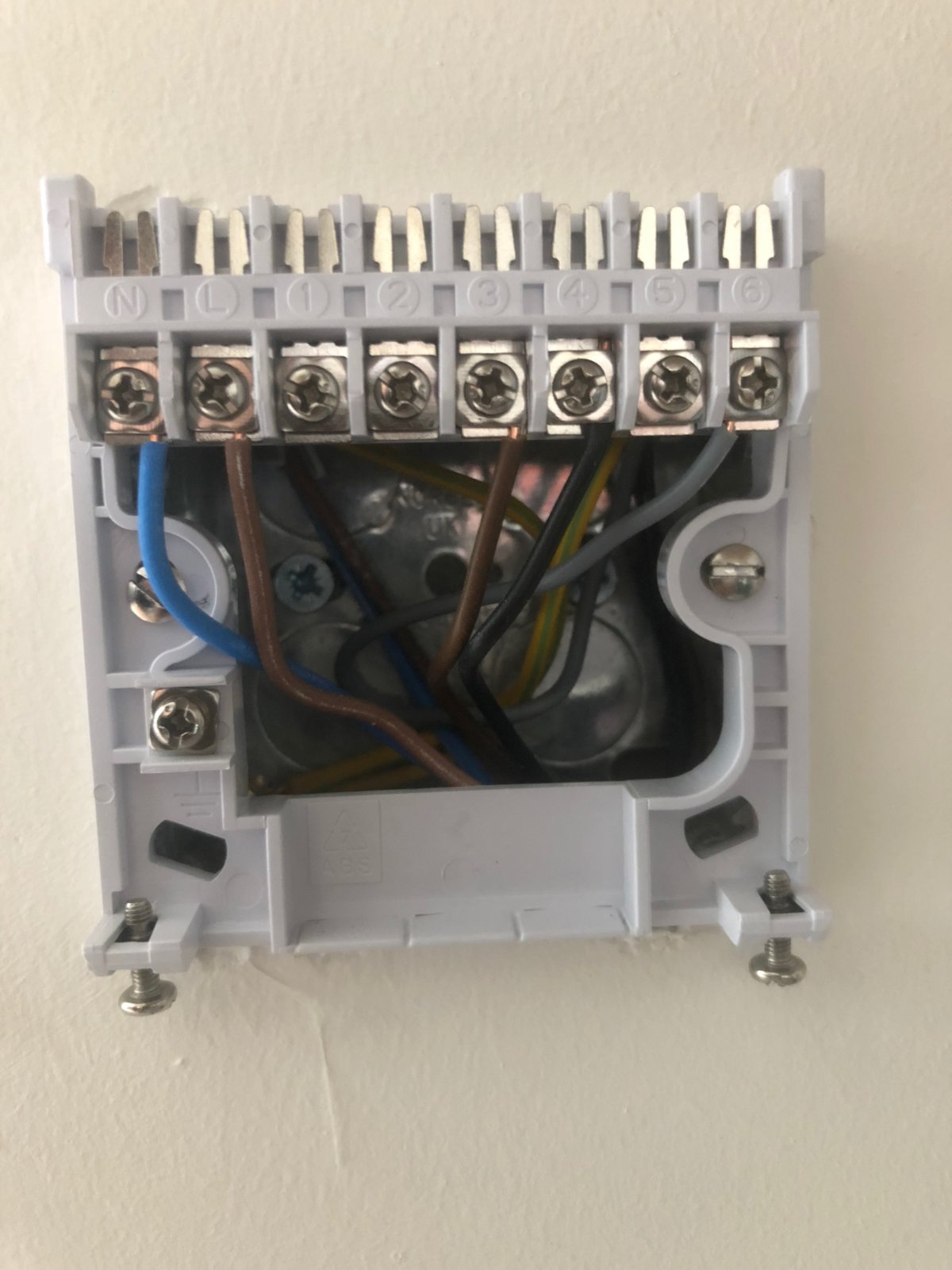

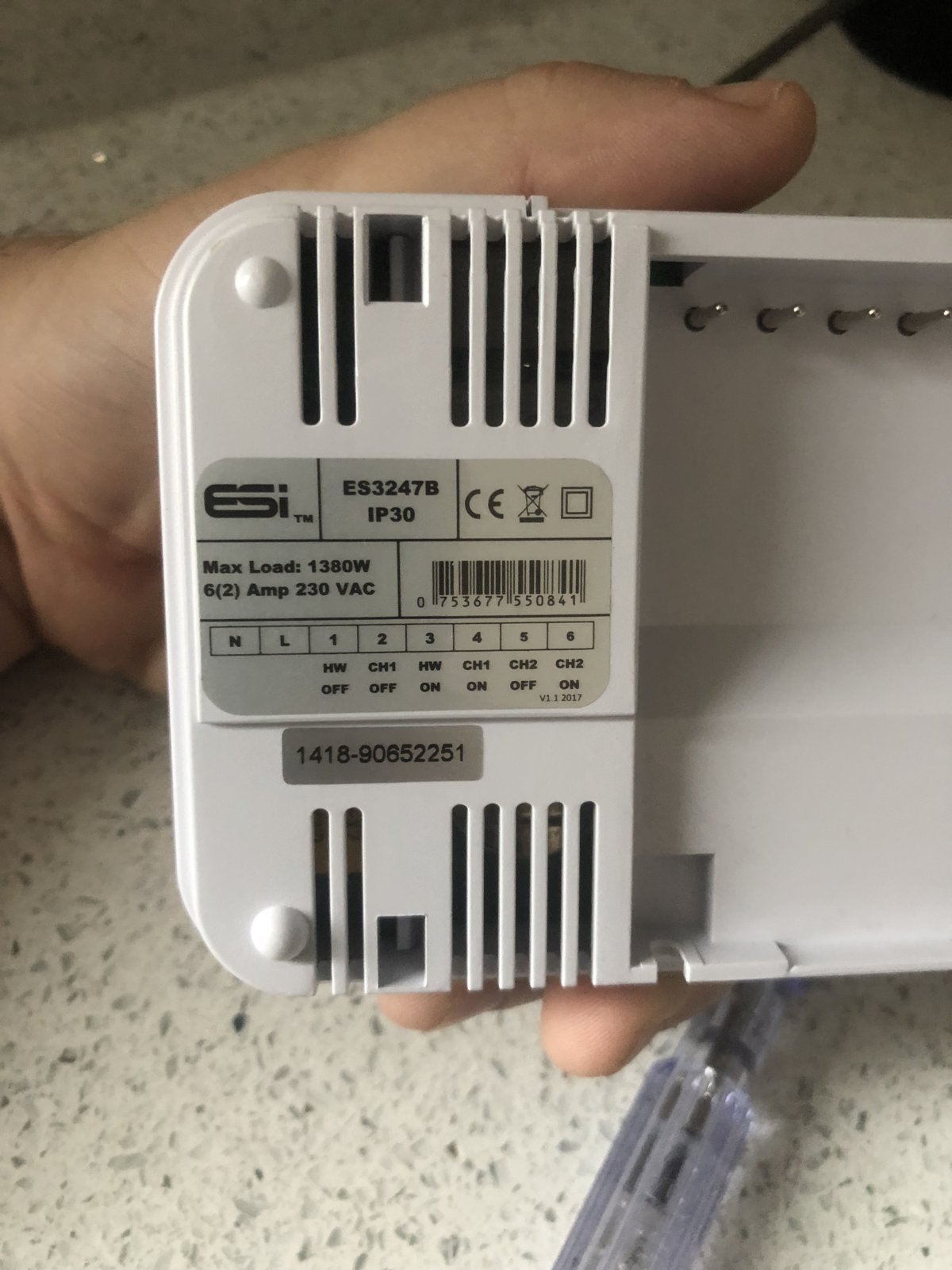

Secondly heres the ESI programmer with the wiring set up
View attachment 149718

View attachment 149721
View attachment 149717

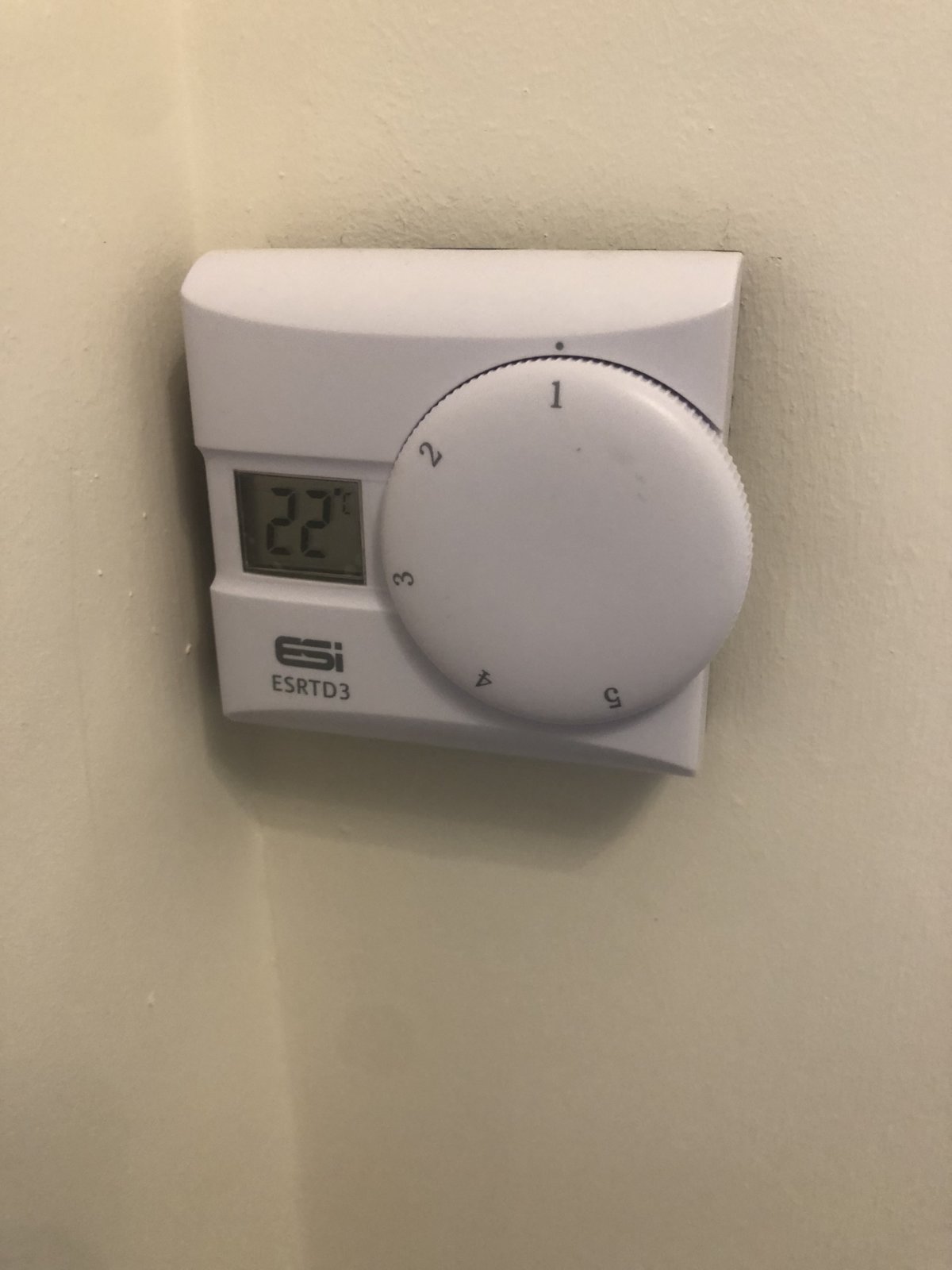

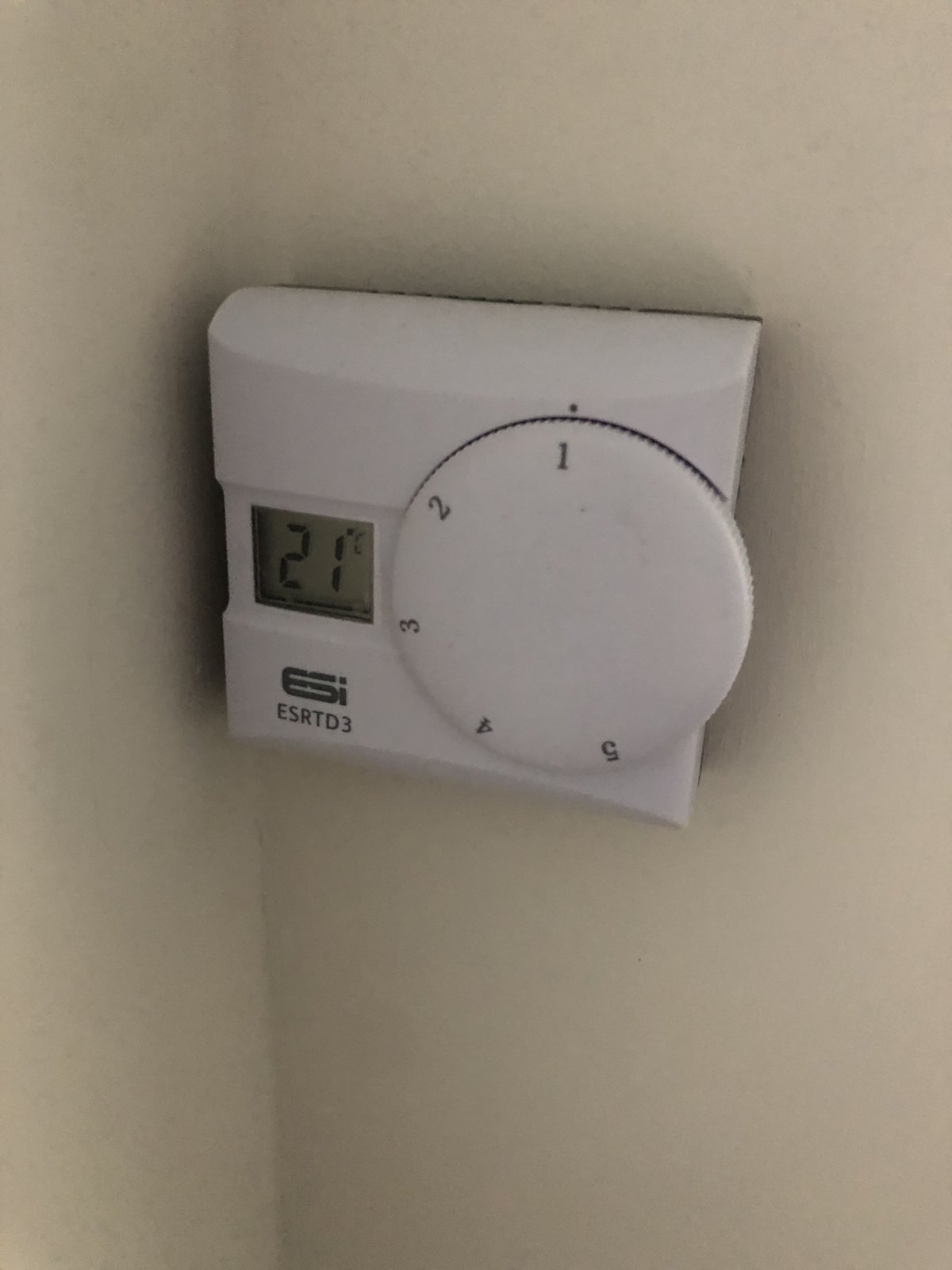

And the downstairs stat
View attachment 149713 View attachment 149714

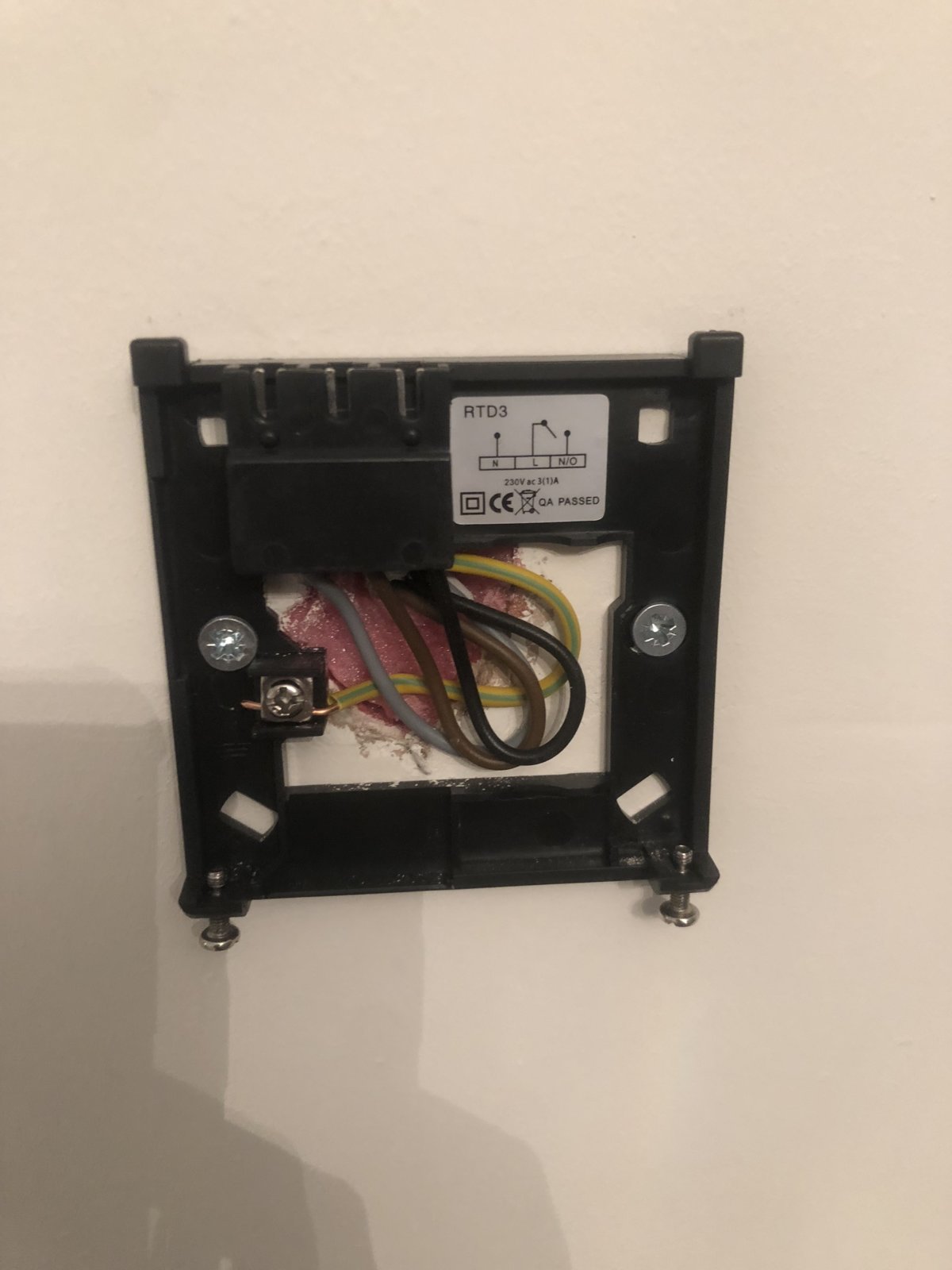

And the upstairs stat
View attachment 149719

So basically am after after confirmation as to what happens with the wires for the programmer and 2 zone stats.

NEILLFC, did you get this working? I have pretty much the same setup at home and would like to replace with Hive.



[GMan51]

Did you get this sorted? I have the same set up? Thanks.
