How to connect Nest E Heat link where my wall mounted thermostat used to be

Discussion in 'Plumbing and Central Heating' started by Chris_m74, 10 Aug 2021.

  1. Chris_m74

    Chris_m74

    Joined:
    10 Aug 2021
    Messages:
    4
    Thanks Received:
    0
    Country:
    United Kingdom
    Wondered if anyone can help i am trying to install my Google nest e battery operated heatling thermostat to the wall where my old wall mounted wired dial thermostat was/still is because I don't know ow which wires are which.

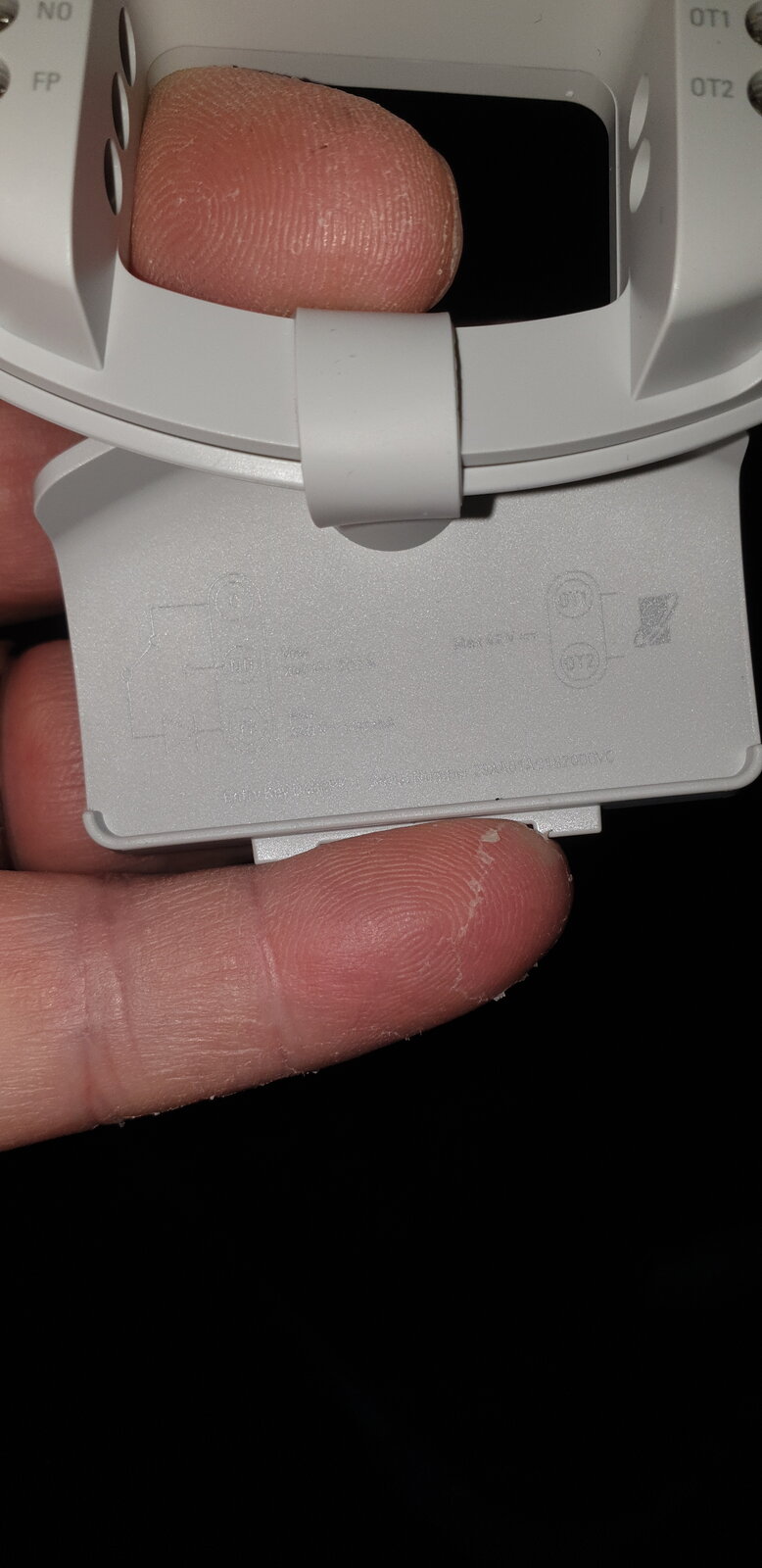

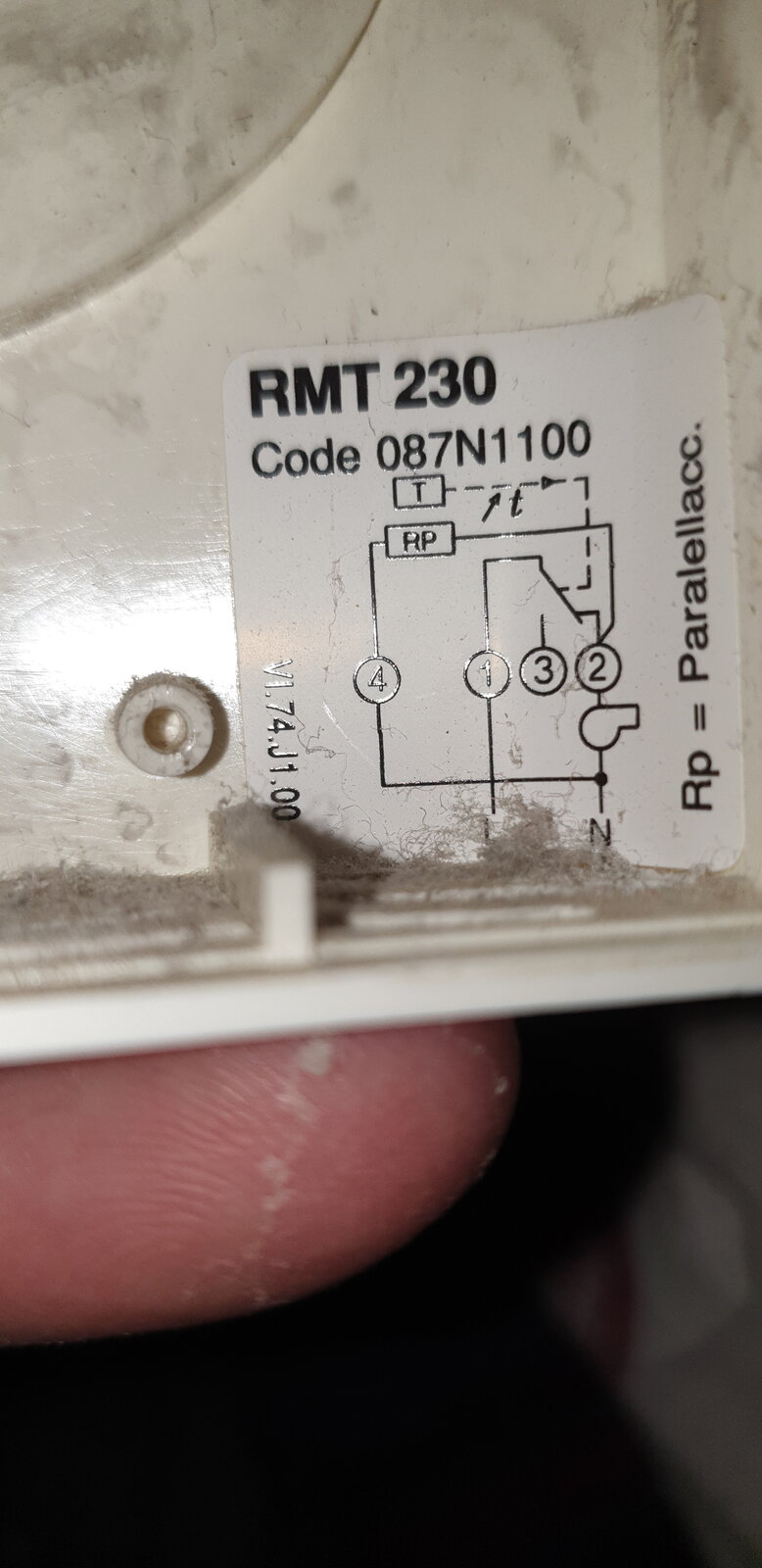

    As you can see I have attached photos 20210810_130345.jpg 20210810_132231.jpg 20210810_132114.jpg 20210810_132231.jpg

  2. Sponsored Links
  3. ericmark

    ericmark

    Joined:
    27 Jan 2008
    Messages:
    18,297
    Thanks Received:
    1,708
    Location:
    Llanfair Caereinion, Nr Welshpool
    Country:
    United Kingdom

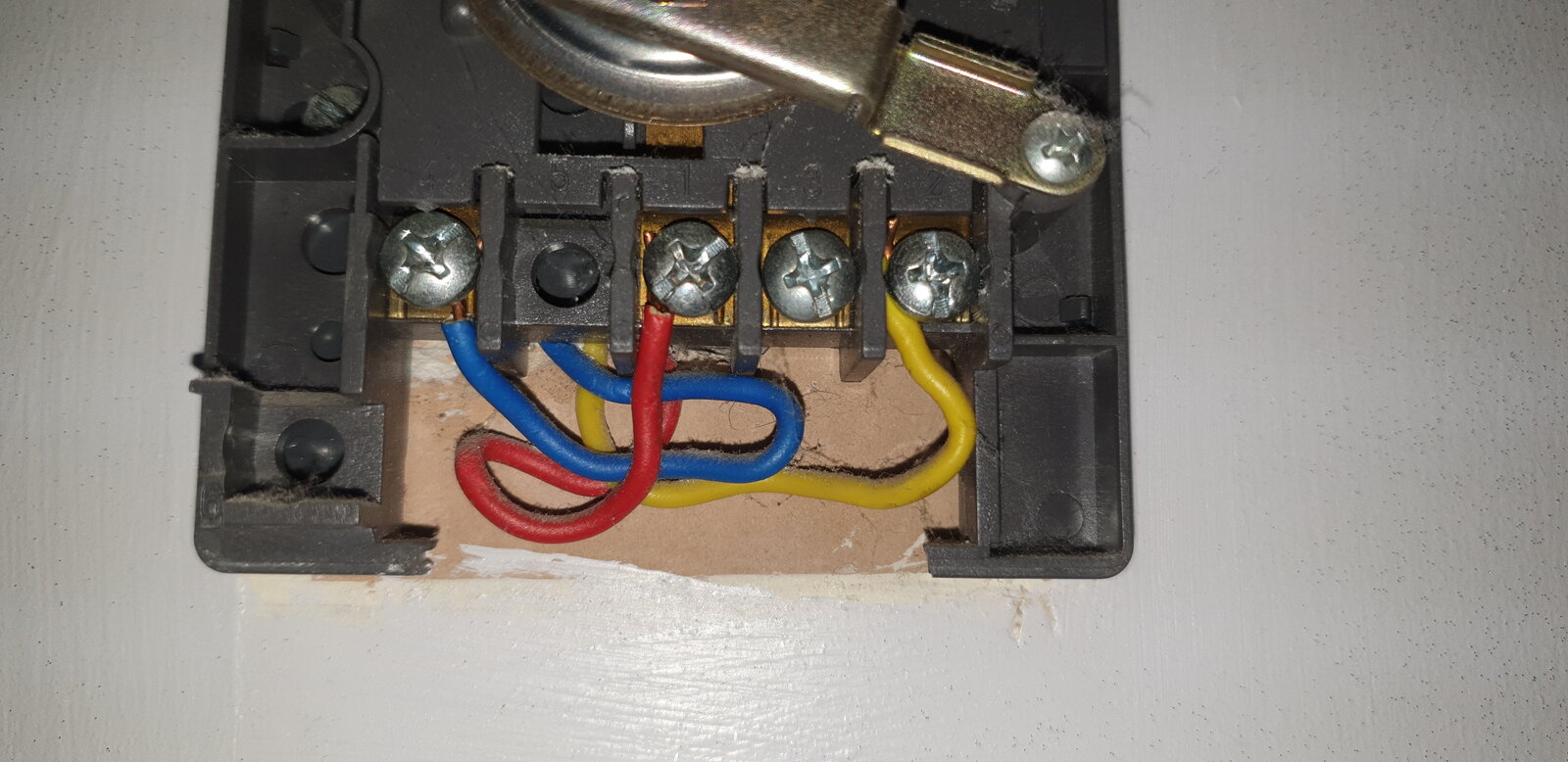

    The one in 4 the blue is neutral and not used with nest e, so I fold them over and tape, or put on a connector block or crimp, out of the way, so 1 red should be line in so to top common and 2 yellow to centre N/O (normally open).

  4. ianmcd

    ianmcd

    Joined:
    15 Aug 2010
    Messages:
    22,853
    Thanks Received:
    9,261
    Location:
    Lanarkshire
    Country:
    United Kingdom
    remember that any existing timers the CH will have to be set to constantly on and the nest E will override it

  5. Chris_m74

    Chris_m74

    Joined:
    10 Aug 2021
    Messages:
    4
    Thanks Received:
    0
    Country:
    United Kingdom

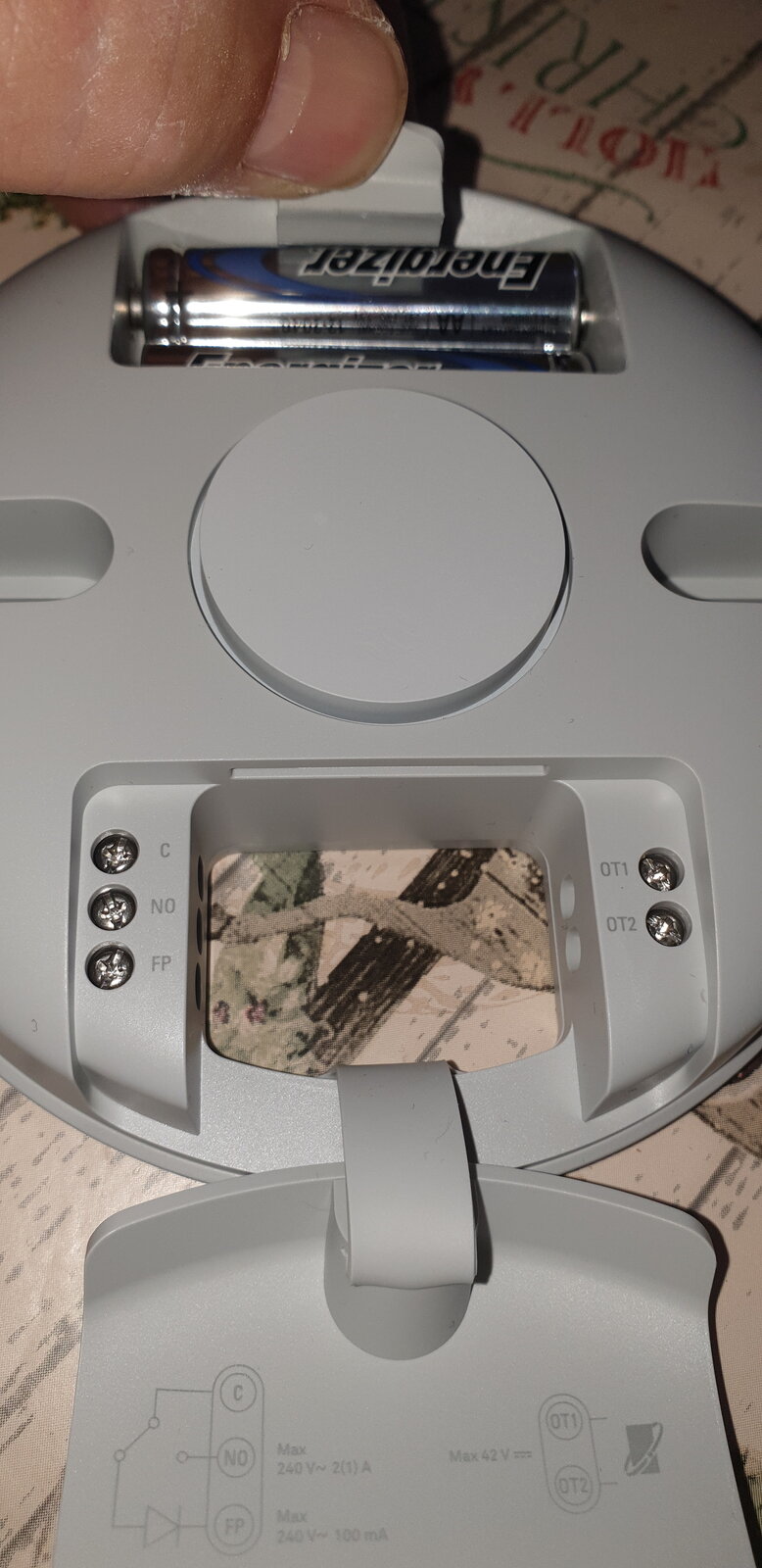

    Eric mark thank you for the advice, the nest e heatlink is battery powered and It says it does not need any 240v wiring just wanted to clarify which ones I will have to terminate in the terminal block that comes with the fixing/installation kit pleae

  6. Sponsored Links
  7. Chris_m74

    Chris_m74

    Joined:
    10 Aug 2021
    Messages:
    4
    Thanks Received:
    0
    Country:
    United Kingdom
  8. denso13

    denso13

    Joined:
    22 Jan 2007
    Messages:
    5,455
    Thanks Received:
    1,105
    Country:
    United Kingdom
    As said, you don't need the blue, don't connect it and terminate it safely. The red and yellow go to C and NO.

    • Like Like x 1
  9. ianmcd

    ianmcd

    Joined:
    15 Aug 2010
    Messages:
    22,853
    Thanks Received:
    9,261
    Location:
    Lanarkshire
    Country:
    United Kingdom
    He has already told you, it really couldnt be more simple

  10. Chris_m74

    Chris_m74

    Joined:
    10 Aug 2021
    Messages:
    4
    Thanks Received:
    0
    Country:
    United Kingdom
    Thank you this advice was great and now its all fitted and working.
