Neon indicator pull switch

[Supermac]

I want to change an ordinary pull switch that turns the fan on and off in the bathroom to one with a neon indicator light to help avoid leaving the fan on. The original switch has the two black cables joined together in a separate 'chocolate block' connector and each of the two reds go into either end of the switch. There is no earth facility on the switch and they are just together in an earth sleve.

I was told the new switch was over the top for what I want (he said four pole?) but it would do the job. It has four possible connections marked L1-L4 and an earth. Just using the two reds I can have the fan working- no neon, the neon working - no fan, the neon permanently on and nothing else so help is required please. The answer must be in the two black wires but I do not have the confidence to try - any suggestions gratefully received - thanks.



[ColJack]

neons need to have one side to neutral..

the 2 black wires in a connector need to go into one of the poles on the switch.
need a picture of the switch ( or a part number ) so we can see what it is you're working with..

if it is 4 pole then you'd have 8 terminals..
so it's a DP switch..
one pole for the lives, one for the neutrals.
neon on the output side connected between the live and neutral



[wingcoax]

If it gets left on when there is the (slight )noise from the fan then you are going to have to train everyone to look up on leaving the room.



[ColJack]

or alternatively, change it for one that comes on with the light and has an overun timer..
or for one with a PIR that comes on when you walk in.
or if it's more for the shower than the smell, there's always ones with humidity stats..



[Supermac]

Thanks for your help so far. Not sure how to put a picture up - sorry. It has on the back DP CrabtreeEngland (might be a 2163) - four input connections - neon is wired between L1 and L4. Bought it at CEF. Hope this helps. Thanks



[ColJack]

you can learn how to add photo's here, just scroll through the pictures with the green arrows at the top..



[Supermac]

Untitled

• Supermac
• 23 Jul 2009
• 1

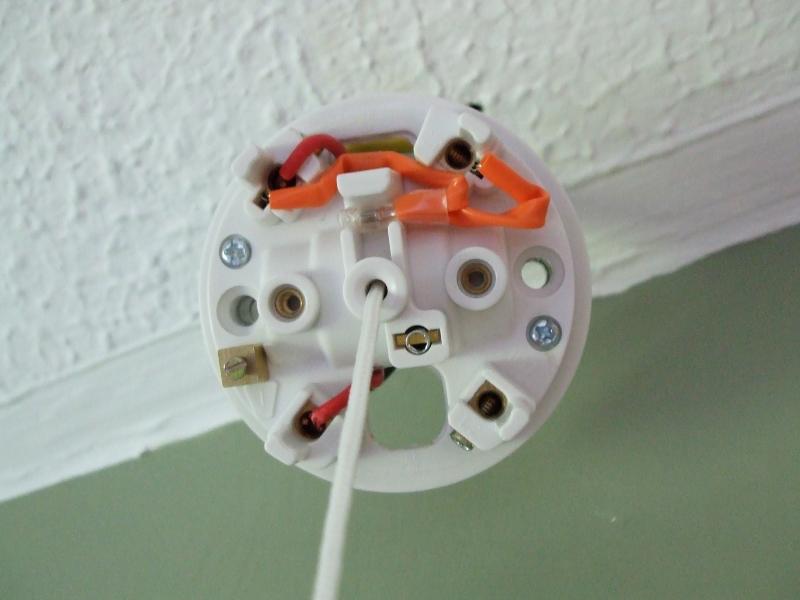

Thanks for the lesson! This hopefully is a picture of the neon pull switch.



[ColJack]

yeah looks simple enough.. the blacks go in the other 2 holes.. ( how the neon ever lit is a mystery to me.. )

red out and black out ( same cable ) should go in the holes that the neon are in..



[Supermac]

Many thanks ColJack. Fan and neon are now working together in perfect harmony!
