Wire Chubb delta bell to Honeywell galaxy 2-12

[Lee Woods]

Hello, can someone talk me through the wiring set up for a Chubb delta bell we have tried but I don’t know if we are wiring it up correctly as there are many more terminals on the bell box than any other siren we have used.
Thanks in advance

Lee.



[Handymanjo]

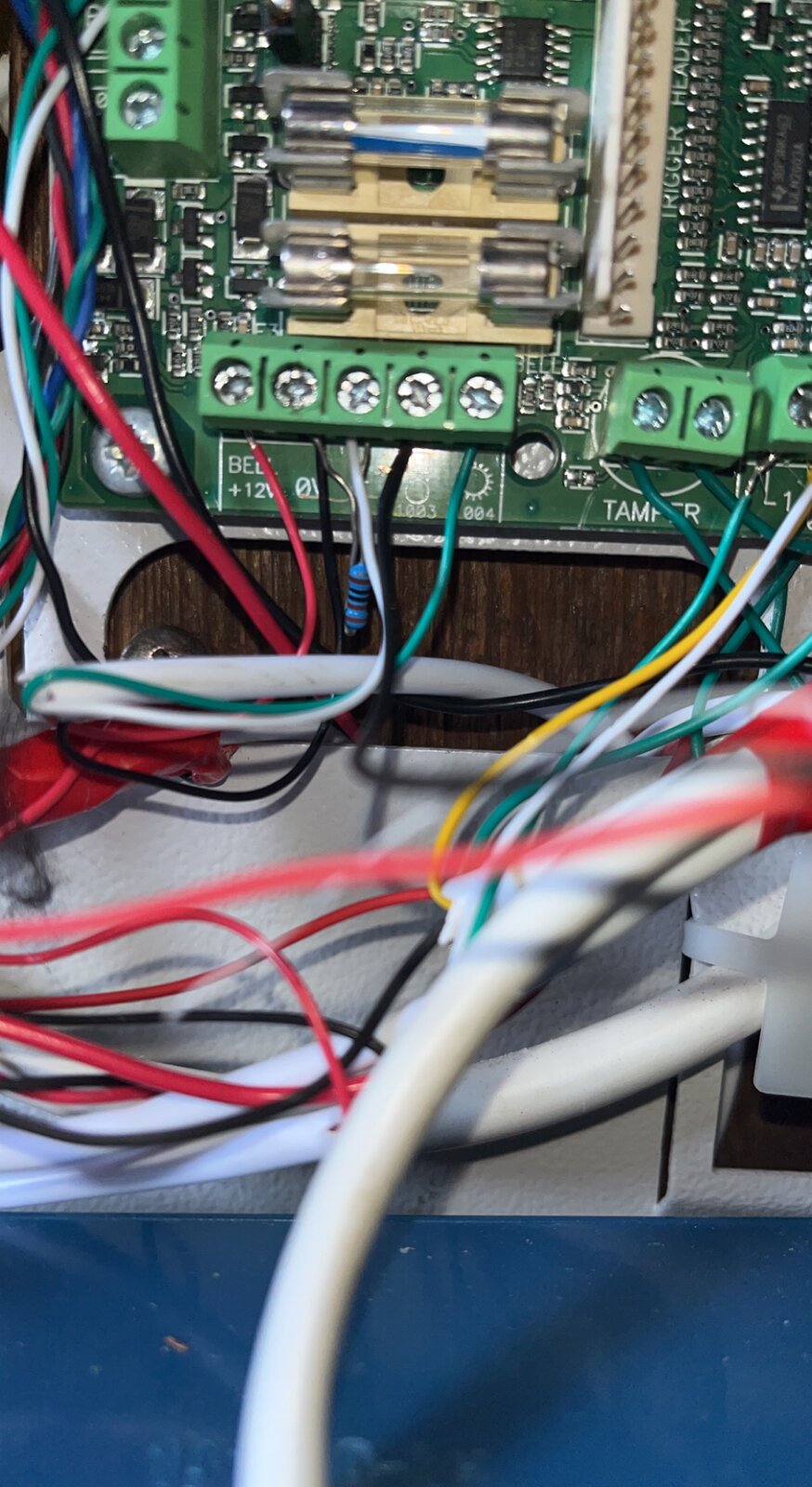

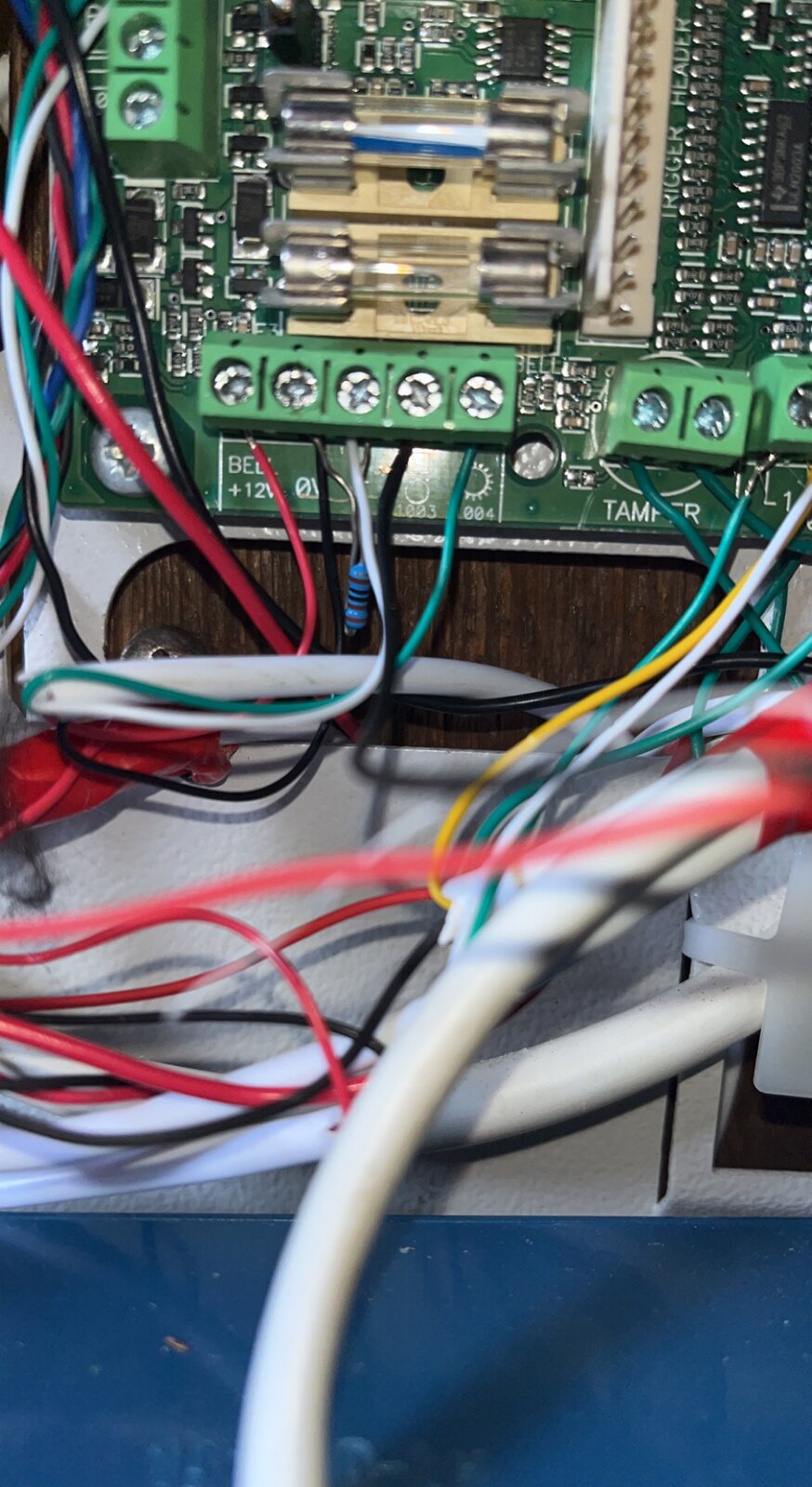

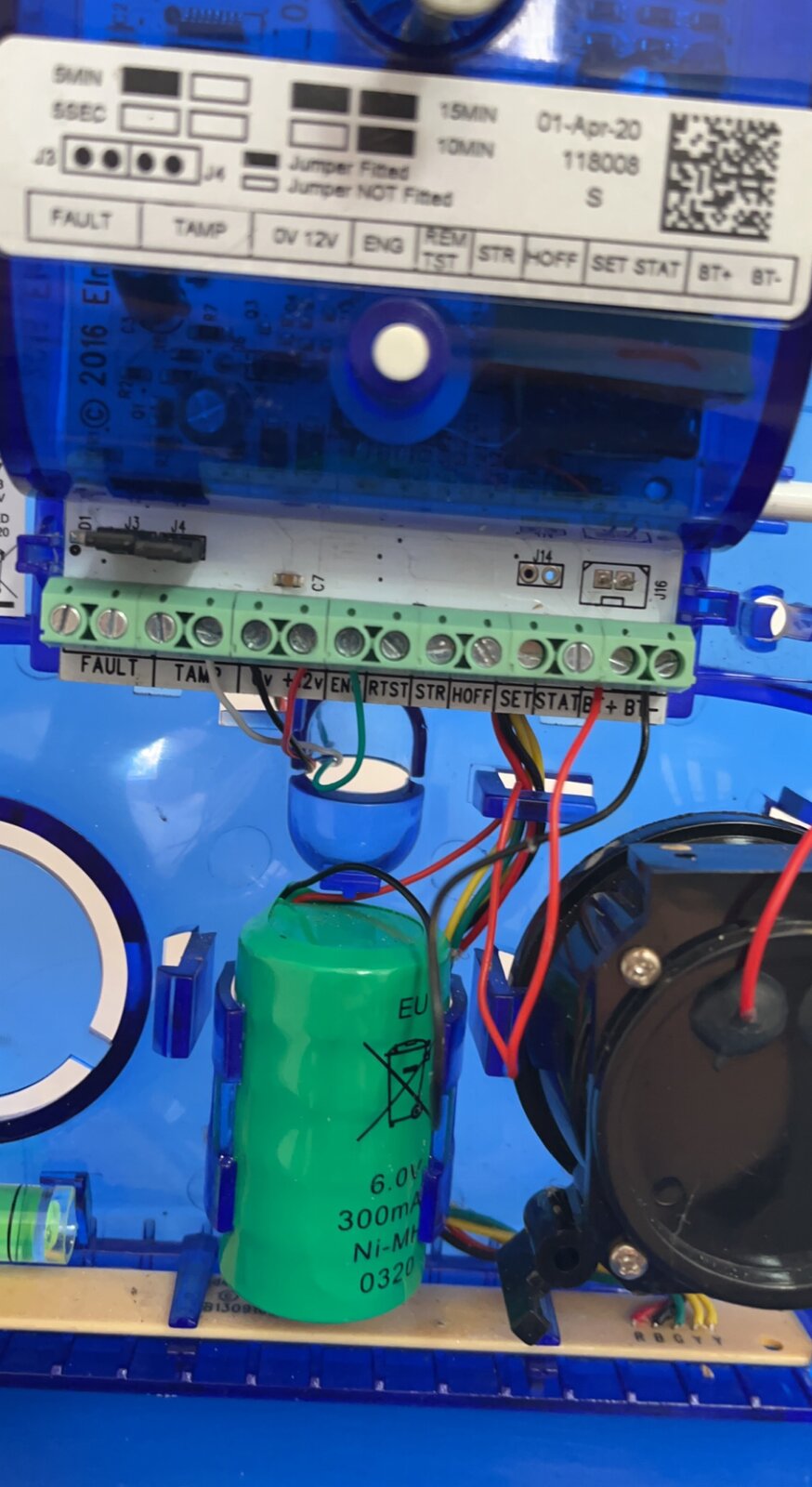

Post photo of bell box pcb and alarm control panel pcd.



[Lee Woods]

Hi as requested



[sparkymarka]

Did you try the QR code …..? That’s an elmdene bellbox



[Lee Woods]

Yeah I did it just goes to a site saying server error the requested page does not exist or may have expired 407



[sparkymarka]

Looks a bit strange as elmdene normally have a R- for the bell ring input …



[Handymanjo]

Why have you got 4 wires in Bell box and 5 wires in control panel ? Or is that a shadow.
Yes normally R-



[Lee Woods]

There is 5 wires in the panel because there is an internal sounder wired up to that

the outside bell is wired to 1003 and the internal sounder is 1004
