Wiring a vintage record player.

[Rydwi]

Hi All,
I have a vintage record player and I need advice on how to wire up to a new needle cartridge.

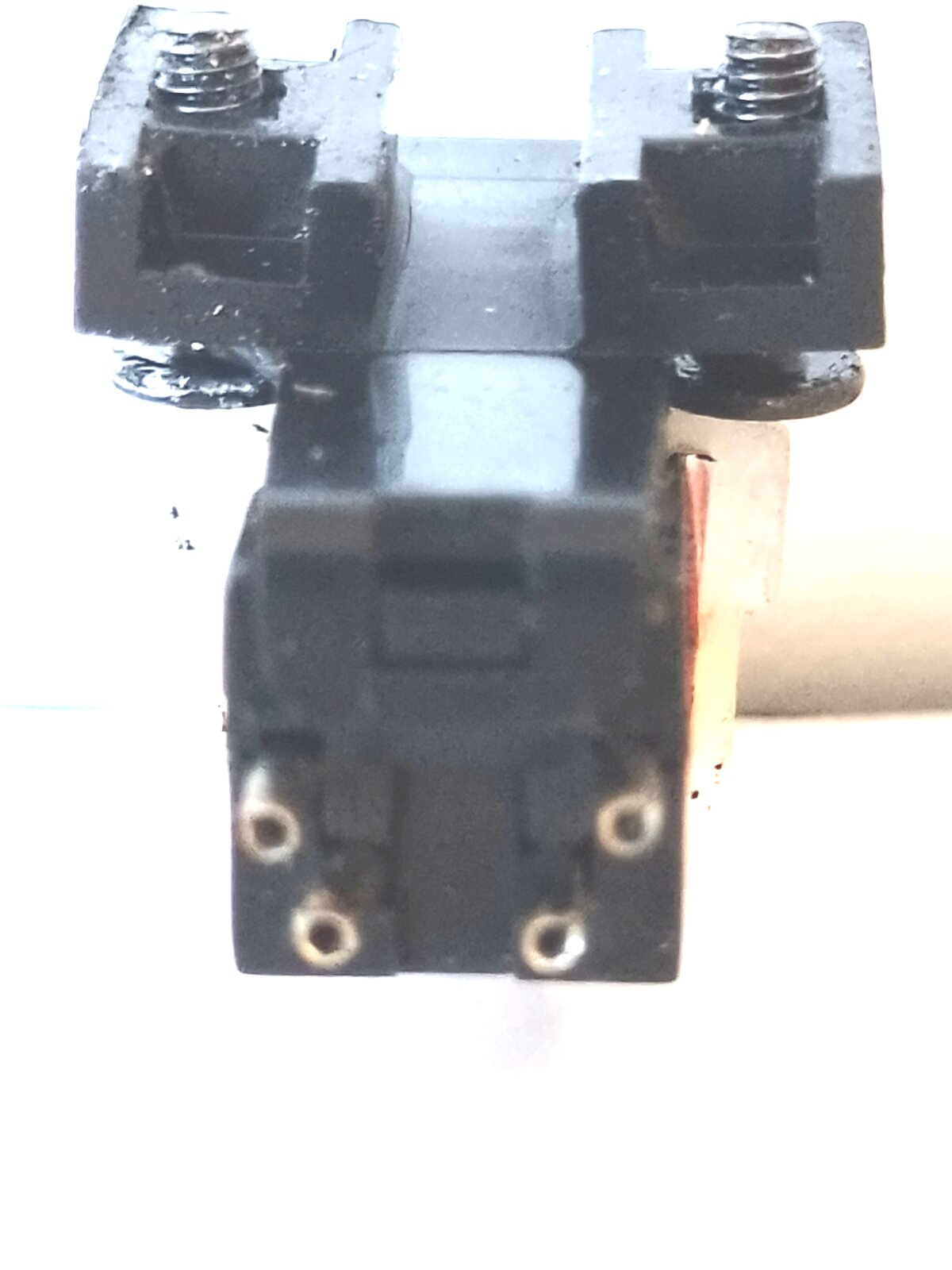

The cartridge (photo below) has four round contact points, two on top both marked with a plus sign (+) and two below each marked with a minus sign(-)
There are 4 wires to be inserted into the 4 contact points. The colours of the wires are Red, Black, Blue and Yellow.
The player was manufactured in the early 1960s.
Can anyone please advise where each wire goes. This will prevent me going mad!

Sincerely Rydwi



[Rodders53]

UK Vintage Radio Repair and Restoration Discussion Forum - View Single Post - BSR UA8 deck & cartridge wiring.

UK vintage radio repair and restoration discussion forum

www.vintage-radio.net

Red right signal +
Black right ground (screen)

Yellow left signal +
Blue left ground



[Rydwi]

Thank you Rodders. Attached them today and the result is perfect.

Cheers

Rydwi
