Bath light switch, wiring question

Discussion in 'Electrics UK' started by jon ccc, 16 Nov 2016.

  1. jon ccc

    jon ccc

    Joined:
    10 Nov 2015
    Messages:
    24
    Thanks Received:
    0
    Country:
    United Kingdom
    The current bathroom light wall switch is outside the bathroom. I wanted to install a Crabtree pull cord light switch inside the bathroom. [to replace the wall switch. edit at 09:33]

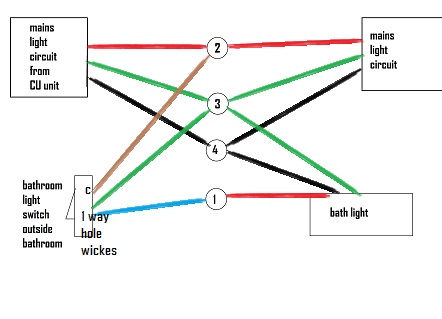

    However when i was noting down the wiring of the lighting circuitry. I noticed that the current light switch appears to be wired wrongly [I did not do the wiring]. pls see enclosed diagram

    The brown wire goes to the Commons connector on the wickes Bath Light wall switch.
    The blue wire goes to the 'one way' connector on the wickes Bath light wall switch.
    is this correct?
    and so would the brown wire go to commons connector on the Crabtree pull switch, and the blue wire to the L2?
    bathroom light wiring3.jpg

    Last edited: 16 Nov 2016
  2. PrenticeBoyofDerry

    PrenticeBoyofDerry

    Joined:
    30 Jun 2009
    Messages:
    21,628
    Thanks Received:
    2,380
    Location:
    Londonderry
    Country:
    United Kingdom
    That is one way of doing this and not uncommon on a one way way function. The blue core is the switch line and should be identified as this by it being marked correctly, ideally by a brown coloured sleeve over the blue insulation at all terminals/joints.
    Can I assume you are removing this wall switch, then installing a pull cord switch as a swap over, rather than a two way function?

    As it seems, you have two versions of BS7671 wiring colours present, it is likely that the originally/previously a pull cord switch existed.
    If it is to remain a one way switch, then just copy the cables to terminals Com/L and L1. Although any combination of COM to L1 or L2 will work.

    • Thanks Thanks x 1
  3. jon ccc

    jon ccc

    Joined:
    10 Nov 2015
    Messages:
    24
    Thanks Received:
    0
    Country:
    United Kingdom
    hi, thanks for replying.
    yes i am planning on removing the wall switch. ive editted the original post to clarify this.

    thats excellent, thanks.
    i had been worrying that the wall switch had been secretly wired wrongly for years, and i have avoided a mishap by luck.

  4. flameport

    flameport

    Joined:
    10 Mar 2007
    Messages:
    8,102
    Thanks Received:
    1,483
    Location:
    Poole, Dorset
    Country:
    United Kingdom
    A switch connects two wires together in one position, and separates them in the other position.
    The colour of the wires and which terminal is connected where makes no difference to anything.

    • Thanks Thanks x 1
