CCTV x 6 cables, TV, Sat cables x 2, and Ethenet cable...?

Discussion in 'Alarms, CCTV & Telephones' started by GazSuttonUK, 12 Jan 2020.

  1. GazSuttonUK

    GazSuttonUK

    Joined:
    20 Oct 2006
    Messages:
    161
    Thanks Received:
    0
    Location:
    West Midlands
    Country:
    United Kingdom
    Ive got my lounge gutted at the moment and about to chisel out for back boxes......and Im completely lost on what wall plates to use to fit:-

    TV Arial(Freeview) x 1
    FreeSat cables x 2
    Ethernet cable(for Firestick)
    CCTV cables x 6

    Many thanks for any help...

  2. Sponsored Links
  3. OwainDIYer

    OwainDIYer

    Joined:
    5 May 2010
    Messages:
    4,501
    Thanks Received:
    686
    Location:
    Stirlingshire
    Country:
    United Kingdom
    Do you actually need to bring 6 x cctv cables into the lounge? Usually one video cable from the DVR and a mouse extension if appliccable. Or modulate the camera feeds onto TV channels if you want individual cameras selectable from the TV. Aerial and Sat can be on F connectors (and you can duplex TV, DAB and FM Aerial on one of the Sat leads), CCTV will usually be on BNC.

    • Thanks Thanks x 1
  4. mattylad

    mattylad

    Joined:
    27 Apr 2008
    Messages:
    7,067
    Thanks Received:
    438
    Country:
    United Kingdom
    double or triple up on the ethernet cable, there are often other things that want a connection to the router (where is that?) such as PD4, Xbox, TV and so on.
    Fitting more cables will save the pain in the future.

    As above, CCTV in the lounge? I'd rather have my CCTV setup hidden away somewhere safe and feed a single display connection + ethernet to it than have it all sat there ready for someone to pinch should I get burgled. The wife would hate having to dust it all too. (not that I have cctv).

    • Thanks Thanks x 1
  5. GazSuttonUK

    GazSuttonUK

    Joined:
    20 Oct 2006
    Messages:
    161
    Thanks Received:
    0
    Location:
    West Midlands
    Country:
    United Kingdom
    Thanks for your replies....Im new at this CCTV stuff, so I could have one cable from the DVR that goes into the loft and devide that cable in to 6 or 8 cables to go to the CCTV cameras?

  6. Handymanjo

    Handymanjo

    Joined:
    2 Feb 2016
    Messages:
    1,494
    Thanks Received:
    280
    Location:
    Newark
    Country:
    United Kingdom
    1 cat5 e max 4 camera

  7. Sponsored Links
  8. GazSuttonUK

    GazSuttonUK

    Joined:
    20 Oct 2006
    Messages:
    161
    Thanks Received:
    0
    Location:
    West Midlands
    Country:
    United Kingdom
  9. Sally2000

    Sally2000

    Joined:
    6 Feb 2013
    Messages:
    358
    Thanks Received:
    33
    Location:
    London
    Country:
    United Kingdom
    You don't divide the cables. Each camera connects to its own port on the DVR.

  10. GazSuttonUK

    GazSuttonUK

    Joined:
    20 Oct 2006
    Messages:
    161
    Thanks Received:
    0
    Location:
    West Midlands
    Country:
    United Kingdom

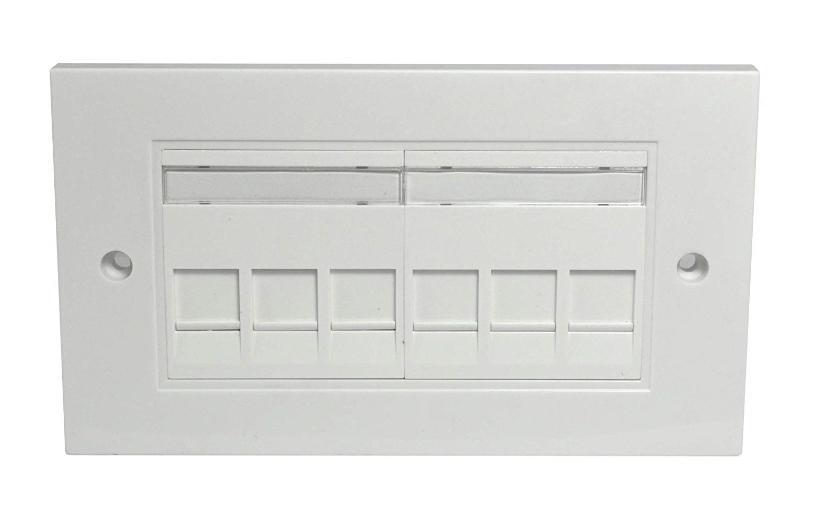

    So two wires per camera.....equals 4 cameras per cable?...……...and could I use that wall plate above?
