Changing double light switch in kitchen

Discussion in 'Electrics UK' started by Juboblerob, 26 Nov 2018.

  1. Juboblerob

    Juboblerob

    Joined:
    26 Nov 2018
    Messages:
    3
    Thanks Received:
    0
    Country:
    United Kingdom
    Hello. First of all sorry if this question has been asked before , I looked and couldn’t see the exact wiring problem I have mention elsewhere.

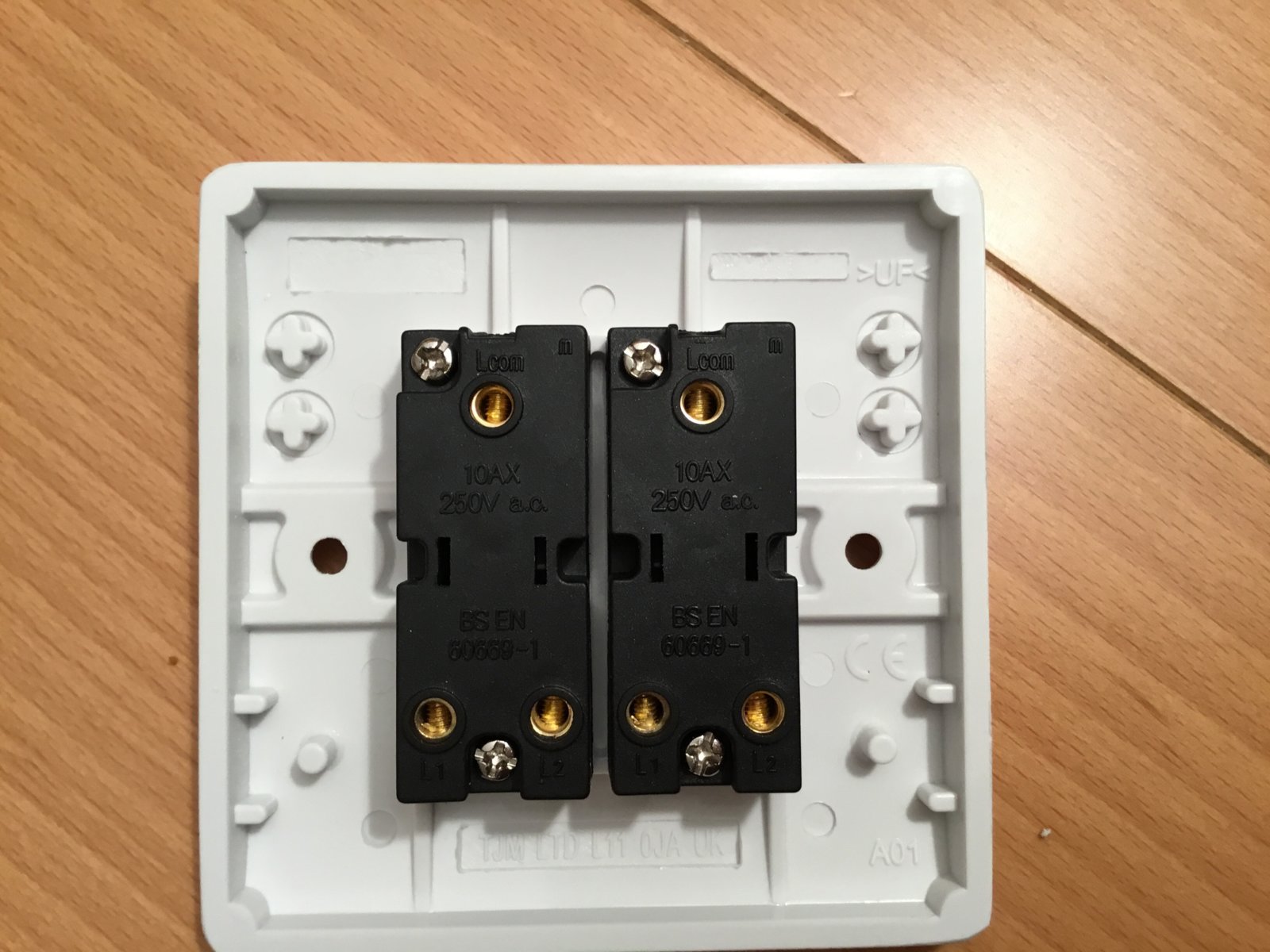

    I am changing the double light switch in my kitchen (plastic on old switch cracked) the wires on the exting switch is all brown cable. One cable to common (1) and one to 2 on the left switch and one cable to common (1) and one to 2 on the right (upside down?) switch. With a short connecting loop of wire between the common (1) of the right switch and 2 on the left switch.with the (3) connector not used Picture attached.
    The new switch has a different layout (picture attached). Do I just carry the cabling layout over to the new switch (with the linking cable going from Lcom at the top of the right switch to the L2 at the bottom of the left switch and leaving all the L1 terminals unconnected)or is there more to the differences between these two units. 5B1168AC-62F3-47AF-BADC-5EA39E700EBB.jpeg image.jpg
    Thanks in advance for any advice.

  2. Sponsored Links
  3. EFLImpudence

    EFLImpudence

    Joined:
    7 Jul 2010
    Messages:
    37,133
    Thanks Received:
    4,171
    Location:
    Retired to:
    Country:
    Portugal
    You must replicate the wiring allowing for the fact that your new switch does not have one upside down.

    1 = loom
    2 = L1

    I have never seen a switch marked "loom". It does not seem relevant.

    • Thanks Thanks x 1
  4. lostinthelight

    lostinthelight

    Joined:
    11 Feb 2016
    Messages:
    3,113
    Thanks Received:
    597
    Location:
    monmouthshire
    Country:
    United Kingdom
    Doesnt it say LCOM?

    • Thanks Thanks x 1
    • Like Like x 1
  5. EFLImpudence

    EFLImpudence

    Joined:
    7 Jul 2010
    Messages:
    37,133
    Thanks Received:
    4,171
    Location:
    Retired to:
    Country:
    Portugal
    Ah - so it does. Back to Specsavers.

  6. Juboblerob

    Juboblerob

    Joined:
    26 Nov 2018
    Messages:
    3
    Thanks Received:
    0
    Country:
    United Kingdom
    Thank you for you help.
    So The short linking cable would go between Lcom on the top of the right switch to L1 at the bottom of the left switch leaving all the L2 unconnected?

    When I first took the switch out of the package I thought it said Loom as well, so I’ll see you at the specsavers.

  7. EFLImpudence

    EFLImpudence

    Joined:
    7 Jul 2010
    Messages:
    37,133
    Thanks Received:
    4,171
    Location:
    Retired to:
    Country:
    Portugal
    Yes, as that is how it is wired and presumably the lights work as they should.

    (Although as the switches are only being used as one-way it doesn't really matter. but for more complicated wiring for two-way it is important to replicate the wiring exactly unless you can work out what's what.)

  8. Juboblerob

    Juboblerob

    Joined:
    26 Nov 2018
    Messages:
    3
    Thanks Received:
    0
    Country:
    United Kingdom
    Just like to say thank you again EFLImpudance, new stitch fitted and all lights working.

    • Like Like x 1
