Confusion changing 2 gang 2 way lightswitch

Discussion in 'Electrics UK' started by eviltoad, 28 Jul 2020.

  1. eviltoad

    eviltoad

    Joined:
    12 Nov 2012
    Messages:
    51
    Thanks Received:
    2
    Country:
    United Kingdom
    Hi,

    I have a 2 gang 2 way switch outside the kitchen that I'd like to replace. This switch works the kitchen ceiling lights and the hallway light (the hallway light also has another switch by front door so both can turn hall lights on/off).

    Can anyone please advise what's supposed to go where on the new switch?

    I've looked in the wiring diagrams section but struggling a bit.
    I'm presuming the two "COM" on the old go to the "COM" on the new, but what about the 2RED, 2BLUE and 3Yellow?

    Apologies for posting full size image. Didn't think thumbnail helped with detail.

    All help appreciated.
    Thanks
    Si

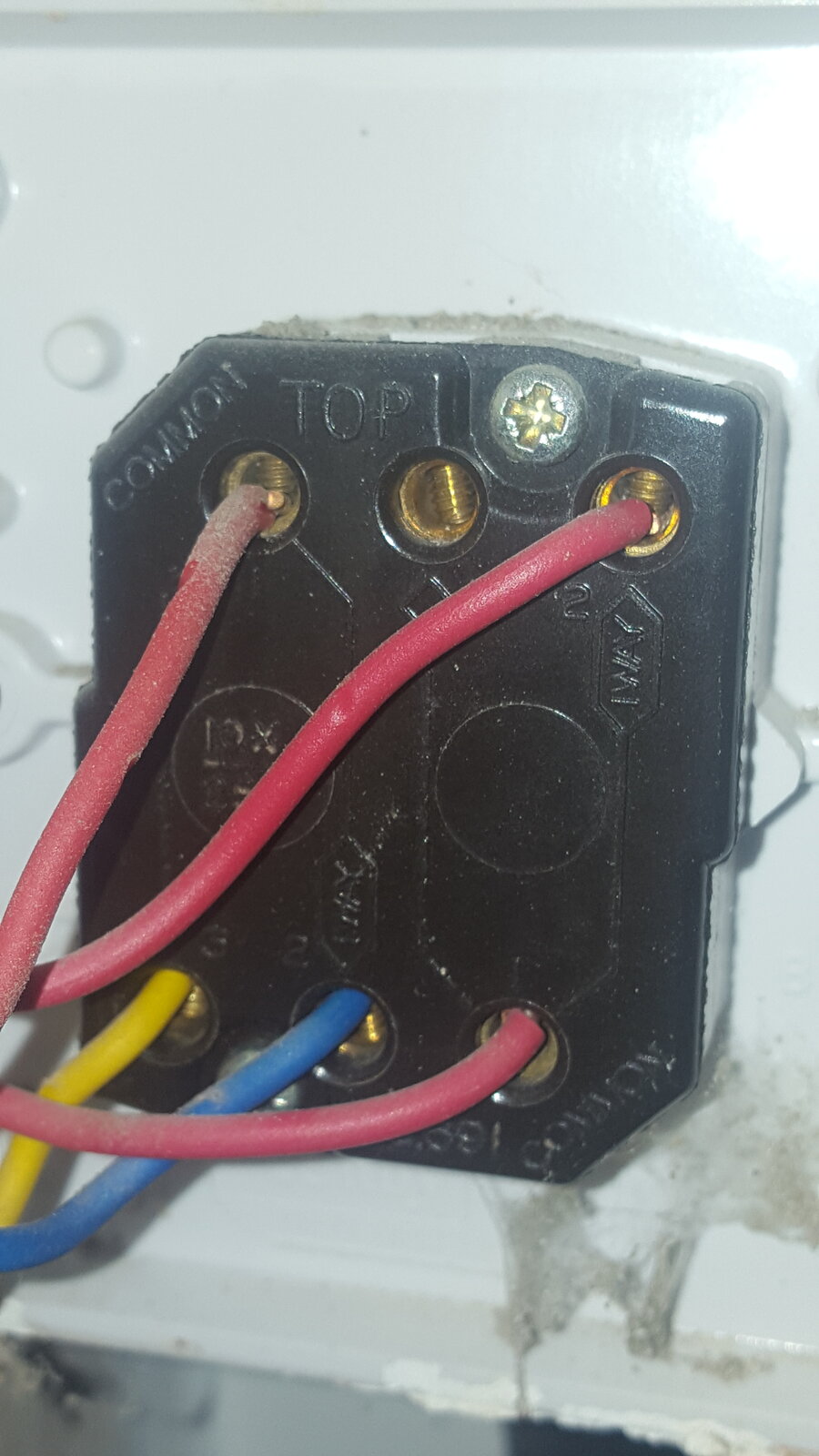

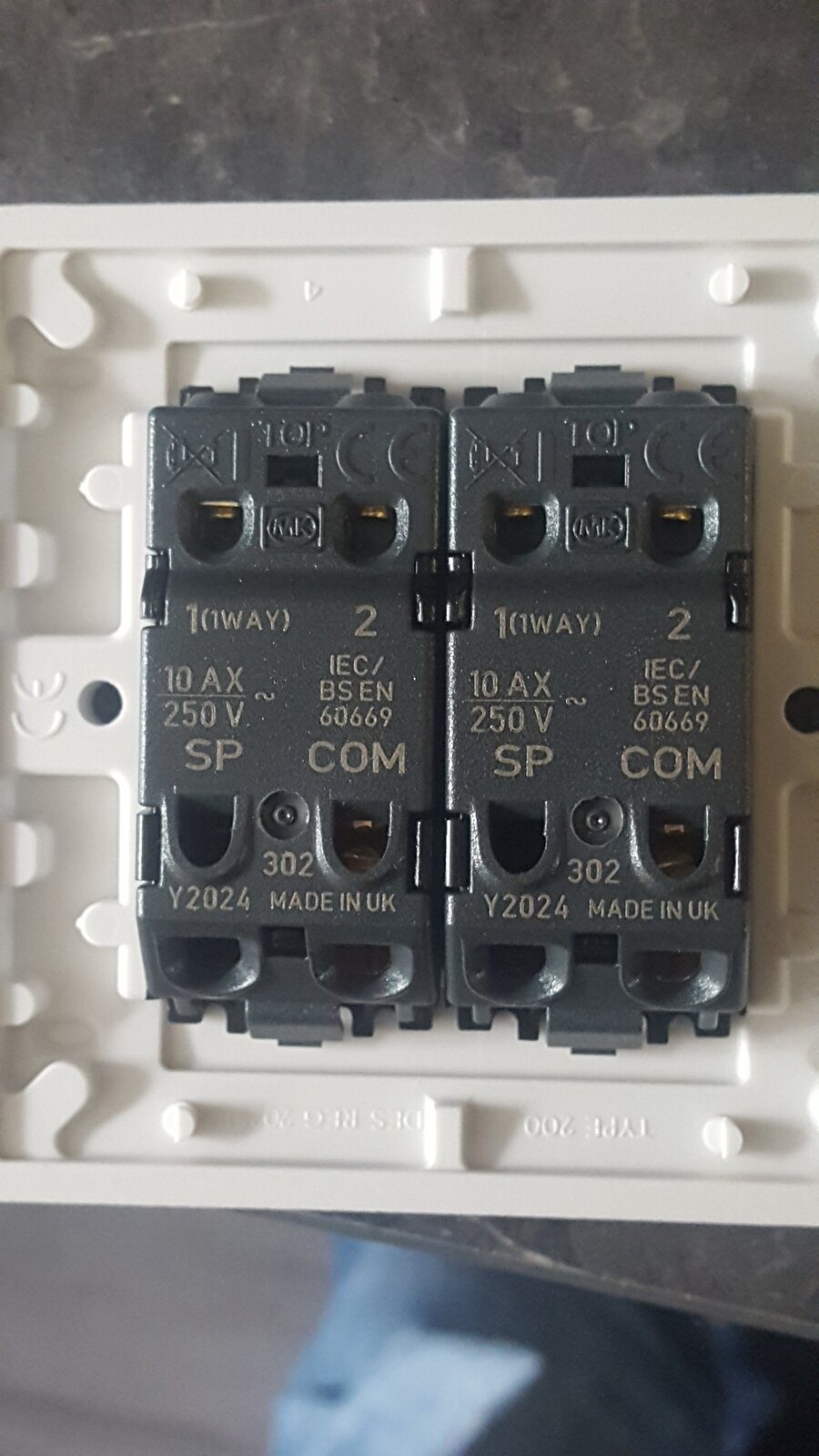

    20200728_152058.jpg 20200728_152143.jpg

  2. Sponsored Links
  3. bernardgreen

    bernardgreen

    Joined:
    3 Nov 2006
    Messages:
    25,006
    Thanks Received:
    2,469
    Location:
    Bedfordshire
    Country:
    United Kingdom

    • Like Like x 1
  4. eviltoad

    eviltoad

    Joined:
    12 Nov 2012
    Messages:
    51
    Thanks Received:
    2
    Country:
    United Kingdom

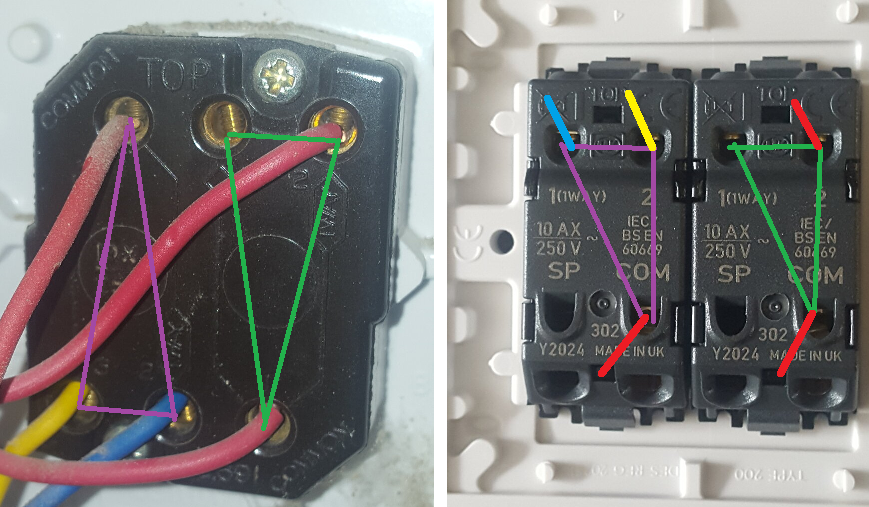

    Hi Bernard,

    Thanks, drawn like that makes it easy to follow.

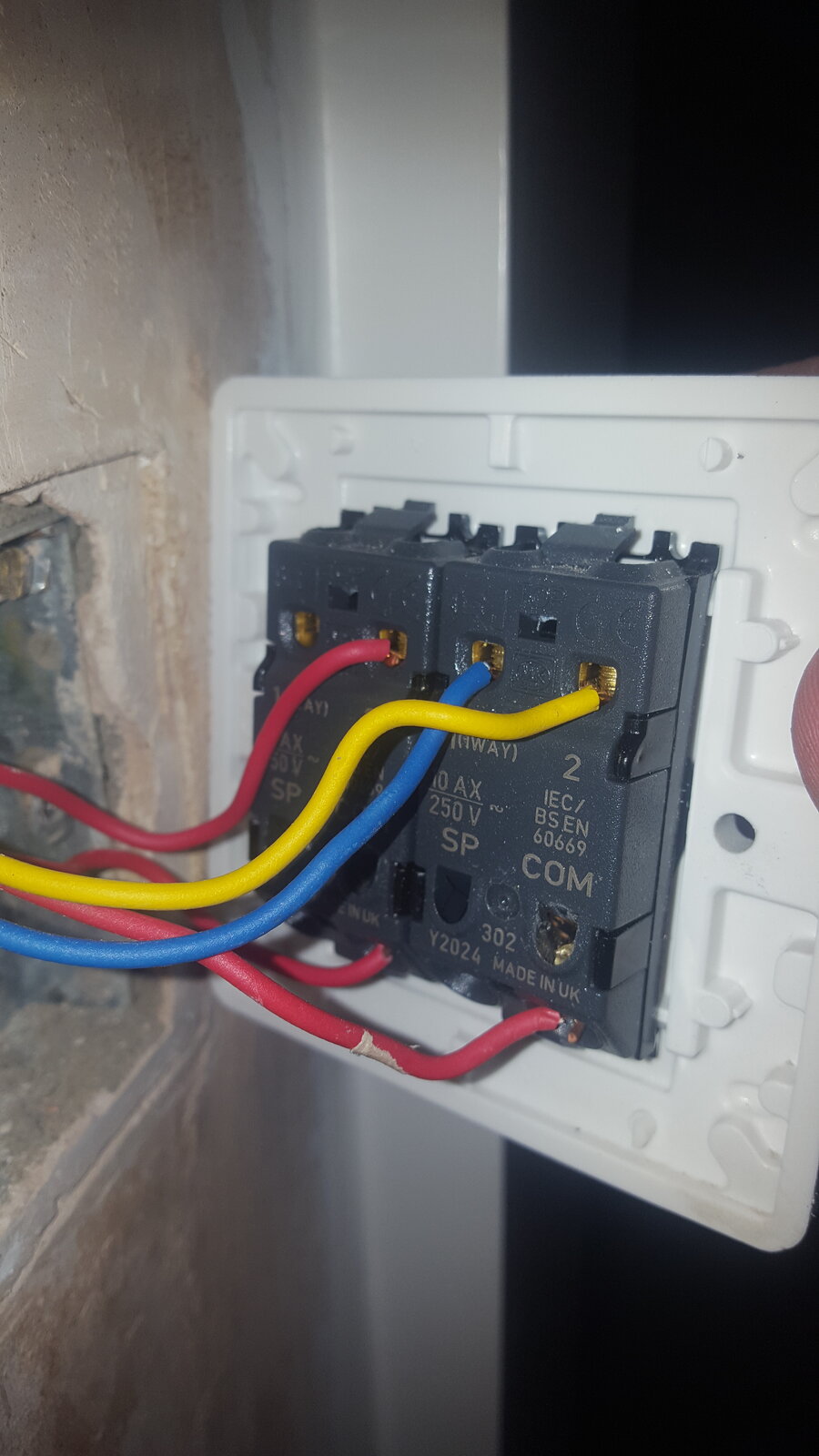

    Just tested. Kitchen works fine however strange things happening with the hall lights.

    Used to be able to turn the hall light on/off from either set of switches (these by kitchen and others by front door).

    Now if I turn them on with this switch I can turn on/off by front door, but if I turn them off at this switch I can't turn on at front door.

    Any suggestions?

    Thanks
    Si

  5. EFLImpudence

    EFLImpudence

    Joined:
    7 Jul 2010
    Messages:
    36,125
    Thanks Received:
    4,035
    Location:
    Retired to:
    Country:
    Portugal
    Make sure the Red, Yellow and Blue in the left switch all come from the same cable.

  6. eviltoad

    eviltoad

    Joined:
    12 Nov 2012
    Messages:
    51
    Thanks Received:
    2
    Country:
    United Kingdom
    Hi,

    Thanks, yup that looks fine.

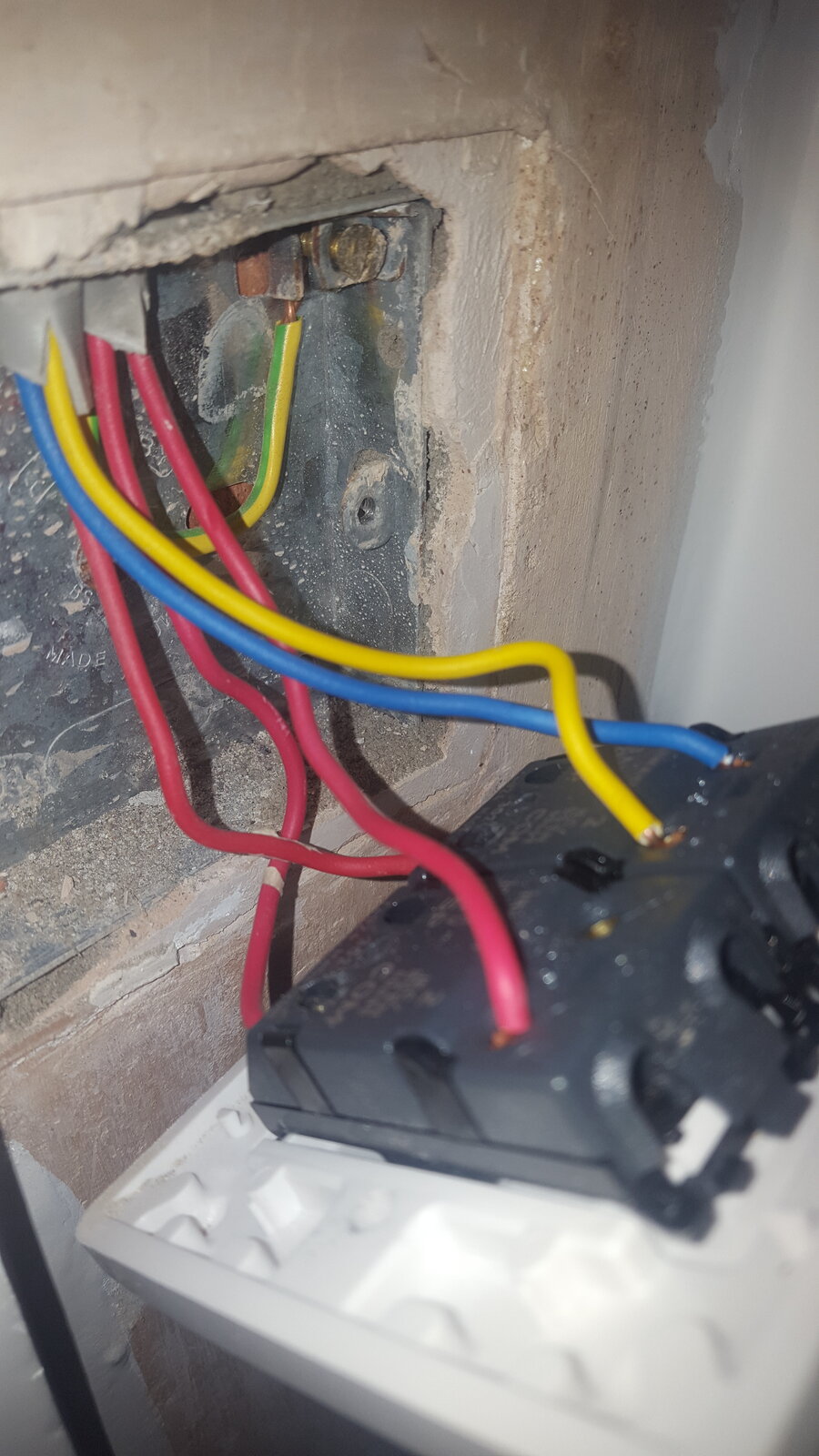

    Presume yellow and blue are the right way round as per Bernard's diagram.

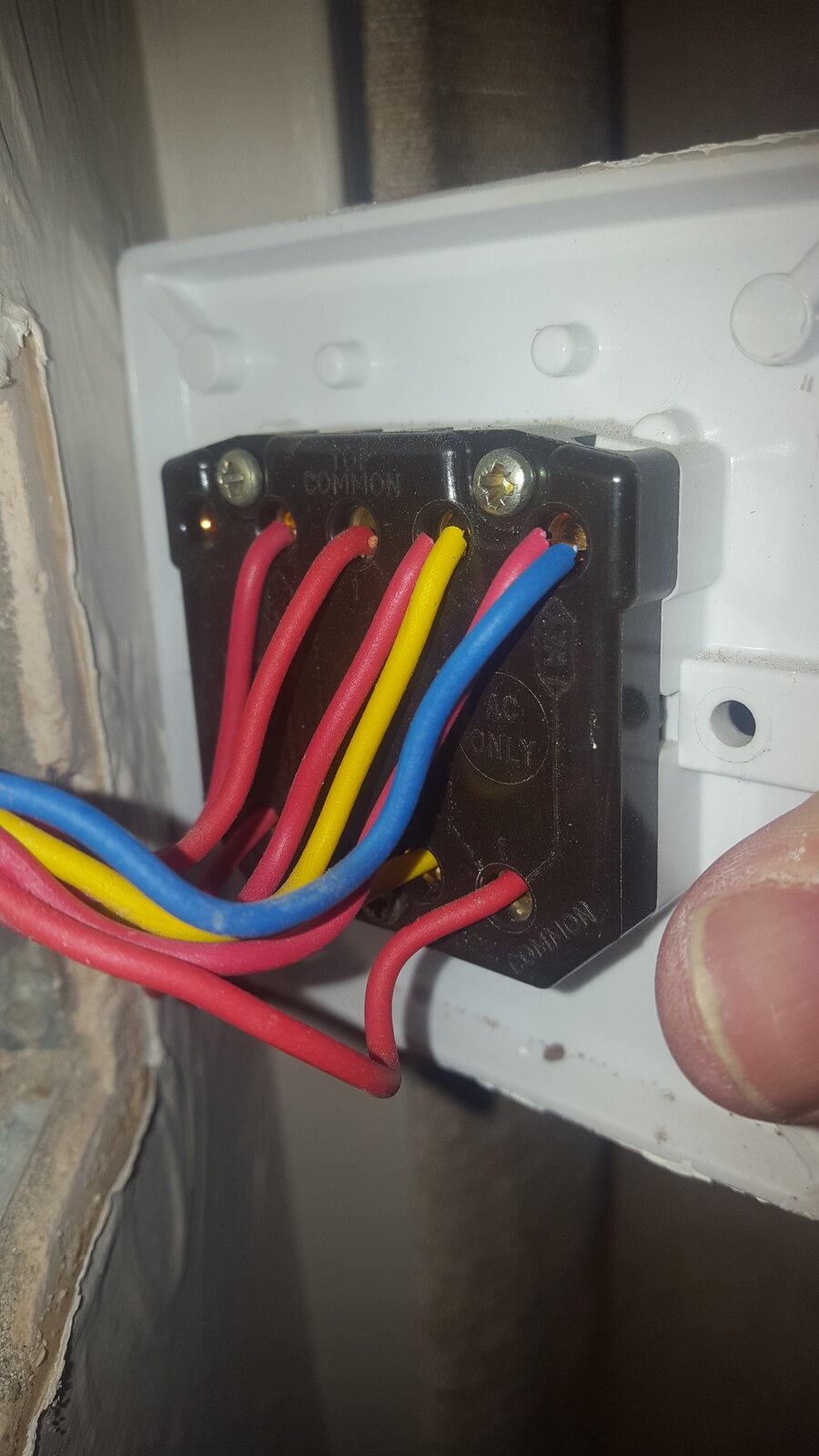

    Reason I ask is on the other switch they are the other way round (far right of photo)


    Last edited: 28 Jul 2020
  7. EFLImpudence

    EFLImpudence

    Joined:
    7 Jul 2010
    Messages:
    36,125
    Thanks Received:
    4,035
    Location:
    Retired to:
    Country:
    Portugal
    Should work properly then.

    Many an hour wasted because of faulty new items.



    You could try putting the R, Y & B in the other switch.

    • Like Like x 1
  8. EFLImpudence

    EFLImpudence

    Joined:
    7 Jul 2010
    Messages:
    36,125
    Thanks Received:
    4,035
    Location:
    Retired to:
    Country:
    Portugal
    Or put them back in the old switch.

  9. bernardgreen

    bernardgreen

    Joined:
    3 Nov 2006
    Messages:
    25,006
    Thanks Received:
    2,469
    Location:
    Bedfordshire
    Country:
    United Kingdom

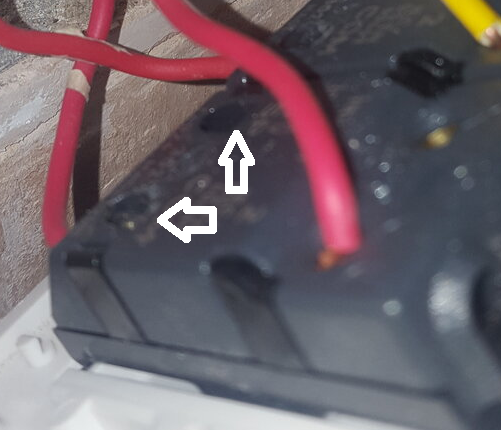

    It isn't very clear but are there wires in these terminals ?


  10. Sponsored Links
  11. eviltoad

    eviltoad

    Joined:
    12 Nov 2012
    Messages:
    51
    Thanks Received:
    2
    Country:
    United Kingdom
    Right,

    This is a fun game :)

    As you suggested EFLimpudence, swapped left switch for right and the hall works correctly. Kitchen doesn't work at all now :(.

    For the kitchen should it be COM and 2 or COM and 1 (as it only has the one switch)?

    Si

  12. rsgaz

    rsgaz

    Joined:
    28 Jul 2014
    Messages:
    1,832
    Thanks Received:
    500
    Country:
    United Kingdom
    They are screwdriver holes bernard! It's the "tighten all the terminals from above" feature.

  13. EFLImpudence

    EFLImpudence

    Joined:
    7 Jul 2010
    Messages:
    36,125
    Thanks Received:
    4,035
    Location:
    Retired to:
    Country:
    Portugal
    Not very clear but I think those are the other way round.


  14. eviltoad

    eviltoad

    Joined:
    12 Nov 2012
    Messages:
    51
    Thanks Received:
    2
    Country:
    United Kingdom
    Hi,

    Apologies for any confusion here.

    So I swapped the kitchen and hall wires over.

    Kitchen on left, hall on right. Hall now works correctly, kitchen doesn't. Although kitchen did before I swapped.

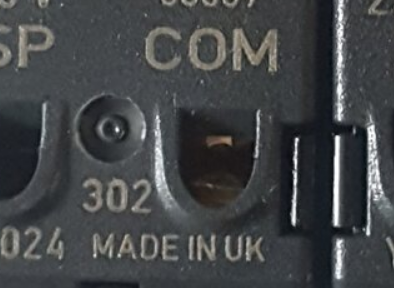

    Sorry Bernard, clearer photo below.
