Contactor wiring

A

awaitcall

Joined
13 Jun 2011
Messages
179
Reaction score
0
Location
Lancashire
Country
United Kingdom
I hope i can get some help in installing a contactor for some flood lights in my garden

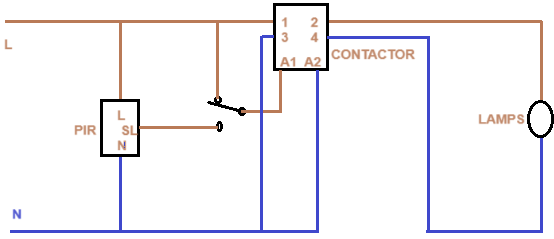

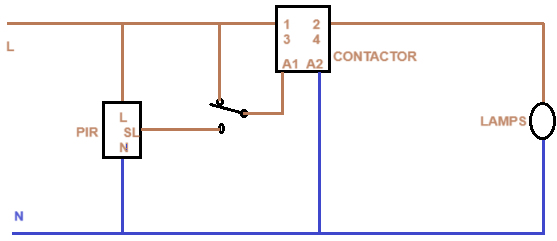

2 pole contactor terminals 1 and 3 top 2 and 4 bottom and a1 and a2

PIR sensor
single two way switch ( L1, L2 and common) to put in sensor mode or permanently on
cable from the bank of LED floodlights


much appreciated

Sponsored Links


Can also be double pole switched.


Do you need to use a contactor, what power of floodlights are being used?
