New boiler relay (hive home)

Discussion in 'Plumbing and Central Heating' started by garymcv, 17 Dec 2013.

  1. garymcv

    garymcv

    Joined:
    16 Nov 2009
    Messages:
    5
    Thanks Received:
    0
    Location:
    Surrey
    Country:
    United Kingdom
    Hi

    I am replacing the thermostat and relay on my boiler and I am a little lost on the wiring I hope someone can help map them across

    I currently have a OWL Intuition cw which instructions state:

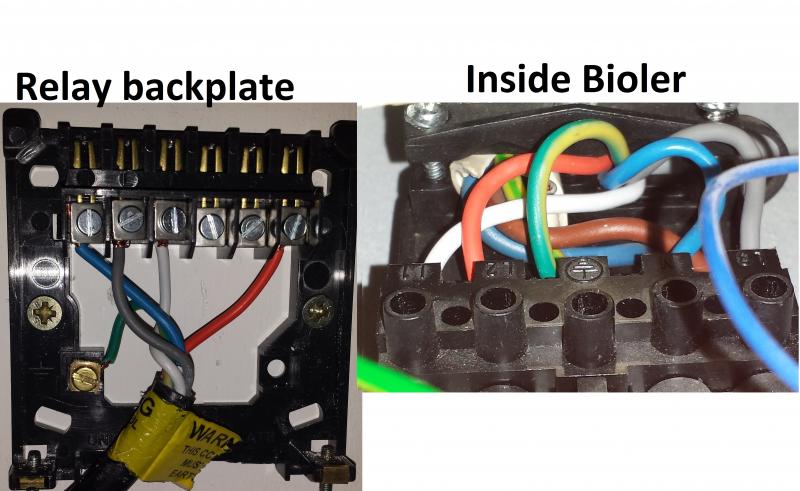

    The actual wiring to me ideal HE30 boiler and the backplate looks like:

    and the new wiring diagram for the hive is:

    Any help that this forum can provide would be great. Its getting cold this winter!

    Cheers

  2. Sponsored Links
  3. Jplumbing

    Jplumbing

    Joined:
    5 May 2011
    Messages:
    12
    Thanks Received:
    3
    Location:
    Sussex
    Country:
    United Kingdom
    move orange to pin 3 if i under stood you correctly.

    Switch Live comes back to L2 (L1 is a additional live )

    • Thanks Thanks x 1
  4. Gas2Air

    Gas2Air

    Joined:
    2 Aug 2004
    Messages:
    1,559
    Thanks Received:
    165
    Country:
    United Kingdom
    Nice use of mid position wiring there. Yes orange to 3.

    • Thanks Thanks x 1
  5. garymcv

    garymcv

    Joined:
    16 Nov 2009
    Messages:
    5
    Thanks Received:
    0
    Location:
    Surrey
    Country:
    United Kingdom
    So
    N to N (Permanent neutral);
    L3 to L (Permanent live);
    L1 to 1 (Common);
    Nothing to 2 (Heating off (NC));
    L2 to 3 (Heating on (NO));
    Nothing to 4 (unused); and,
    Earth to Earth.

    Thanks!

  6. Sponsored Links
  7. Gas2Air

    Gas2Air

    Joined:
    2 Aug 2004
    Messages:
    1,559
    Thanks Received:
    165
    Country:
    United Kingdom
    Keep the wiring as it is. Move orange to 3. The hive will fit on that backplate.

  8. garymcv

    garymcv

    Joined:
    16 Nov 2009
    Messages:
    5
    Thanks Received:
    0
    Location:
    Surrey
    Country:
    United Kingdom
    To be clear, you mean move the orange wire on the back plate from position 4 to position 3?

  9. Gas2Air

    Gas2Air

    Joined:
    2 Aug 2004
    Messages:
    1,559
    Thanks Received:
    165
    Country:
    United Kingdom
    Yes. The backplate is just that. The hive will switch from 3.

  10. garymcv

    garymcv

    Joined:
    16 Nov 2009
    Messages:
    5
    Thanks Received:
    0
    Location:
    Surrey
    Country:
    United Kingdom
    Great thanks!
