Pir wiring confirmation

Discussion in 'Electrics UK' started by ipbr21054, 12 Dec 2013.

  1. ipbr21054

    ipbr21054

    Joined:
    13 Nov 2008
    Messages:
    557
    Thanks Received:
    3
    Location:
    Avon
    Country:
    United Kingdom
    I have a 2 gang on/off switch in the house that is controlling a lantern on the drive on one switch & a porch light on the other switch.
    I have now removed the lantern & replaced it with a lantern with pir built in.
    Now one switch inside needs to be left in the on position to supply a feed to the lantern/pir.

    My question is,can i remove the 2 gang switch inside for a 1 gang switch and join the wires that were removed from the second switch & just join together in a choc box and leave in the back box.
    This then will only show the onn/off switch for the porch light.

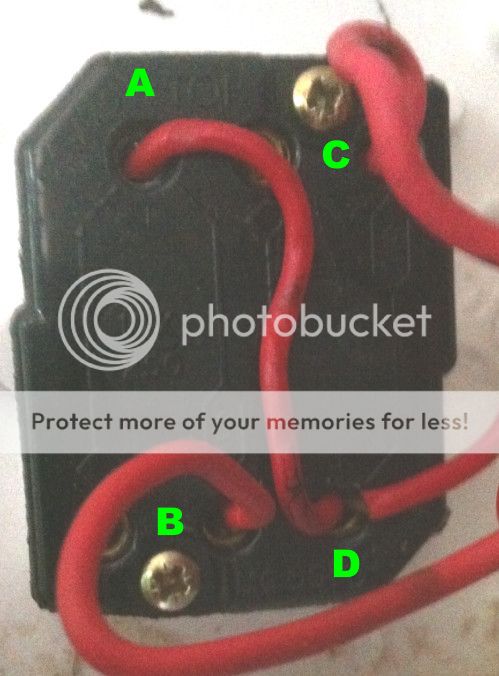

    Please take a look at my photo.
    Swicth A-B Lantern/pir
    Switch C-D Porche light

    [​IMG]

  2. wingcoax

    wingcoax

    Joined:
    1 Mar 2009
    Messages:
    1,948
    Thanks Received:
    158
    Location:
    Blackpool
    Country:
    United Kingdom
    Why? You may find a need to override the pir and you cannot do that with no switch. As well as maintainance requirements.

  3. riveralt

    riveralt

    Joined:
    4 Jan 2004
    Messages:
    4,020
    Thanks Received:
    597
    Country:
    United Kingdom
    Yes but why?

  4. ipbr21054

    ipbr21054

    Joined:
    13 Nov 2008
    Messages:
    557
    Thanks Received:
    3
    Location:
    Avon
    Country:
    United Kingdom
    Just above this switch is the fuse box.
    Because there is 2 switches on the same face plate it will be switched off by mistake all the time.

    Or is there such a switch which has the 2 connections for all the wires on the rear but only one on / off switch on the front ?

  5. swampy2

    swampy2

    Joined:
    26 Nov 2013
    Messages:
    139
    Thanks Received:
    18
    Country:
    United Kingdom
    1 gang switch - lantern wire (B) - connect to live connection at switch(D)

    or change 2gang 2way switch for 2gang with 1 keyswitch+1way switch available in grid or module setup.

  6. ipbr21054

    ipbr21054

    Joined:
    13 Nov 2008
    Messages:
    557
    Thanks Received:
    3
    Location:
    Avon
    Country:
    United Kingdom
    Is this then correct.

    Wire from A to D throw away.
    Then when i wire up 1 gang switch just add B & D in the same connection.

  7. swampy2

    swampy2

    Joined:
    26 Nov 2013
    Messages:
    139
    Thanks Received:
    18
    Country:
    United Kingdom
    D connection is live supply at switch, which loops to A, remove loop and connect wire B to D.

  8. ipbr21054

    ipbr21054

    Joined:
    13 Nov 2008
    Messages:
    557
    Thanks Received:
    3
    Location:
    Avon
    Country:
    United Kingdom
    Can you just confirm bere i make the connection.

    The new 1 gang switch i have purchased has the following written on it.

    COMMON & L1

    Looking at my photo above of the old switch i need to wire up this new switch as follows.

    Wire B & D to COMMON
    Wire C to L1

    Is this correct.

  9. EFLImpudence

    EFLImpudence

    Joined:
    7 Jul 2010
    Messages:
    29,187
    Thanks Received:
    3,138
    Location:
    Retired to:
    Country:
    Portugal
  10. ipbr21054

    ipbr21054

    Joined:
    13 Nov 2008
    Messages:
    557
    Thanks Received:
    3
    Location:
    Avon
    Country:
    United Kingdom
    Sorry i just changed the text.
    So now i dont know if you were saying yes to before or after .
    Please read and advise again,sorry

  11. EFLImpudence

    EFLImpudence

    Joined:
    7 Jul 2010
    Messages:
    29,187
    Thanks Received:
    3,138
    Location:
    Retired to:
    Country:
    Portugal
    C in one end
    B&D in the other

    It doesn't matter which way round.

  12. ipbr21054

    ipbr21054

    Joined:
    13 Nov 2008
    Messages:
    557
    Thanks Received:
    3
    Location:
    Avon
    Country:
    United Kingdom
    Many thanks

  13. ipbr21054

    ipbr21054

    Joined:
    13 Nov 2008
    Messages:
    557
    Thanks Received:
    3
    Location:
    Avon
    Country:
    United Kingdom
    Having done this i have just started to notice that the one switch inside the house when switched off something must happen as the pir light outside switches on ?

  14. winston1

    winston1

    Joined:
    11 Jan 2010
    Messages:
    4,924
    Thanks Received:
    345
    Location:
    London
    Country:
    United Kingdom
    You can fix that with a bit of masking tape.
