Self Install Ev Charger

Discussion in 'Electrics UK' started by Ihmix, 3 Dec 2021.

  1. Ihmix

    Ihmix

    Joined:
    24 Nov 2021
    Messages:
    28
    Thanks Received:
    0
    Country:
    United Kingdom
    7FB01D27-2BCE-4A37-B5F9-A27CACEA96BC.jpeg 6E7C1BA1-5AED-430A-95C7-C299444C1D23.jpeg 162BCA44-851A-4E5F-AB3D-A7550217D90B.jpeg Evening all,

    I am looking to install a 7kw Ev charger and just wanted to know if this is possible with the current setup I have.

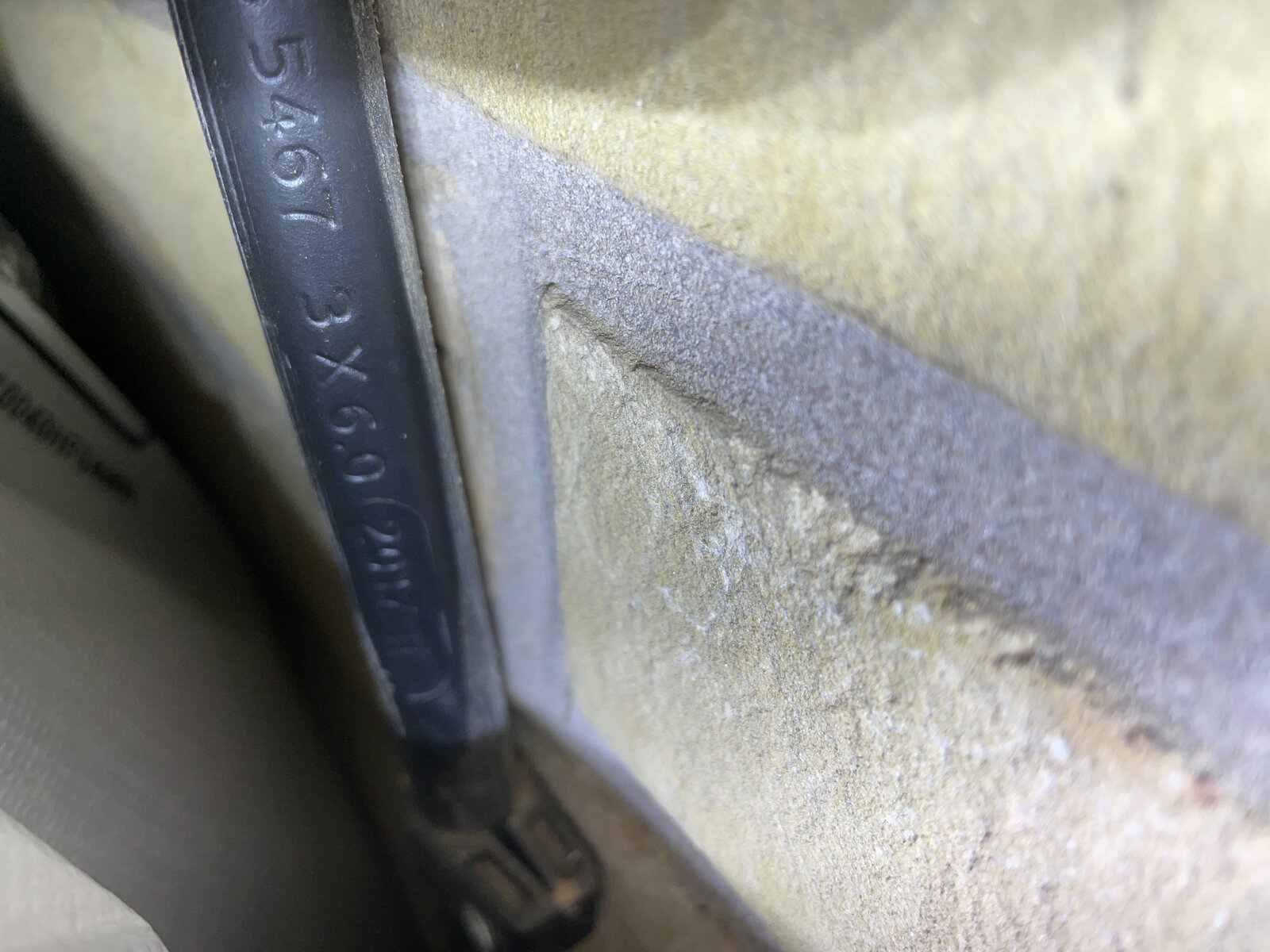

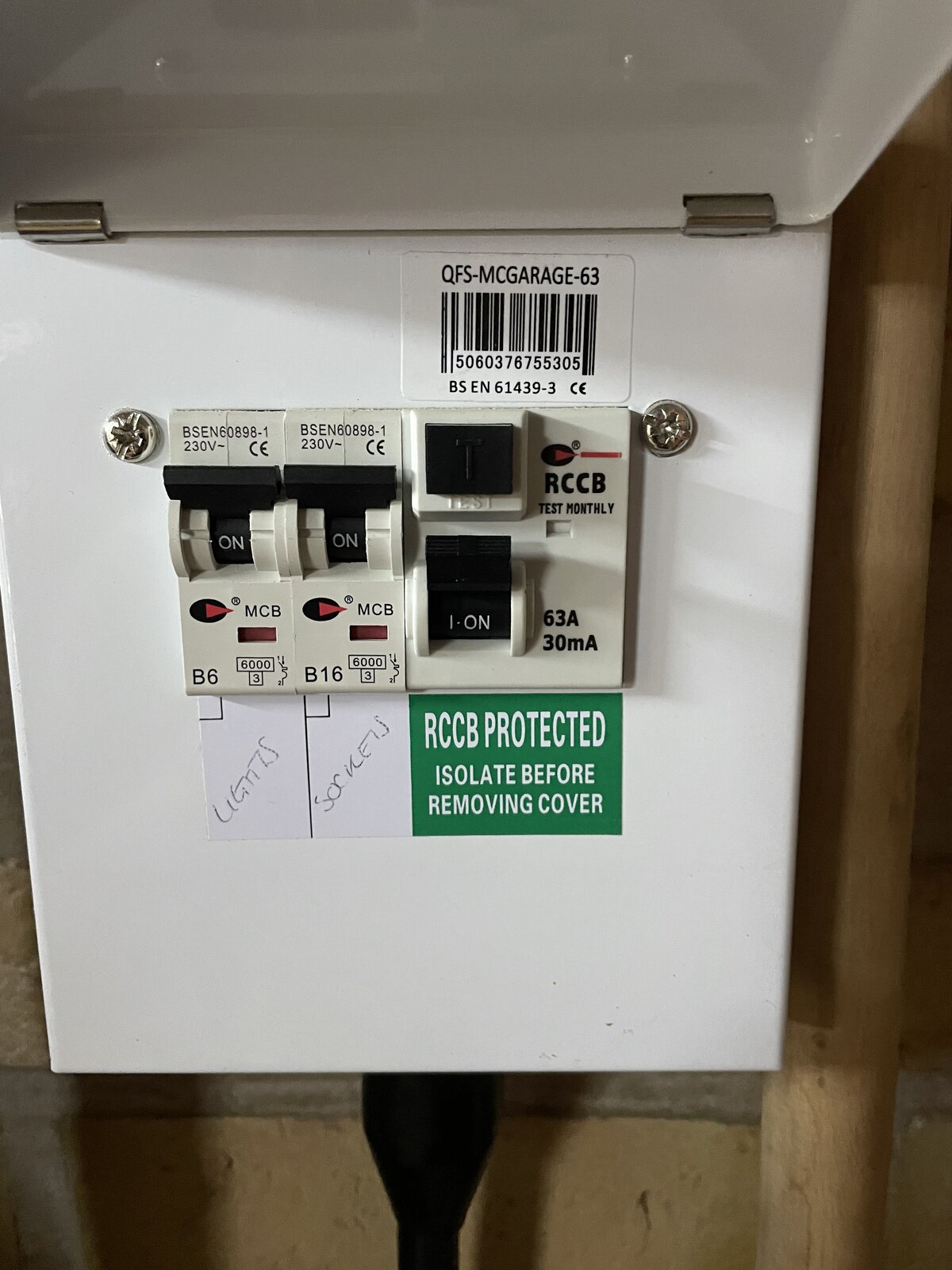

    The house is just over three years old and the garage cu currently has the usual 2 rcd 1 16a and 1 6a. The cable feeding this is a 6mm 3 core cable which I believe is good enough to supply a 7kw Ev charger.

    I currently have a 80a fuse in the electric box and not electric shower in the house.

    firstly is it possible to install the Ev charger without upgrading the cable. I have attached a photo of the cable, I realise I will need to upgrade the garage cu and adjust the home consumer unit by moving the rcd and upgrading it from its current 32a rating. I also have 4 spare ways in the consumer unit as it was recently upgraded.

    any thought would be very much appreciated.

    oh looking to install the Anderson Ev.

    Thanks

  2. Sponsored Links
  3. ericmark

    ericmark

    Joined:
    27 Jan 2008
    Messages:
    18,903
    Thanks Received:
    1,777
    Location:
    Llanfair Caereinion, Nr Welshpool
    Country:
    United Kingdom
    The Part P regulations do allow you to register work and if the LABC inspector feels you have the skill you can DIY.

    However by time you have paid the LABC and kissed good by to the grant not sure if worth while.

    First you need the reading to work out if earth and volt drop etc is within limits. And you need to work out what to do about earthing.

    So as it stands not a clue what would need doing, but you need to sign the installing certificate so if you don't know then you have not got the skill required.

    Go to IET web site down load the free forms, and see if you know how to fill them in.

  4. Ihmix

    Ihmix

    Joined:
    24 Nov 2021
    Messages:
    28
    Thanks Received:
    0
    Country:
    United Kingdom
    Thanks for your quick reply ericmark I would do as you suggest.

  5. Adam_151

    Adam_151

    Joined:
    17 Jun 2004
    Messages:
    6,705
    Thanks Received:
    280
    Country:
    United Kingdom

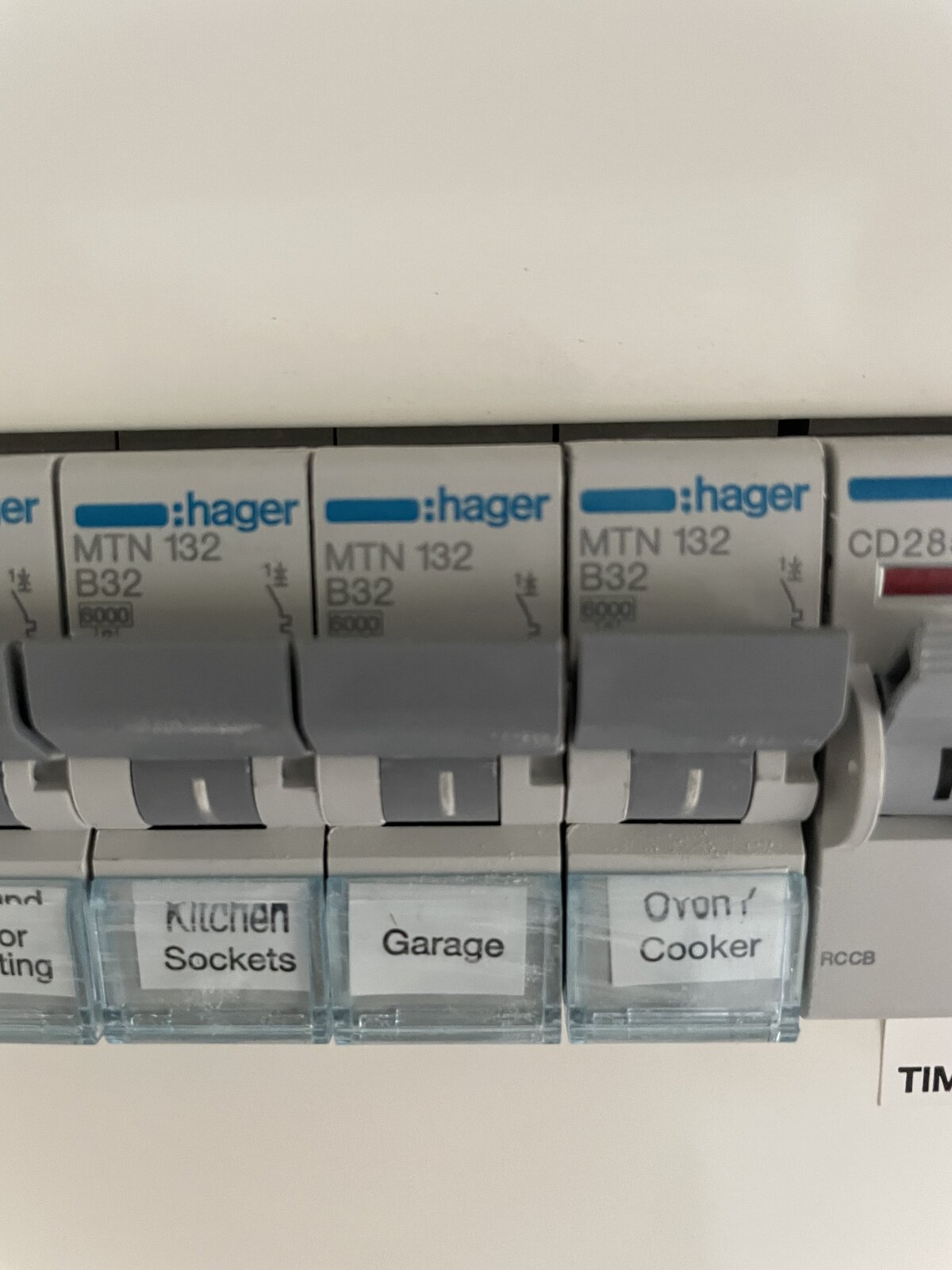

    Have you a wider shot of the house board?

    Generally you'd be looking to ensure that the supply to the garage is not on any RCD (provided its not T/E in wall at any point, and install is not TT), and replace the garage board with one that has a main switch and a type A rcbo for each cirucit, preferably one that breaks the neutral as well as the line (IIRC wylex and Cp fusebox do, but hager don't). The DP breaking is not such an issue if there is a second RCD in the chargepoint that does this.

    I would say, its not a DIY job though, no harm in understanding what needs to happen, but to check the protection on the chargepoint for example requires equipment that a DIYer would not have

    • Like Like x 1
  6. winston1

    winston1

    Joined:
    11 Jan 2010
    Messages:
    7,317
    Thanks Received:
    568
    Location:
    London
    Country:
    United Kingdom
  7. BlueLoo

    BlueLoo

    Joined:
    1 Dec 2021
    Messages:
    1,043
    Thanks Received:
    138
    Country:
    Ireland
    An alternative might be to use the supplied granny charger with its 16a commando plug and fit that plug in the garage.
    Not a dedicated EV Charger, not as safe as a dedicated ev charger and likely to not as flexible as a dedicated ev Charger but its legal, doable and reasonable.

    Which, i would argue, installing an ev Charger yourself isnt....

  8. Ihmix

    Ihmix

    Joined:
    24 Nov 2021
    Messages:
    28
    Thanks Received:
    0
    Country:
    United Kingdom
    3EBB27B0-844C-4EF0-9608-455A924BA48C.jpeg 6B877213-FE1F-40E1-919F-3BCC15A49F95.jpeg 3EBB27B0-844C-4EF0-9608-455A924BA48C.jpeg 6B877213-FE1F-40E1-919F-3BCC15A49F95.jpeg

  9. flameport

    flameport

    Joined:
    10 Mar 2007
    Messages:
    10,092
    Thanks Received:
    2,037
    Location:
    Poole, Dorset
    Country:
    United Kingdom

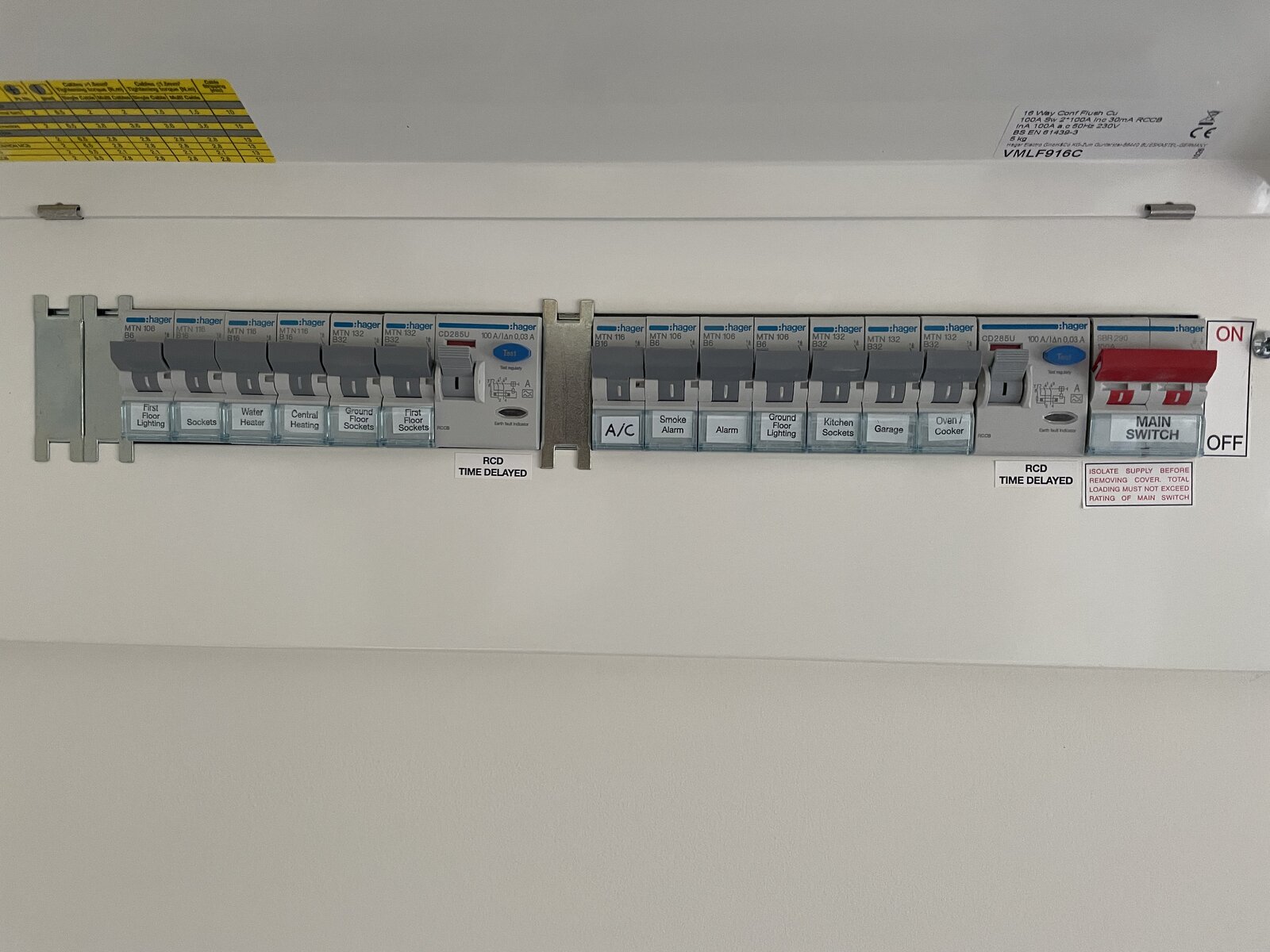

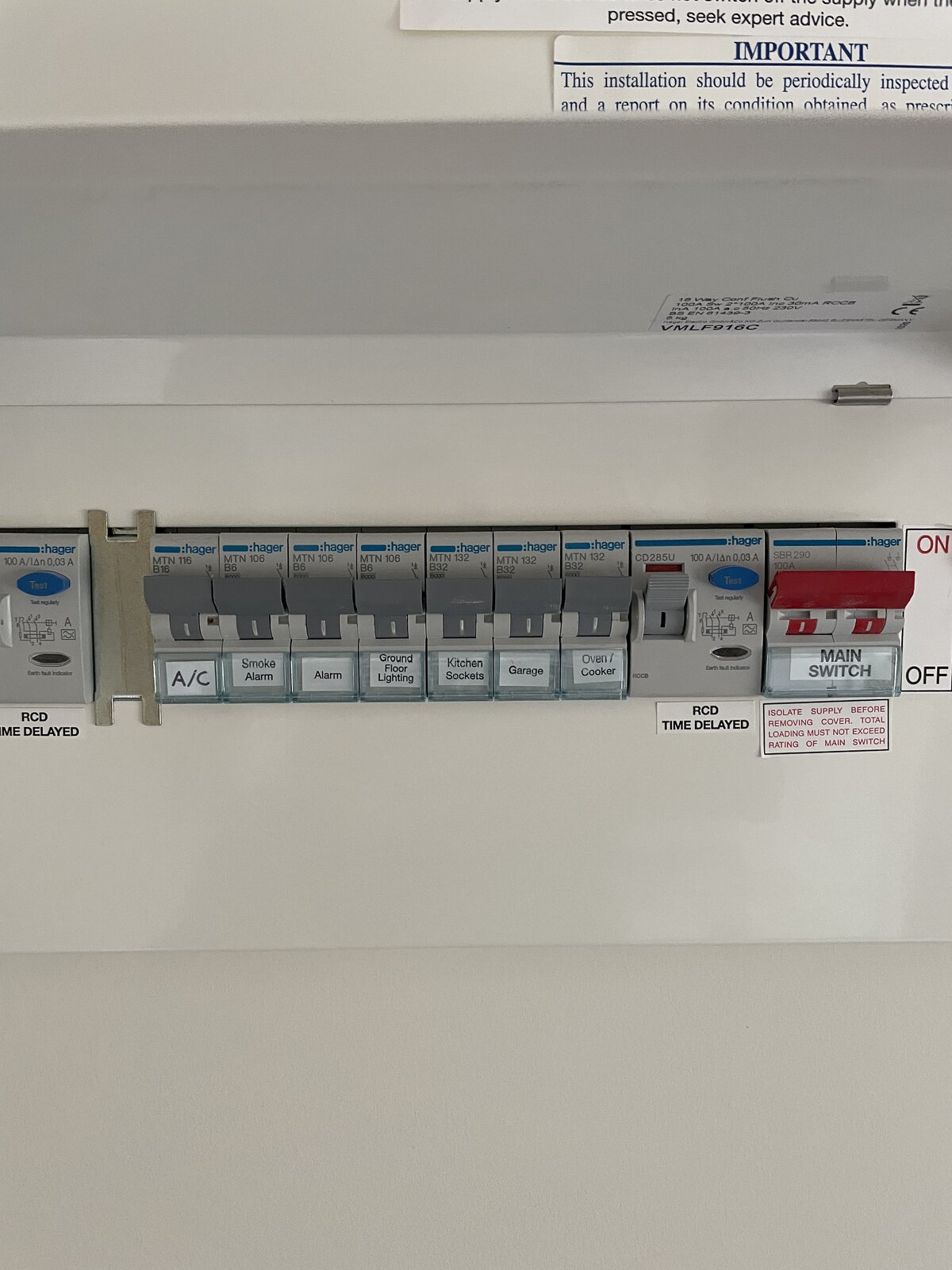

    The Hager consumer unit will require some rearrangement internally, so the garage is on it's own non-RCD circuit.
