Switch and flood light issue

[Hyperway]

Ok thank you both, are you able to provide a url link to a suitable relay? Thanks.



[EFLImpudence]

Dare I?

https://www.eibabo.uk/schalk/switch...-pulse-switch-rds-u1-eb15710284?fs=1376075477

I just searched for the equivalent of what you found.



[SUNRAY]

Why?

To let it work the way it's intended to work. Sorry hadn't seen all the replies and changes.

Dare I?

https://www.eibabo.uk/schalk/switch...-pulse-switch-rds-u1-eb15710284?fs=1376075477

I just searched for the equivalent of what you found.

That's 2 relays in one package



[Hyperway]

Thank you, are you able to provide a wire diagram for the one that you have suggested?

I also found the below, the 26.2 has two poles.

https://docs.rs-online.com/5c2a/0900766b816d4f15.pdf



[SUNRAY]

Ok thank you both, are you able to provide a url link to a suitable relay? Thanks.

Something like this but you will need to put it in an enclosure of some sort.
https://www.screwfix.com/p/british-...B0UAUC7TjveM2Kj7YV4aAl6HEALw_wcB&gclsrc=aw.ds



[EFLImpudence]

That's 2 relays in one package

That's why I said "I just searched for the equivalent of what you found".

It would do - and less than a pound more than what the OP found.



[bernardgreen]

https://www.screwfix.com/p/wylex-nh-ip40-2-module-unpopulated-din-enclosure/32311

should be OK for the enclosure



[SUNRAY]

Thank you, are you able to provide a wire diagram for the one that you have suggested?

I also found the below, the 26.2 has two poles.

https://docs.rs-online.com/5c2a/0900766b816d4f15.pdf

They are step relays, ie the first step (energise coil) switches the contacts on, the second step (energise coil) switches the contacts off.



[Hyperway]

Ok thanks, I’ll stick with your one

https://www.eibabo.uk/schalk/switch...-pulse-switch-rds-u1-eb15710284?fs=1376075477

any advice on wiring diagram welcome.

thanks



[SUNRAY]

https://www.screwfix.com/p/wylex-nh-ip40-2-module-unpopulated-din-enclosure/32311

should be OK for the enclosure

Yes agreed, probably the most economical too.

Something like this but you will need to put it in an enclosure of some sort.
https://www.screwfix.com/p/british-...B0UAUC7TjveM2Kj7YV4aAl6HEALw_wcB&gclsrc=aw.ds



[Hyperway]

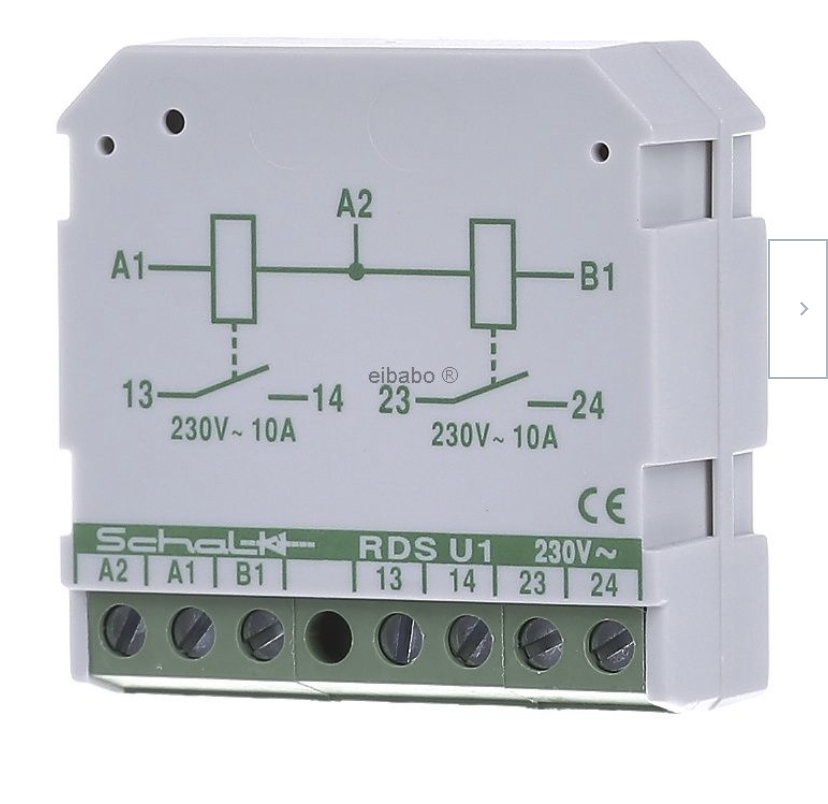

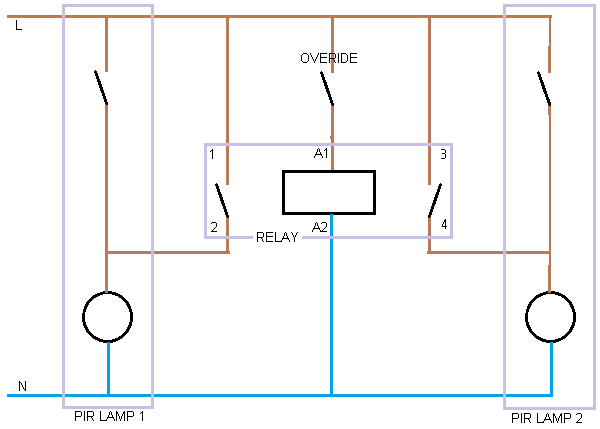

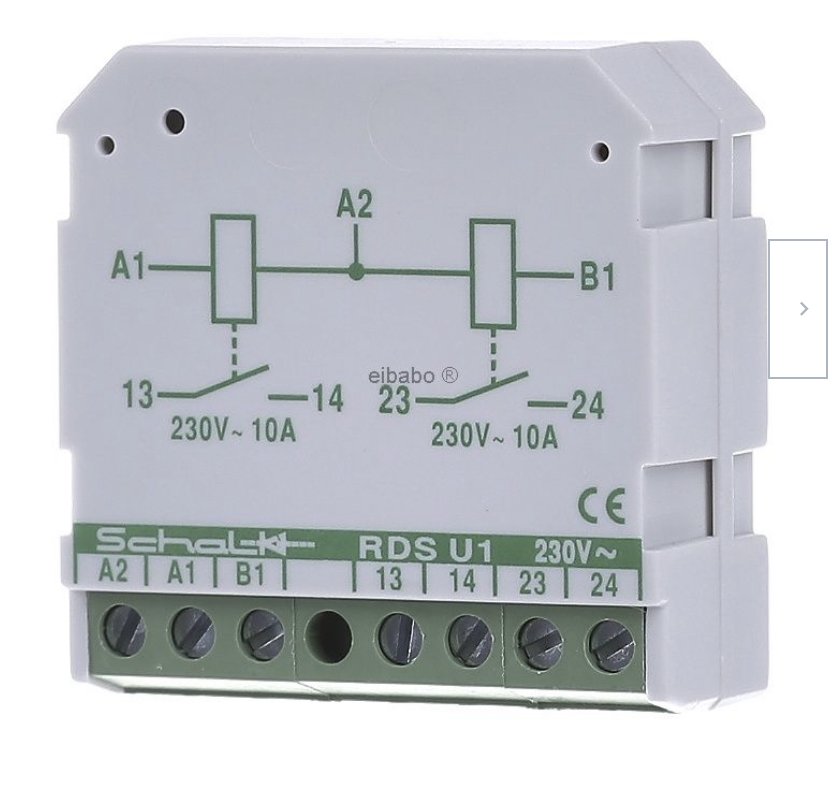

Thanks for diagram, so A1 live A2 neutral… is B1 not used? Are you able to draw on this photo easy for me to understand? Thank you



[bernardgreen]

hanks for diagram, so A1 live A2 neutral… is B1 not used?

That is two separate relays, it is not what you need.



[Hyperway]

I believe it is, just trying to understand wiring, for the relay shown. Thanks



[SimonH2]

Link B1 and A1 then both sides will operate together.
