Help illustrating join to parapet wall

Joined
22 Jan 2012
Messages
2,498
Reaction score
329
Location
Jersey
Country
United Kingdom
Hi all,

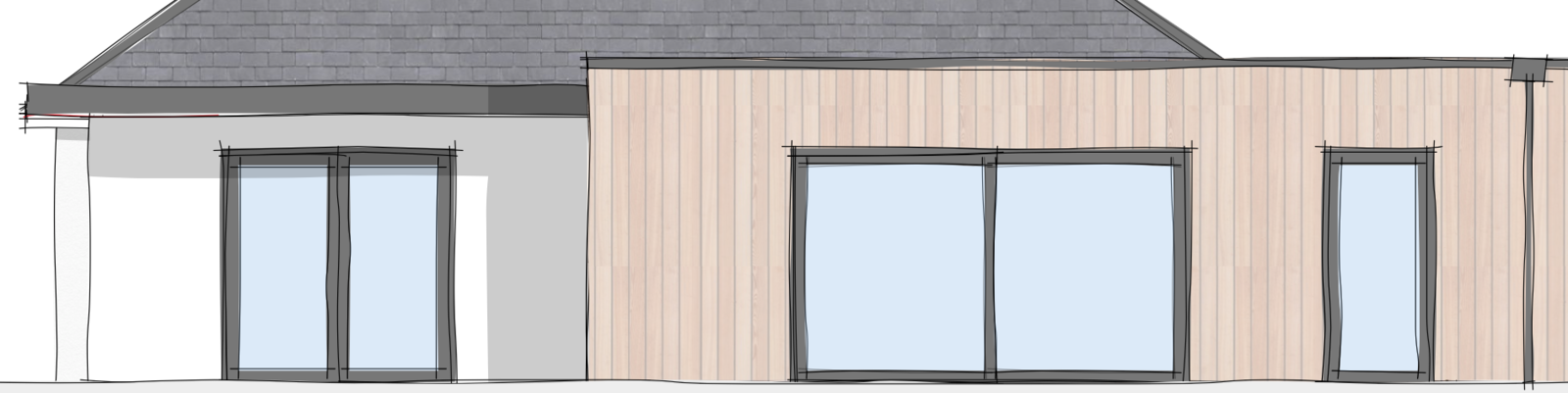

We are planning an extension, and have some elevation options from our architect. Our favourite is below.

The left room would be a standard flat roof with gutter, and the right room would have a parapet wall. The left room is backset approx. 30cm, and I am struggling to explain to 'the boss' how the connection would look.

I've Googled it for hours, but cannot find anything to illustrate it at all.

Can any experts direct me to a good picture, or even do a quick sketch?

Thanks!!

Screenshot 2020-11-03 at 21.00.59.png

Sponsored Links
Ask your Architect to send you that image in 3D from his software

Ask your Architect to send you that image in 3D from his software

Thanks Woody, I half expected you to be the first to reply! I hadn't considered it may already have a 3D version easily renderable. He is busy, not taking on new work until March, but we want to get everything submitted forPlanning before the end of this year.

Thanks again
