    What ho one and all,

    I am after one of these. Have been searching with Mr google but don't even know what kind of plug it is.
    Grateful for any pointers.

    Thanks and toodle pip.

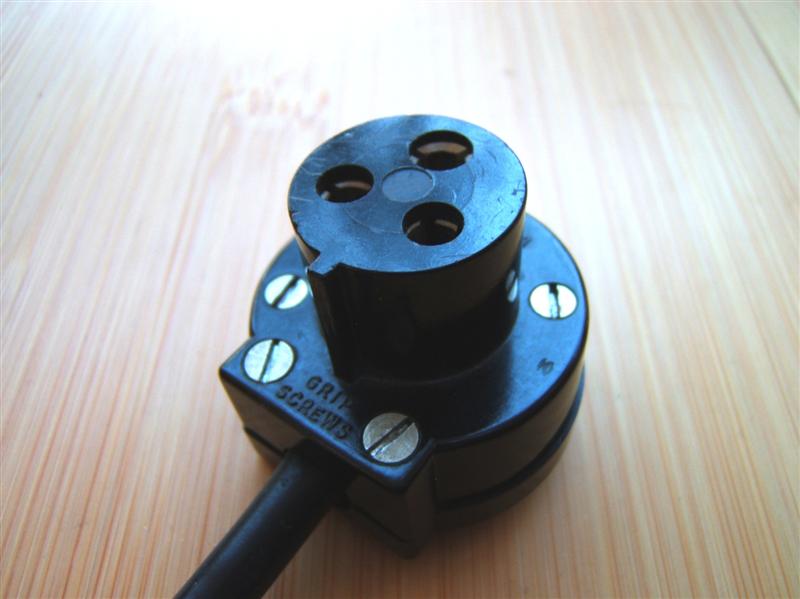

    MainsPlug (Medium).jpg

  2. Sponsored Links
  3. winston1

    winston1

    Joined:
    11 Jan 2010
    Messages:
    6,687
    Thanks Received:
    511
    Location:
    London
    Country:
    United Kingdom
    It is a free socket, not a plug. It was made by Bulgin. Try someone like Farnell or RS.

    • Like Like x 1
  4. JohnD

    JohnD

    Joined:
    15 Nov 2005
    Messages:
    71,837
    Thanks Received:
    4,086
    Location:
    Crossgates
    Country:
    Cook Islands
    is it a power connector for a radio or other appliance?

  5. bernardgreen

    bernardgreen

    Joined:
    3 Nov 2006
    Messages:
    25,129
    Thanks Received:
    2,479
    Location:
    Bedfordshire
    Country:
    United Kingdom
    I am fairly certain that is a PX0430/SE Try a google on that part number.

    EDIT Not quite, the PX0430/SE has female index, the one in the picture has a male index.

  6. Rekusu

    Rekusu

    Joined:
    8 Mar 2010
    Messages:
    169
    Thanks Received:
    0
    Country:
    United Kingdom
    Plug / socket; I assumed it is called a plug, but what do i know? Thanks for correcting me.

    It's a power connector on an old studio flash pack. The existing socket is just fine but I have a plan and a second would be useful.

    Just found and bookmarked the PX0430/SE. How vital is the male index? If I used this female indexed socket, would it matter?

    May be this is an additional dumb question, I could replace the old plug with a standard Bulgin PX0579/63 or similar. What are the chances of this one fitting in the same hole size as the PX0430?

    Last edited: 19 Jan 2020
  7. JohnW2

    JohnW2

    Joined:
    28 Jan 2011
    Messages:
    47,631
    Thanks Received:
    3,098
    Location:
    Buckinghamshire
    Country:
    United Kingdom
    Indeed - I suspect that the OP's one is probably very 'obsolete'. If I recall correctly, the index on those 3A connectors changed gender very many moons (decades) ago.

    Kind Regards, John

  8. JohnW2

    JohnW2

    Joined:
    28 Jan 2011
    Messages:
    47,631
    Thanks Received:
    3,098
    Location:
    Buckinghamshire
    Country:
    United Kingdom
    If the other dimensions were the same, then a PX0430/SE would probably 'fit' OK. However, to do that would probably be potentially dangerous - it looks as if the three 'pin receptacles' are 120° apart and all the same size. If that were the case, it would be possible to plug it in 'incorrectly', which potentially very dangerous consequences.

    Kind Regards, John

  9. SUNRAY

    SUNRAY

    Joined:
    28 Jul 2009
    Messages:
    4,966
    Thanks Received:
    367
    Location:
    Kent
    Country:
    United Kingdom
    I shudder to think about the number in OP that I threw away. I'll have a look but I imagine I only have the later female indent sockets.

    They used to be fitted to 4ft fluo fitting in telephone apparatus rooms.

  10. Sponsored Links
  11. Rekusu

    Rekusu

    Joined:
    8 Mar 2010
    Messages:
    169
    Thanks Received:
    0
    Country:
    United Kingdom
    Thanks for the replies. As I say, it is an old studio flash unit, basically, filled with capacitors. Not used in many year and when I came to use it recently the insulation on the cables from the flash heads had given up. have replaced one and reformed the capacitors and it appears to be working as it should. I guess if the caps where old and dried out, it would not charge or would not hold its charge.

    But it probably has a high trigger voltage which modern digital cameras so not like. My plan is to buy a wireless trigger to protect the camera (and nothing for anyone to trip over!) There is one the fits into the power cable but uses the newer plugs / socket. So I thought, find another one of these and make a short cable that the wireless trigger can plug into.n Of course, the trigger has another cable that plugs into the sync socket.

  12. Robin0577

    Robin0577

    Joined:
    16 Aug 2011
    Messages:
    560
    Thanks Received:
    109
    Location:
    London
    Country:
    United Kingdom
  13. Jackrae

    Jackrae

    Joined:
    20 Nov 2012
    Messages:
    2,199
    Thanks Received:
    368
    Location:
    Dumfriesshire
    Country:
    United Kingdom
    You may be able to change the gender of an available female gender free socket by shaping up a wedge piece and gluing it into the female slot or alternatively you could make the female gender fixed plug into a male so that the more modern female sockets key locate correctly

  14. SUNRAY

    SUNRAY

    Joined:
    28 Jul 2009
    Messages:
    4,966
    Thanks Received:
    367
    Location:
    Kent
    Country:
    United Kingdom
    I think the pins may be different too

  15. Jackrae

    Jackrae

    Joined:
    20 Nov 2012
    Messages:
    2,199
    Thanks Received:
    368
    Location:
    Dumfriesshire
    Country:
    United Kingdom
    You actually need a minimum of three terms to describe such an article
    a) is it chassis mounted (Fixed) or cable mounted (Free)
    b) does it have pins (Male) or sockets (Female)
    c) does it get inserted into something, (Male/Plug) or does it envelope something (Female/Socket)

    So a fuller description for the article would be "Free - Female - Plug"

    By way of example, the standard UK 13A plug is a "Free - Male - Plug" and its corresponding wall-mounted socket is "Fixed - Female - Socket"

    Yes, it's all very confusing, and even more so when you start looking at military style connectors which not only have special castellation keying features but may also have pins and sockets within the same device.
