Bracing on Trusses

Discussion in 'Roofing and Guttering' started by acurachris, 7 Sep 2019.

  1. acurachris

    acurachris

    Joined:
    19 Jan 2006
    Messages:
    315
    Thanks Received:
    64
    Location:
    Manchester
    Country:
    United Kingdom
    Hi All

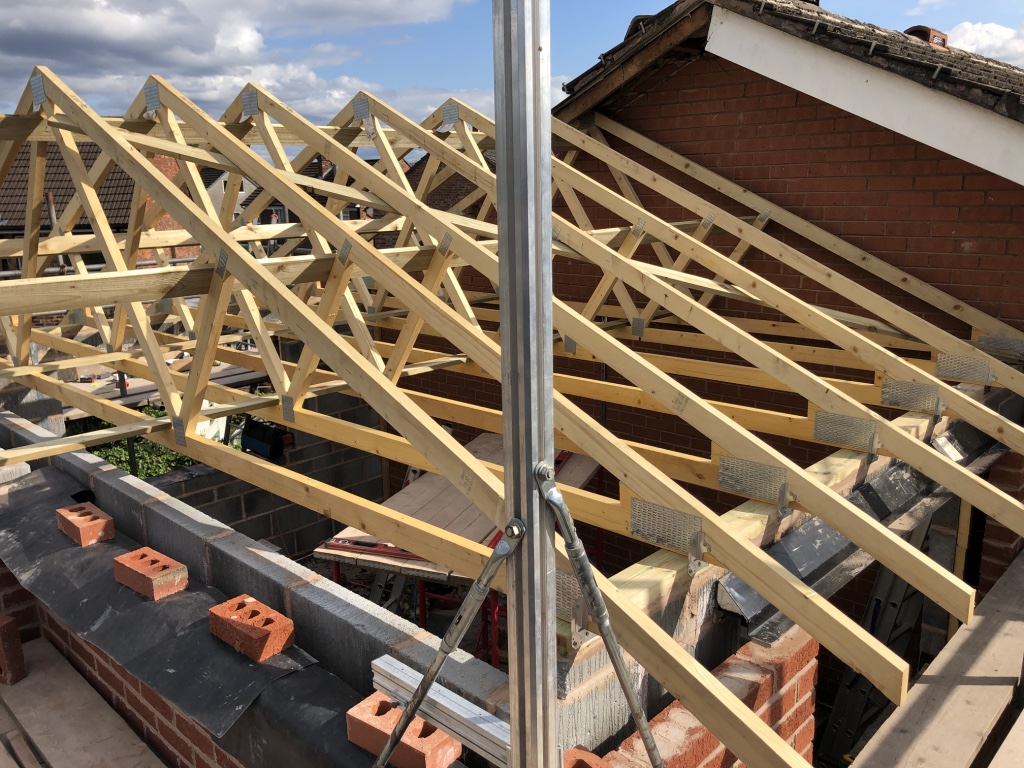

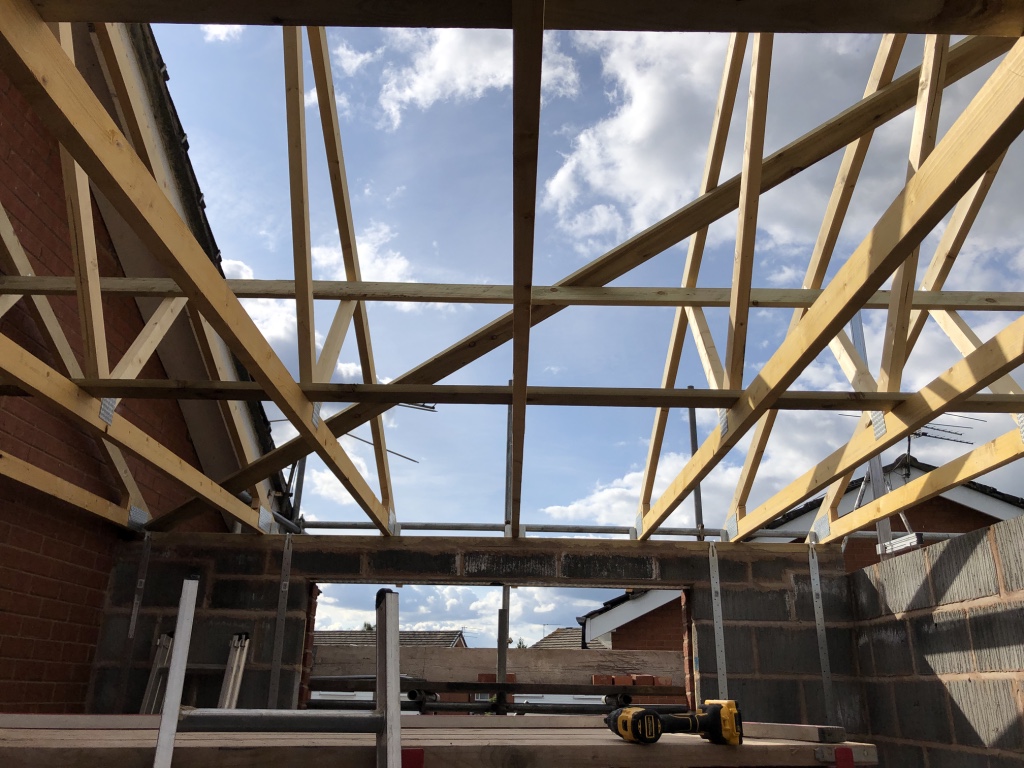

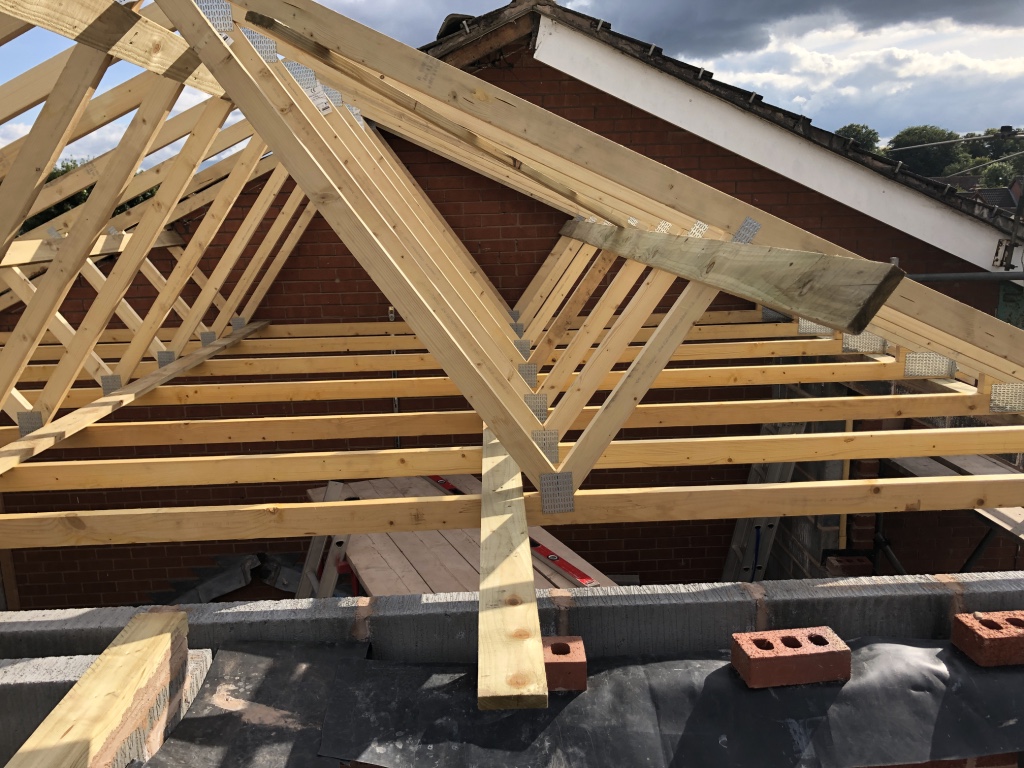

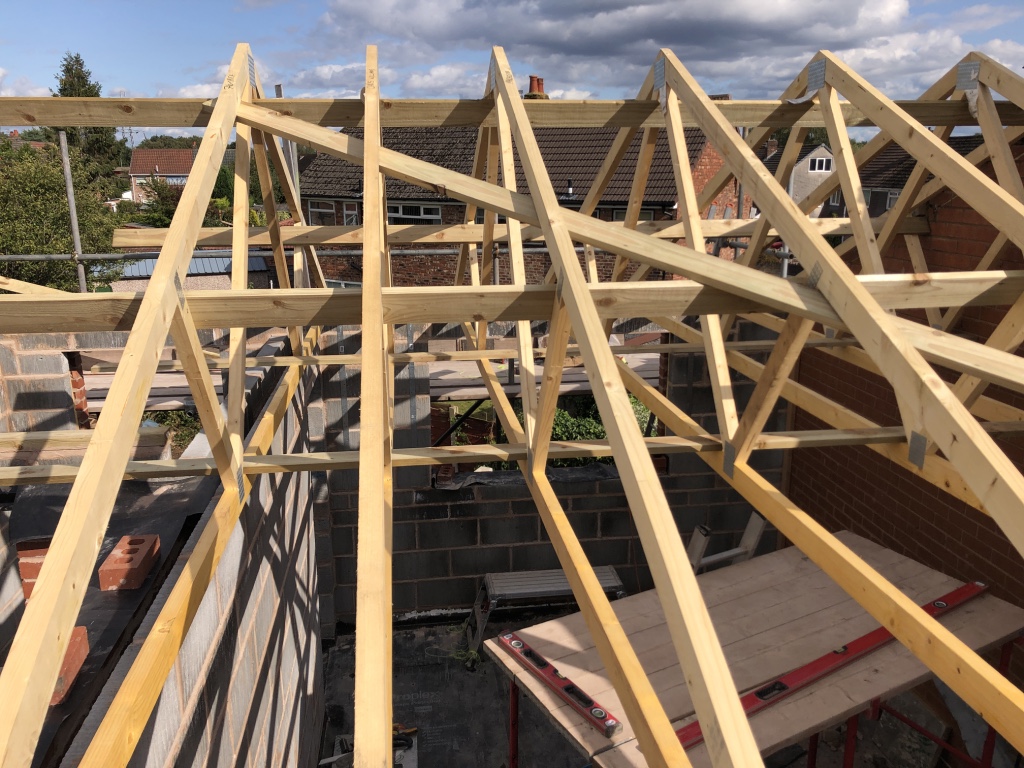

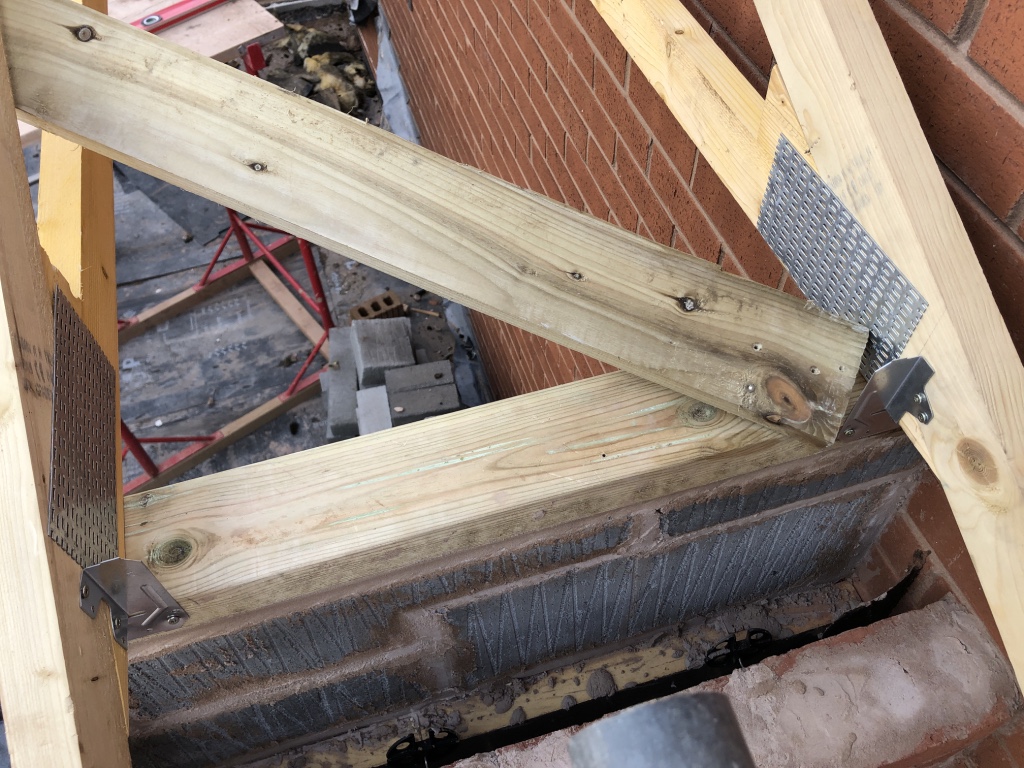

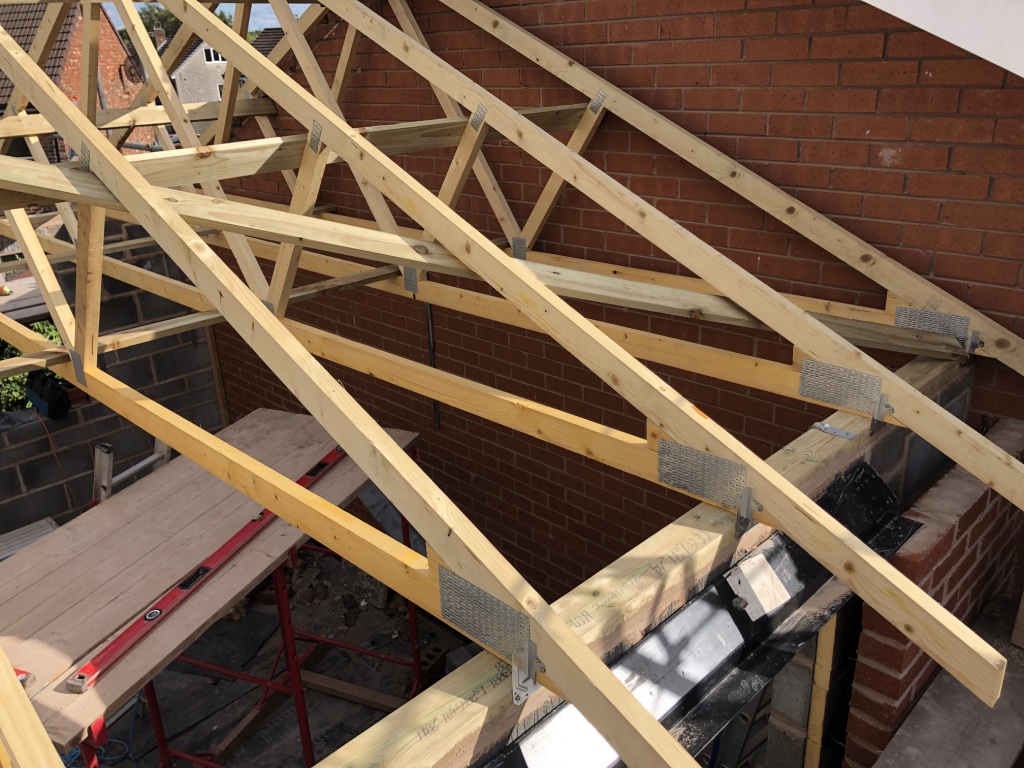

    I am currently installing my roof trusses and I just wanted to check my diagonal bracing as I'm not sure i've got it correct.

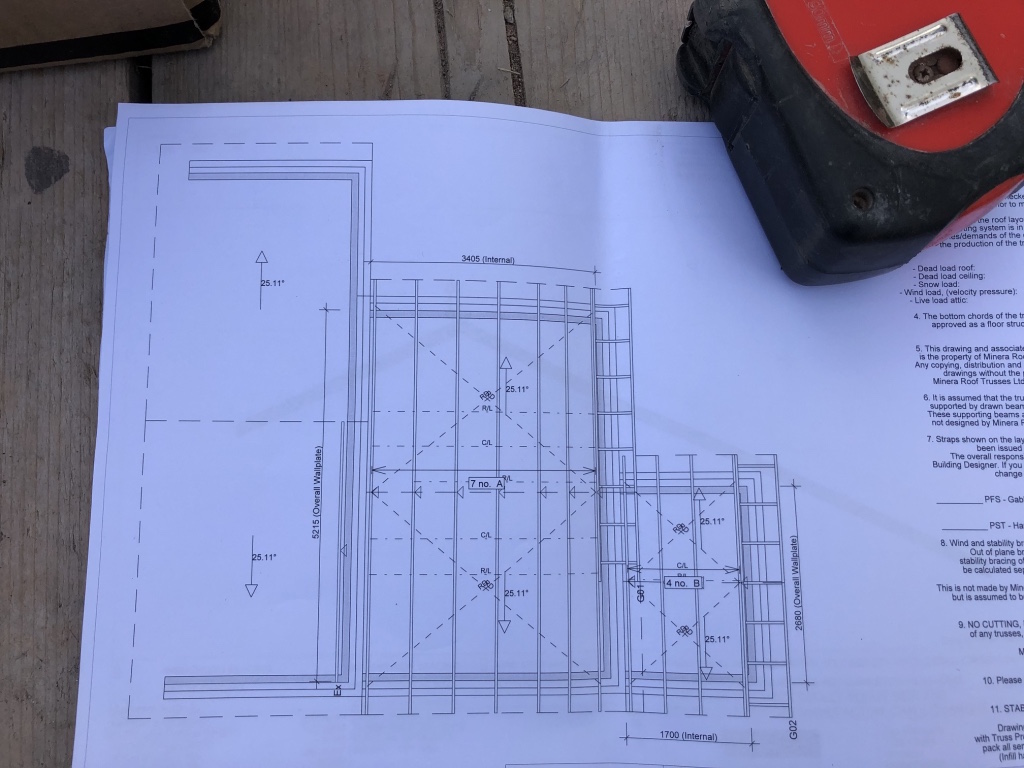

    Am I missing something here as the diagonal brace doesn't appear to sit nice at the wall plate? Only done one side at the minute. I think my drawings show diagonal bracing crossing over in the middle so I think i need to run another brace from the current house to opposing corner too (so like a cross brace)!

    thumb_IMG_8410_1024.jpg thumb_IMG_8411_1024.jpg thumb_IMG_8412_1024.jpg thumb_IMG_8413_1024.jpg thumb_IMG_8414_1024.jpg thumb_IMG_8415_1024.jpg thumb_IMG_8416_1024.jpg thumb_IMG_8417_1024.jpg

  2. Sponsored Links
  3. acurachris

    acurachris

    Joined:
    19 Jan 2006
    Messages:
    315
    Thanks Received:
    64
    Location:
    Manchester
    Country:
    United Kingdom
  4. noseall

    noseall

    Joined:
    2 Feb 2006
    Messages:
    43,875
    Thanks Received:
    2,711
    Location:
    Staffordshire
    Country:
    United Kingdom
    We normally pack below the brace with additional timber fillets to counter any wobble.

    • Thanks Thanks x 1
  5. acurachris

    acurachris

    Joined:
    19 Jan 2006
    Messages:
    315
    Thanks Received:
    64
    Location:
    Manchester
    Country:
    United Kingdom

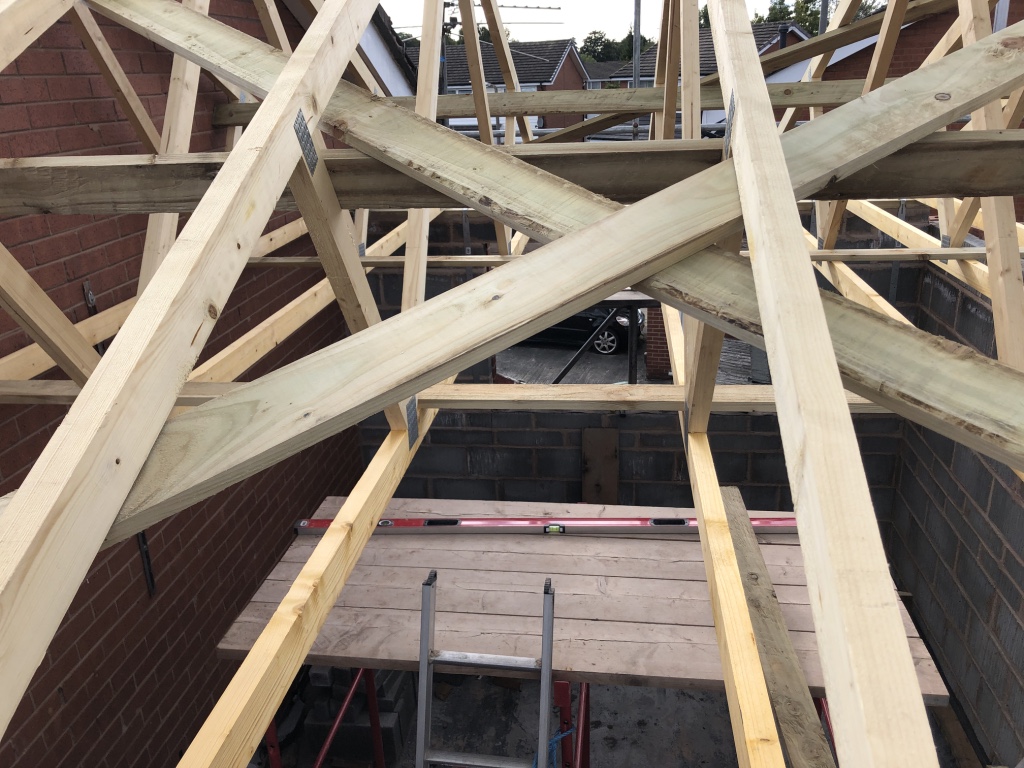

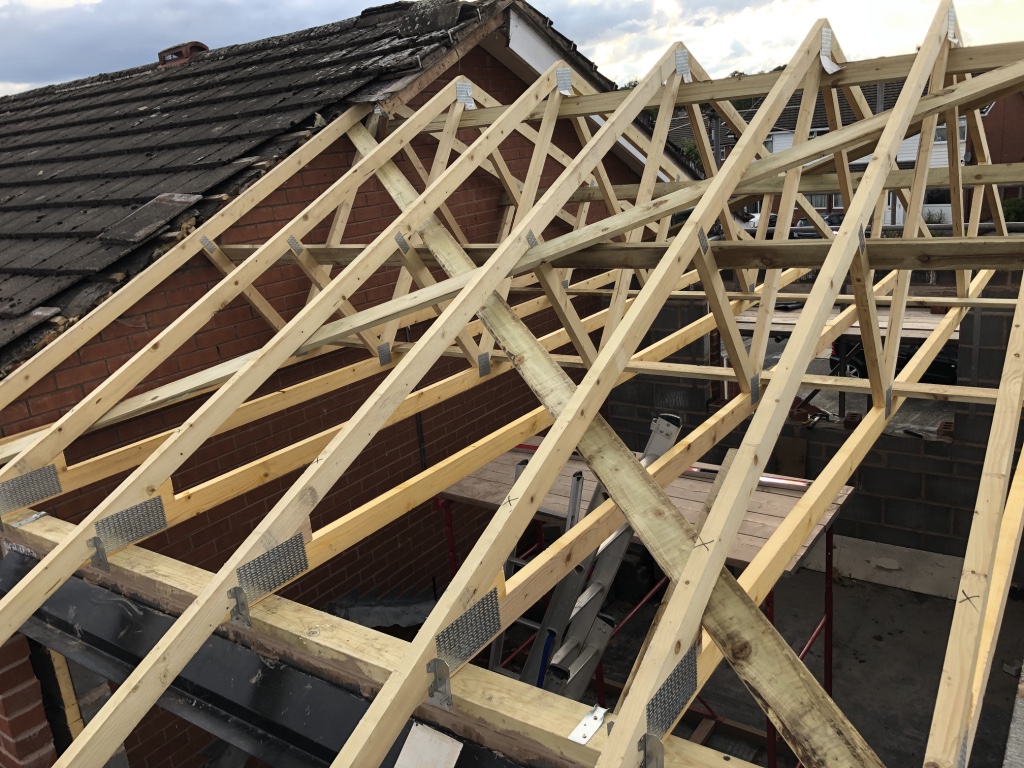

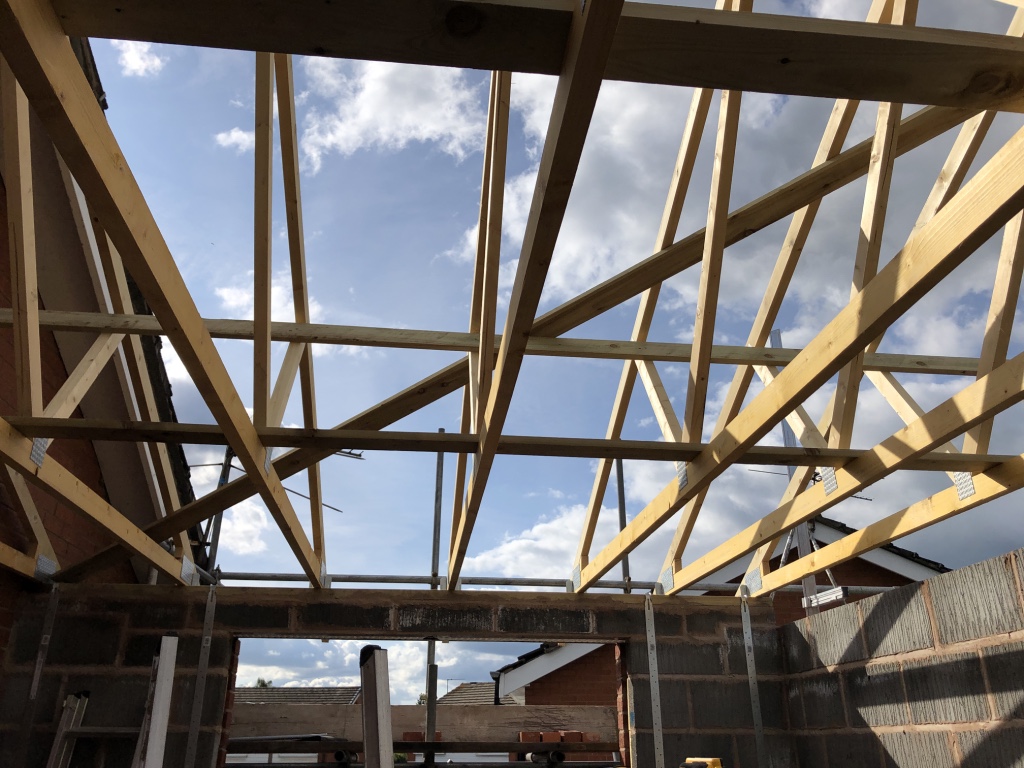

    Cheers Noseall, Is it correct how the brace just kinda sits in the corner then? I have cross braced this side now, is the cross section okay like that as one side overlaps the other? Can i just pack the gap between the brace and rafter?

    thumb_IMG_8420_1024.jpg thumb_IMG_8421_1024.jpg

  6. noseall

    noseall

    Joined:
    2 Feb 2006
    Messages:
    43,875
    Thanks Received:
    2,711
    Location:
    Staffordshire
    Country:
    United Kingdom
    It's either one direction or the other - not both!

  7. acurachris

    acurachris

    Joined:
    19 Jan 2006
    Messages:
    315
    Thanks Received:
    64
    Location:
    Manchester
    Country:
    United Kingdom
    Oh! :oops:

    When I look at the drawings though, it suggests a cross doesn't it? Is it not needed then?


  8. noseall

    noseall

    Joined:
    2 Feb 2006
    Messages:
    43,875
    Thanks Received:
    2,711
    Location:
    Staffordshire
    Country:
    United Kingdom
  9. noseall

    noseall

    Joined:
    2 Feb 2006
    Messages:
    43,875
    Thanks Received:
    2,711
    Location:
    Staffordshire
    Country:
    United Kingdom
    The drawing is showing what looks like alternative directions.

    • Thanks Thanks x 1
  10. Sponsored Links
  11. acurachris

    acurachris

    Joined:
    19 Jan 2006
    Messages:
    315
    Thanks Received:
    64
    Location:
    Manchester
    Country:
    United Kingdom
    Oh, that's confusing then, but that would make sense! :oops: Feel a bit of div now! :ROFLMAO:

    I spent ages trying to get those cross members in, thought they were hard to install!

    Any problem leaving them in, or should I remove them?

  12. 23vc

    23vc

    Joined:
    17 Apr 2015
    Messages:
    2,526
    Thanks Received:
    399
    Location:
    Warwickshire
    Country:
    United Kingdom
    Same issue on mine. It’s both ways, see “narrow fronted roof” diagram on the bottom right of page 2 of this, complete with crossover detail: https://roof-trusses.co.uk/wp-conte...e_duo_pitched_roofs-cheshire-roof-trusses.pdf

    I don’t doubt that the crossover thing is probably overkill and if it’s good enough for nosealls roofs it’s good enough for me, but I think you were on the right lines originally Chris.

    • Thanks Thanks x 1
  13. acurachris

    acurachris

    Joined:
    19 Jan 2006
    Messages:
    315
    Thanks Received:
    64
    Location:
    Manchester
    Country:
    United Kingdom
    Yeah, I was looking at the "narrow fronted roof" as mine is 3.7 front and 5.6 depth. Having seen another diagram it might be for detached roofs. I dunno! :unsure:

    Did you cross brace yours? Did you use the splice as suggested in the diagram? I looked but couldn't find a 600mm splice anyway, only 300mm!

    Were building control okay with yours? I can take the second braces out no problem, but now they're in i'm thinking of just leaving them. Truss company sent enough wood.

  14. 23vc

    23vc

    Joined:
    17 Apr 2015
    Messages:
    2,526
    Thanks Received:
    399
    Location:
    Warwickshire
    Country:
    United Kingdom
    Yeah, I crossed braced mine, did some kind of splice with the same bracing timber I think. BCO looked at the roof for all of about 5 seconds, so I’m not sure how much he’d have picked up for this kind of detail. I’m sure I had a thread about it on here at the time, can’t find it tho.

    • Thanks Thanks x 1
  15. acurachris

    acurachris

    Joined:
    19 Jan 2006
    Messages:
    315
    Thanks Received:
    64
    Location:
    Manchester
    Country:
    United Kingdom
    I just found that thread. Cheers.

  16. The drawing is wrong, it doesn't need cross bracing like that, a diagonal brace on each side of the ridge, depending on the length of the roof.
