Mercury contactor

Joined
31 Mar 2006
Messages
20,009
Reaction score
1,383
Location
Leeds
Country
United Kingdom

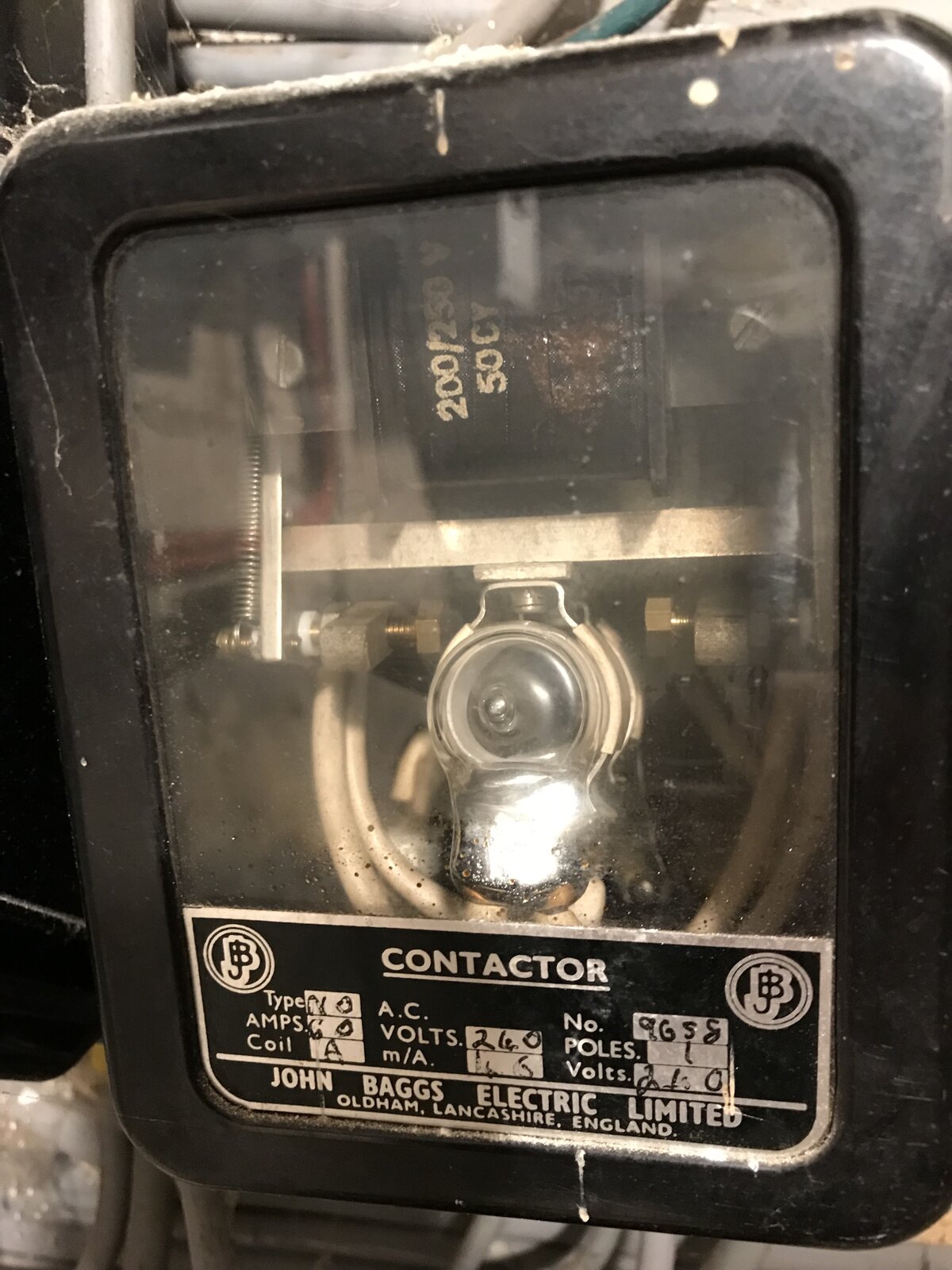

I spotted one of these out in the wild today. Still in service and working perfectly switching a bank of night storage heaters. Don’t see very many of them these days.


Sponsored Links
Joined
11 Jan 2004
Messages
39,724
Reaction score
2,017
Country
United Kingdom
Only ever seen one of those before in the flesh. In my first year of working as an apprentice, 1983!

Joined
28 Jul 2009
Messages
7,534
Reaction score
728
Location
Kent
Country
United Kingdom
Weused to have a few mercury relays in the rectifiers at work. the leads had a series of ceramic beads on the bare multistranded leads.

Joined
3 Nov 2006
Messages
27,277
Reaction score
3,001
Location
Bedfordshire
Country
United Kingdom
The old GPO used mercury relays to switch mains voltage with the telephone's ringing current, Often used in the old police boxes to switch the lamp on the top of the box when control room wanted to contact the officer on the beat. ( Remember those days ? )

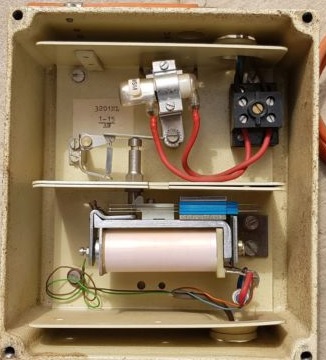

GPO relay box 230 volt mercury.jpg



I got involved with one of these three phase to DC rectifiers at a hospital laundry. ( not this actual beast ) when I learnt the hazard of working with mercury.


Sponsored Links
Joined
28 Jul 2009
Messages
7,534
Reaction score
728
Location
Kent
Country
United Kingdom
Ahh those were the da...

Actually thank heavens we've moved on:)

Joined
18 Jul 2004
Messages
8,518
Reaction score
406
Location
Devon
Country
United Kingdom
I know a site still using mercury relays.

24v DC fire alarm bells through out a factory. Many of the bells have a mercury relay adjacent, switching a 240v klaxon sounder.

If there’s no 230v power, the factory is silent, so bells only is acceptable.


JBR

Joined
9 Jan 2007
Messages
9,220
Reaction score
1,752
Location
Cheshire
Country
United Kingdom
I got involved with one of these three phase to DC rectifiers at a hospital laundry. ( not this actual beast ) when I learnt the hazard of working with mercury.

Would that be a similar thing to a Nevitron mercury arc rectifier?
I once saw one in use at a brewery of all places and, at the time, had no idea what the hell it was - although I was very impressed with all the blue sparks!
I believe they may have been used for X-ray machines in the Stone Age, long before my time as a radiographer, I assume to convert AC or three-phase to DC at high voltage (up to 150kV) at the X-ray tube.

Joined
3 Nov 2006
Messages
27,277
Reaction score
3,001
Location
Bedfordshire
Country
United Kingdom
Would that be a similar thing to a Nevitron mercury arc rectifier?

Yes, being pedantic they are mercury vapour rectifiers as there was no arc once they had been started. The arc was created by an springy electrode that was pulled down to dip into the pool of mercury to create a spark to vapourise some of the mercury. A plasma discharge then continued to maintain the vapour.

They were used to provide the 660 volt DC traction supply for London Underground,


JBR

Joined
9 Jan 2007
Messages
9,220
Reaction score
1,752
Location
Cheshire
Country
United Kingdom
Yes, being pedantic they are mercury vapour rectifiers as there was no arc once they had been started. The arc was created by an springy electrode that was pulled down to dip into the pool of mercury to create a spark to vapourise some of the mercury. A plasma discharge then continued to maintain the vapour.

They were used to provide the 660 volt DC traction supply for London Underground,
Thank you.

Yes, I may have been mistaken and, rather than seeing blue sparks (at the brewery), it might have been plasma.

I'm not too sure about providing 150kV DC for X-ray machines, though, as I read elsewhere that they were not used for such high voltages (or perhaps they were).
I wonder whether that might have yet been possible though, as the current across an X-ray tube would be only milliamps and even then only for a fraction of a second.

Joined
3 Nov 2006
Messages
27,277
Reaction score
3,001
Location
Bedfordshire
Country
United Kingdom
rather than seeing blue sparks

Very often the "dipper" would continue to dip into the pool for some reason. Maybe in the current was too low to keep the plasma running.

Low time ago and memory has failed on the exact way they worked.
