New light fitting

Discussion in 'Electrics UK' started by Robertr6500, 15 Mar 2014.

  1. Robertr6500

    Robertr6500

    Joined:
    12 Feb 2014
    Messages:
    11
    Thanks Received:
    0
    Country:
    United Kingdom

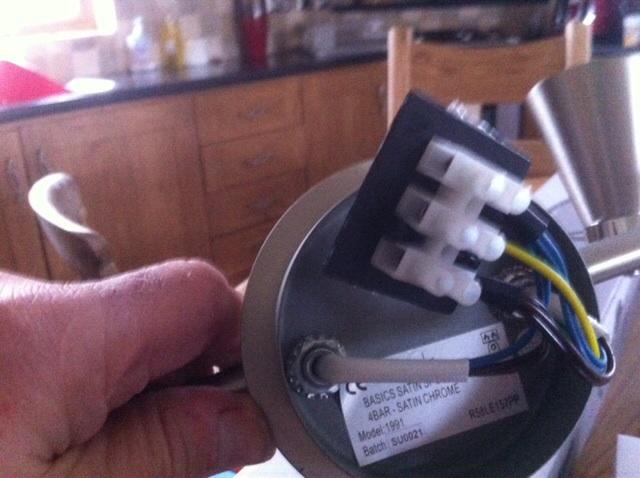

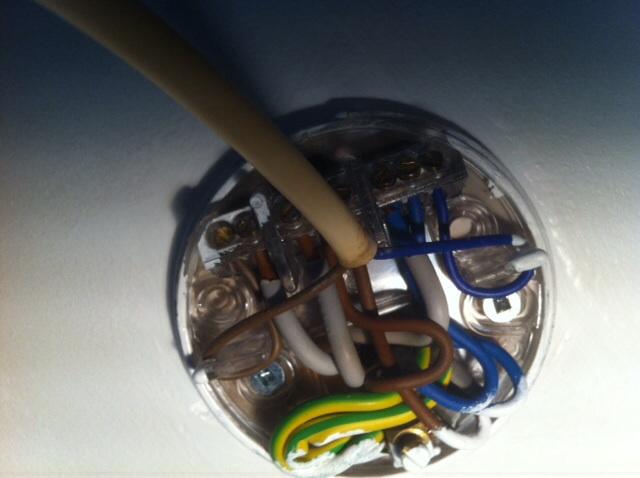

    Hi guys would appreciate a bit of advice as to how to wire a new light. As you can see in the pictures the new light only has three terminals, so would like your help with which wires to put where, I know the photo isn't great but would appreciate any help thanks in advance

  2. Sponsored Links
  3. Taylortwocities

    Taylortwocities

    Joined:
    28 Jul 2006
    Messages:
    20,133
    Thanks Received:
    2,072
    Location:
    Oxfordshire
    Country:
    United Kingdom
    [yawn]

    When you got to this site, did you not see the WIKI.??
    It says, CHECK HERE FIRST

    It tells you 95% of the answers.

    Let me help you (a bit). Its in the section marked LIGHTING

    oh, here you are http://www.diynot.com/wiki/Electrics:Lighting-Rose
    [/yawn]

  4. flyingsparks

    flyingsparks

    Joined:
    27 Sep 2004
    Messages:
    1,300
    Thanks Received:
    82
    Country:
    United Kingdom
    Excuse TTC's rudeness, we are not all like that. (Thinking about it, has anyone seen BAS recently, I haven't?) But, yes most of your questions can probably be found by reading through the wiki. If you get stuck, come back and one of us will help you. :D

  5. sparkwright

    sparkwright

    Joined:
    20 Aug 2009
    Messages:
    8,290
    Thanks Received:
    1,030
    Location:
    Dorset
    Country:
    United Kingdom
    I assumed he died, but he seems to dominate the Building Forum now.

  6. JohnW2

    JohnW2

    Joined:
    28 Jan 2011
    Messages:
    46,890
    Thanks Received:
    3,046
    Location:
    Buckinghamshire
    Country:
    United Kingdom
    Indeed - but, with only a few exceptions, seemingly displaying a personality which few of us would recognise as belonging to the same person who we 'knew and loved' in this forum. Only time will tell whether that will be a lasting situation, or whether his absence from here is temporary or permanent.

    Kind Regards, John

  7. Greenie9657

    Greenie9657

    Joined:
    25 Oct 2012
    Messages:
    493
    Thanks Received:
    11
    Location:
    Dorset
    Country:
    United Kingdom
    Hi Robert

    If you think about it, the live you have for the light fitting is required to turn the light on, so that needs to be the switched live from the switch. With me? The earth and neutral are self explanatory.

    Use terminal block or wago connectors to gang all the lives together, just make sure the one coming back from the switch goes to the lamp fitting. If you get it wrong the light will just stay on.

    Any more snags feel free to give us a shout.

    • Thanks Thanks x 1
  8. Sponsored Links
  9. Robertr6500

    Robertr6500

    Joined:
    12 Feb 2014
    Messages:
    11
    Thanks Received:
    0
    Country:
    United Kingdom
    Thanks greenie that makes it much clearer

  10. Taylortwocities

    Taylortwocities

    Joined:
    28 Jul 2006
    Messages:
    20,133
    Thanks Received:
    2,072
    Location:
    Oxfordshire
    Country:
    United Kingdom
    Or the fuse will blow, or other lights in the house will not work any more

  11. PrenticeBoyofDerry

    PrenticeBoyofDerry

    Joined:
    30 Jun 2009
    Messages:
    21,628
    Thanks Received:
    2,383
    Location:
    Londonderry
    Country:
    United Kingdom
    What you have is a looped in live(these are cables terminated at the central block on the ceiling rose) but the new fitting has not supplied a spare for this.
    So you require to form this loop-in live yourself, this can be done by using a connector, there many differing types available, but you should only require something that can carry 5 Amps.
    This can then be used to connect all the live loop cables together.
    So if you imagine it as four terminal positions rather than three, you would have something like this:


  12. Greenie9657

    Greenie9657

    Joined:
    25 Oct 2012
    Messages:
    493
    Thanks Received:
    11
    Location:
    Dorset
    Country:
    United Kingdom
    Good point. I ment if the lives were mixed up though. Earths and neutrals shouldn't be a problem, especially for someone attempting this work in the first place. Must have an idea about electrics anyway.

  13. PrenticeBoyofDerry

    PrenticeBoyofDerry

    Joined:
    30 Jun 2009
    Messages:
    21,628
    Thanks Received:
    2,383
    Location:
    Londonderry
    Country:
    United Kingdom
    That is the main problem, most attempting this kind of work don't have an idea on how lighting circuits work, once they come across more than the standard three conductors, they are puzzled!
    At least Robertr6500, did not schoolboy error, by disconnecting all the conductors prior to seeking advice.

  14. ldoodle

    ldoodle

    Joined:
    12 Apr 2010
    Messages:
    591
    Thanks Received:
    7
    Location:
    Kent
    Country:
    United Kingdom
    I've never understood this. If you have a 6 amp MCB how does a 5 amp connector block become suitable?

    Surely you need a connector block able to carry more than 6 amps, i.e. the next size is 15 amp.

    PS: Having just changed the lights in my house, the design of modern fittings is terrible - the mount is so small there is not a lot of room to neatly fold up all the cables! More often than not you have a 4-way connector block housing the loop live, switch live, earth and neutral. Then the light fitting itself has a connector block so you have 2 connector blocks to sort out!

    These would be ideal for lighting connections, but there's not enough room:

    http://www.tlc-direct.co.uk/Images/Products/size_3/TLCT100C.JPG
