One Pipe System?

Discussion in 'Plumbing and Central Heating' started by leakydave, 29 Jun 2011.

  1. leakydave

    leakydave

    Joined:
    2 Nov 2005
    Messages:
    959
    Thanks Received:
    102
    Location:
    Gloucestershire
    Country:
    United Kingdom

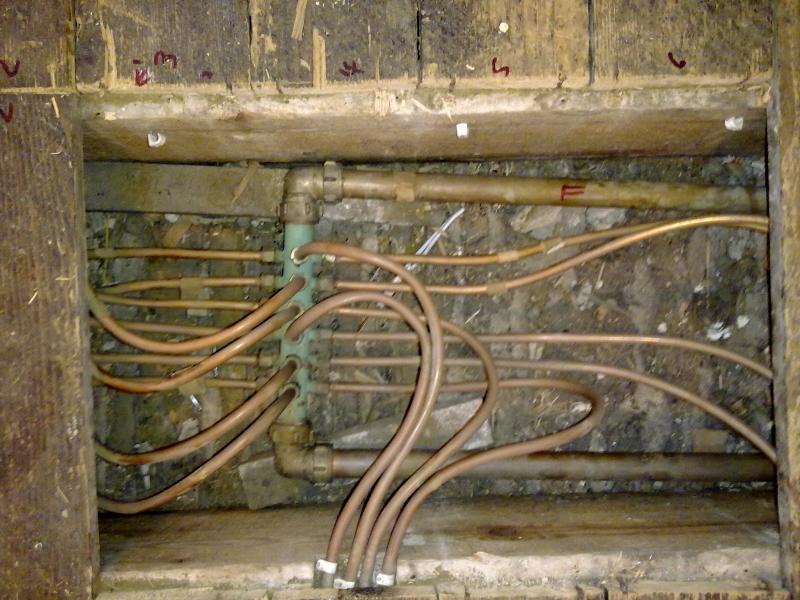

    A customer has complained of poor heating performance at several radiators, especially at the extremeties of the house. I took up some floor boards today and found this:

    Am I right in thinking this is a manifold for a single pipe system in 10mm copper? There doesnt seem to be any pattern to flow and return pipes so I don't think one part of the manifold is flow and another part return.

    Any further input from you guys?

  2. Sponsored Links
  3. mickyg

    mickyg

    Joined:
    24 Aug 2005
    Messages:
    16,007
    Thanks Received:
    3,325
    Location:
    Cornwall
    Country:
    United Kingdom
    there may be a divide in the middle. See if you can trace 2 pipes back from one radiator to the manifold. May find one goes in one end one the other. Either way if things are not working it might just be worth cutting it out and seeing if its blocked up.

  4. Norcon

    Norcon

    Joined:
    17 May 2008
    Messages:
    8,417
    Thanks Received:
    357
    Country:
    United Kingdom
    It's probably a two pipe system with baffles inside the manifold.
    So 9 sets of f&r.

  5. Charnwood

    Charnwood

    Joined:
    29 Apr 2011
    Messages:
    3,579
    Thanks Received:
    512
    Country:
    United Kingdom
    It looks like a Yorkshire WM18 Micrafold manifold which is normally blocked in the centre, giving 9 flow and 9 return connections.
    [​IMG]

  6. digdilem

    digdilem

    Joined:
    27 Dec 2010
    Messages:
    413
    Thanks Received:
    58
    Location:
    Devon
    Country:
    United Kingdom
    That is a beaut.

    Get a marker pen, turn on the heating and find out what gets hot first to establish which side(s) is feed, which return.

  7. leakydave

    leakydave

    Joined:
    2 Nov 2005
    Messages:
    959
    Thanks Received:
    102
    Location:
    Gloucestershire
    Country:
    United Kingdom
    Many thanks Guys for your input... it's going to save me a lot of pipe chopping for nothing... will investigate the non functioning rads and leave the manifold well alone!

    LD

  8. Nige F

    Nige F

    Joined:
    28 Jun 2005
    Messages:
    21,204
    Thanks Received:
    1,741
    Country:
    United Kingdom
    Might be sludged pipes to the offending rads - If you can`t strip and repipe them - try blasting each 1 @ a time with mains water. I did that , connected to main with JG speedfit - pipe to rad valve disconnected and held out a window ;)
