Require help identifying what these Siemens thermostat wires represent

Discussion in 'Plumbing and Central Heating' started by Mark Scurr, 2 Dec 2019.

  1. Mark Scurr

    Mark Scurr

    Joined:
    2 Dec 2019
    Messages:
    3
    Thanks Received:
    0
    Country:
    United Kingdom
    Hi there I am installing a new 3rd gen Nest Thermostate which is replacing our old siemens RDE100.1 wireless one.
    On the wall the old seimens is has connectors that fit into slot on the wall.
    I have no idea what the zones are so i can't find which slot they go into on the nest.
    Can anyone provide any advice :).

    Q14 is Black ( i think this is the central heating?)
    Q11 has a brown wire in.
    Q11 seems to also be connected to Q21 (nest doesn't need any wire connecting sockets apparently, so I can remove it?).
    Q24 is Grey.

    We have a Boiler, with water tank and central heating.
    Can anyone help me?

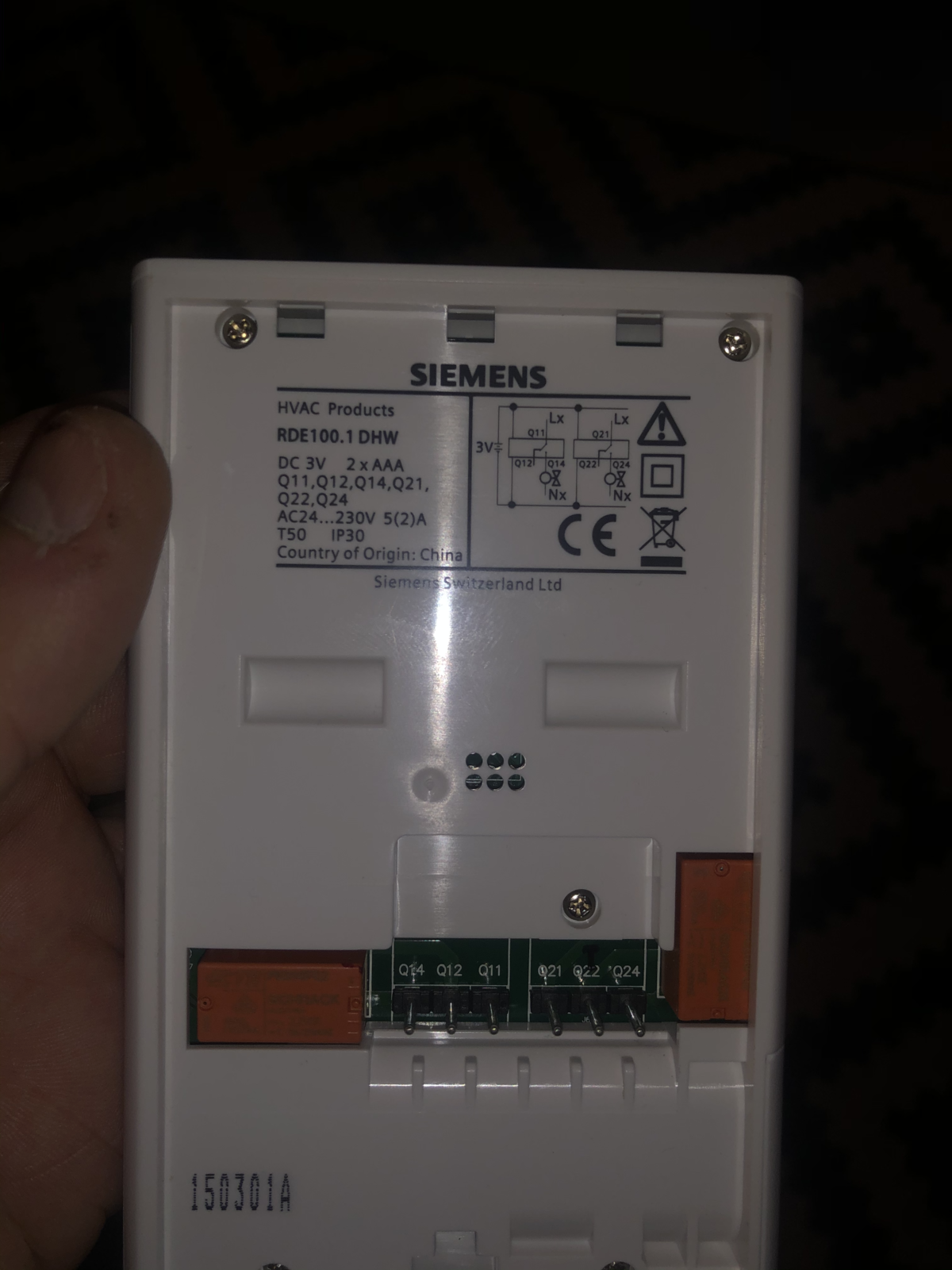

    I have attached two pictures. IMG_0089.JPG IMG_2232.png

  2. Sponsored Links
  3. Chris_W

    Chris_W

    Joined:
    26 Sep 2019
    Messages:
    3,015
    Thanks Received:
    807
    Location:
    North
    Country:
    United Kingdom
    11 and 21 are permanent lives, 14 and 24 are the switched lives, no neutrals are involved because it’s also battery powered. You need a permanent live and permanent neutral for your nest, long with switching wires.

  4. Mark Scurr

    Mark Scurr

    Joined:
    2 Dec 2019
    Messages:
    3
    Thanks Received:
    0
    Country:
    United Kingdom
    Screenshot 2019-12-02 at 21.59.38.png Thanks, just to add it will be plugged into the mains. so that will provide the power, live and neutral.
    just wasn't sure which wire goes into which slot on the nest.

  5. flameport

    flameport

    Joined:
    10 Mar 2007
    Messages:
    8,826
    Thanks Received:
    1,675
    Location:
    Poole, Dorset
    Country:
    United Kingdom

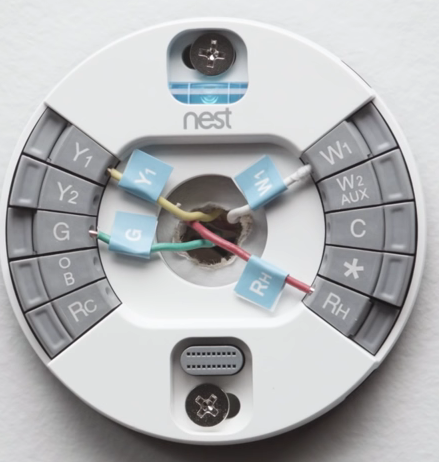

    That image is a Nest designed for and sold in North America. It isn't available in the UK and would be useless even if it was.

    The UK Nest has a separate box which requires mains power and connections to the control wires. Normally installed adjacent to the boiler or where other components are wired - not on the wall where the old thermostat was. The existing wiring to the Siemens thermostat is not suitable as there is no neutral.

  6. dilalio

    dilalio

    Joined:
    20 Mar 2009
    Messages:
    6,584
    Thanks Received:
    962
    Location:
    Potters Bar
    Country:
    United Kingdom
    RTrightFM! :LOL:

  7. Mark Scurr

    Mark Scurr

    Joined:
    2 Dec 2019
    Messages:
    3
    Thanks Received:
    0
    Country:
    United Kingdom
    thanks for the advice, had no idea the next we were looking at was US version! Will get an expert in to fit it! told it was a simple DIY job but i don't think it is!

  8. ianmcd

    ianmcd

    Joined:
    15 Aug 2010
    Messages:
    15,866
    Thanks Received:
    5,713
    Location:
    Lanarkshire
    Country:
    United Kingdom
    No point the US version will not work here, you need to send it back and get a UK version
