Cable for garage and workshop

Discussion in 'Electrics UK' started by Darren9571, 8 May 2021.

  1. Darren9571

    Darren9571

    Joined:
    21 Jun 2007
    Messages:
    48
    Thanks Received:
    2
    Location:
    Birmingham
    Country:
    United Kingdom
    Hi
    I have reviewed some previous posts but I am not sure of the size of SWA cable to use for a garage and workshop. I am only planning to put the cable under the floor before some laminate gets laid - I am yet to get planning permission for the garage - but thought I would save an awkward job later accessing the consumer unit.

    The run from the consumer unit will be 14m with most of that under the house and approx 3m underground. The garage/workshop will be running some big tools and ultimately there may be a car charger, so I am happy to over-engineer now just in case and providing that doesn't cause any issues. I thought 6mm or 10mm? Is there anything I need to consider about the cable?

    Thanks

  2. Sponsored Links
  3. AndyPRK

    AndyPRK

    Joined:
    4 Jan 2009
    Messages:
    5,853
    Thanks Received:
    589
    Location:
    Herefordshire
    Country:
    United Kingdom
    people often say there is little cost difference between 6 and 10mm ?
    may as well use 10

    • Like Like x 1
  4. flameport

    flameport

    Joined:
    10 Mar 2007
    Messages:
    9,817
    Thanks Received:
    1,962
    Location:
    Poole, Dorset
    Country:
    United Kingdom
    10mm² 3 core will cover most purposes.

    • Thanks Thanks x 1
  5. ericmark

    ericmark

    Joined:
    27 Jan 2008
    Messages:
    18,295
    Thanks Received:
    1,708
    Location:
    Llanfair Caereinion, Nr Welshpool
    Country:
    United Kingdom
    As @AndyPRK says, but some car chargers need to monitor the power used by rest of house and adjust what charge goes to car so as not cause the DNO fuse to fail, I don't fit electric car chargers, so maybe some one else can advise how the charge monitors total use and if any cables required.

    • Thanks Thanks x 1
  6. flameport

    flameport

    Joined:
    10 Mar 2007
    Messages:
    9,817
    Thanks Received:
    1,962
    Location:
    Poole, Dorset
    Country:
    United Kingdom
    Power monitoring can be wired, but plenty are wireless so no additional cables required.

    • Like Like x 1
  7. bernardgreen

    bernardgreen

    Joined:
    3 Nov 2006
    Messages:
    25,592
    Thanks Received:
    2,551
    Location:
    Bedfordshire
    Country:
    United Kingdom
    Install two ducts, one for the SWA to be pulled through and the second one for any other cables such as data, phone, alarm and car charger control cables.

    If the car charger so monitor consumption in the house and alters the charging rate then maybe a separate SWA cable supplying the car charger with the controlled charging current would make life easier.

    • Thanks Thanks x 1
  8. AndyPRK

    AndyPRK

    Joined:
    4 Jan 2009
    Messages:
    5,853
    Thanks Received:
    589
    Location:
    Herefordshire
    Country:
    United Kingdom
    you don't need 2 swa for car charger

  9. AndyPRK

    AndyPRK

    Joined:
    4 Jan 2009
    Messages:
    5,853
    Thanks Received:
    589
    Location:
    Herefordshire
    Country:
    United Kingdom
    maybe of interest


  10. Sponsored Links
  11. bernardgreen

    bernardgreen

    Joined:
    3 Nov 2006
    Messages:
    25,592
    Thanks Received:
    2,551
    Location:
    Bedfordshire
    Country:
    United Kingdom

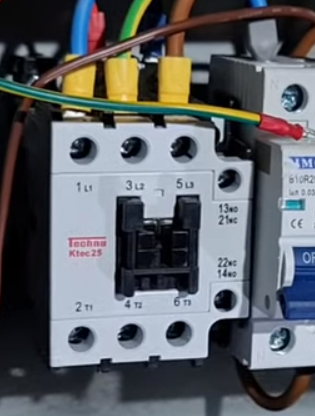

    Very interesting , why is an Earth conductor being switched by 3--4 in that Ktec25 contactor

  12. JohnW2

    JohnW2

    Joined:
    28 Jan 2011
    Messages:
    48,213
    Thanks Received:
    3,152
    Location:
    Buckinghamshire
    Country:
    United Kingdom
    I can think of reasons why one might want to switch an 'earth' conductor, but I don't think that BVS7671 would ever see eye-to-eye with such a practice, would it?

    Kind Regards, John

    • Thanks Thanks x 1
  13. AndyPRK

    AndyPRK

    Joined:
    4 Jan 2009
    Messages:
    5,853
    Thanks Received:
    589
    Location:
    Herefordshire
    Country:
    United Kingdom
    I think there is a worry that the electrical installation earth, isn't the same potential as the ground by the car. And under fault condtions isolates every conductor

  14. flameport

    flameport

    Joined:
    10 Mar 2007
    Messages:
    9,817
    Thanks Received:
    1,962
    Location:
    Poole, Dorset
    Country:
    United Kingdom

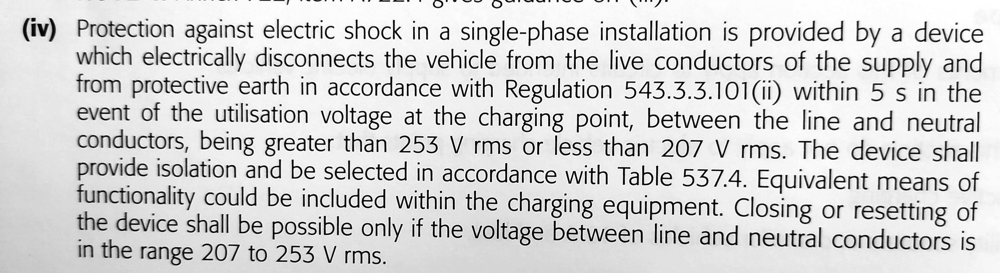

    CPC is disconnected as that device is designed to comply with 722.411.4.1.iv as above.
    As installed in the video it will only work if the armour of the cable hasn't been connected to anything at the charger end. If the armour is connected at both ends, the CPC is permanently connected via the metal case of the device which will bypass the contactor.

    Even if installed properly, those devices only detect some instances of open PEN conductors. They are not suitable for use as safety devices, they don't comply with the LVD, and should not be available for sale.

    BS7671 should not include descriptions of such things either, whether they are suitable for use or not.

    The whole of section 722 in BS7671 needs to be completely rewritten. As it is, an installation could comply with every detail of it, and yet still be unsafe.

    • Thanks Thanks x 1
  15. AndyPRK

    AndyPRK

    Joined:
    4 Jan 2009
    Messages:
    5,853
    Thanks Received:
    589
    Location:
    Herefordshire
    Country:
    United Kingdom


    At 4 mins they mention it I think


    Last edited: 8 May 2021
  16. JohnW2

    JohnW2

    Joined:
    28 Jan 2011
    Messages:
    48,213
    Thanks Received:
    3,152
    Location:
    Buckinghamshire
    Country:
    United Kingdom
    Interesting. I hadn't noticed (or remembered!) that and, in particular, not the reference to 543.3.3.101(ii), which says ...
    Do I take it that a device such as the one shown in that video would satisfy that requirement?

    Kind Regards, John

  17. flameport

    flameport

    Joined:
    10 Mar 2007
    Messages:
    9,817
    Thanks Received:
    1,962
    Location:
    Poole, Dorset
    Country:
    United Kingdom
    Very doubtful, it's an off the shelf cheapo contactor available anywhere.
    Proper specifications for it could not be found, including from the 'manufacturer' of the contactor.

Loading...
